HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) HA4118 BLADE SHAFT + BLADE PULLEY Parts Diagram

Lawn Tractor, Made in USA

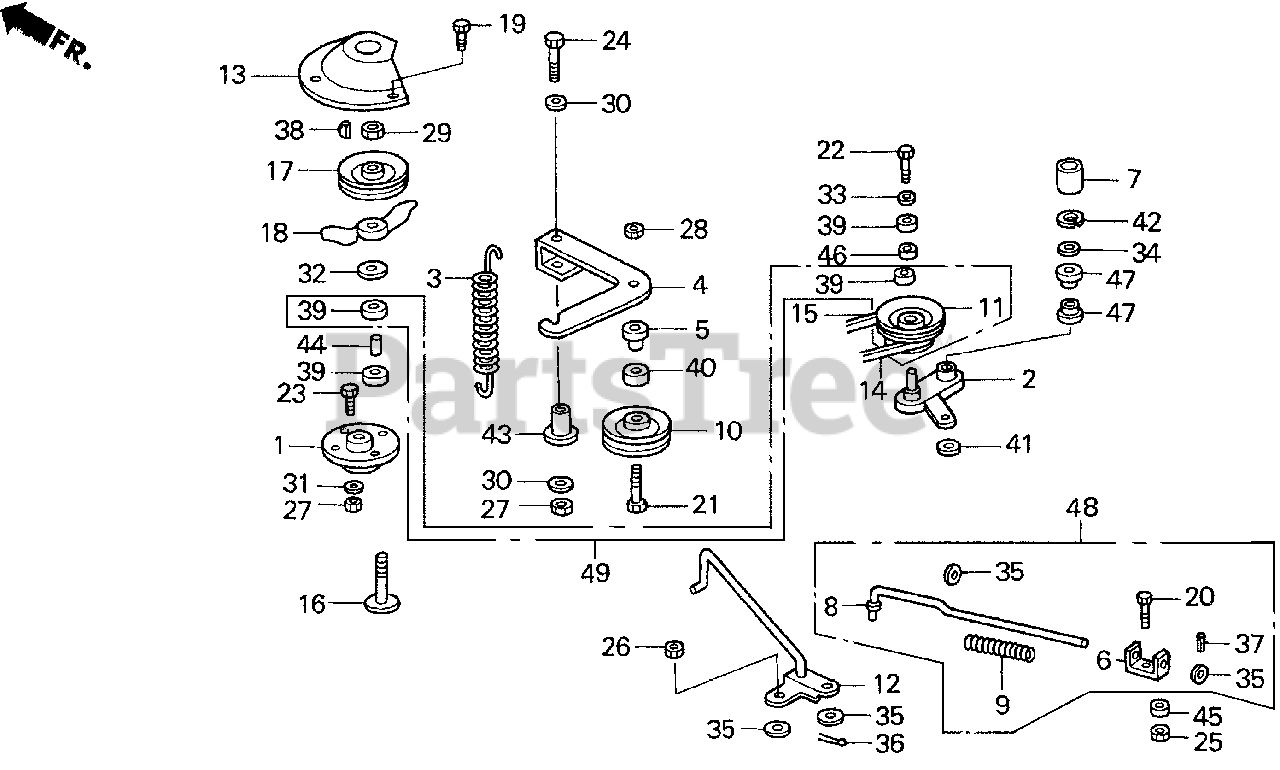

HA4118 BLADE SHAFT + BLADE PULLEY Parts Diagram

  • Title

1

Honda 72711-V09-A01

HOUSING, BEARING

$

$

Not available

2

Honda 76120-V09-A01

ARM, TENSION

$127.99

$

Usually ships in 3-6 days

0

3

Honda 76122-V09-A01

SPRING, TENSIONER ARM

$16.99

$

Usually ships in 3-6 days

0

4

Honda 76123-V09-A01

ARM, TENSION (DECK)

$31.99

$

Usually ships in 3-6 days

0

5

Honda 76124-V09-A01

COLLAR, TENSION ROLLER

$2.49

$

Usually ships in 3-6 days

0

6

Honda 76011-V09-A01

TENSIONER SET

$

$

Not available

7

Honda 76139-V09-D01

CAP, PIVOT

$9.49

$

Usually ships in 3-6 days

0

8

Honda 76128-V09-A01

ROD, TENSIONER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 76129-V09-A01

SPRING, TENSIONER

$

$

Currently unavailable

10

Honda 76130-V09-A01

ROLLER, TENSIONER

$69.99

$

Usually ships in 3-6 days

0

11

Honda 76140-V09-A01

SEE PART DETAILS - SUP; PULLEY, DRIVEN

$

$

Currently unavailable

12

Honda 76143-V09-A01

HANDLE, TENSION

$25.99

$

Usually ships in 3-6 days

0

13

Honda 76156-V09-A01

COVER, L. BELT

$95.99

$

Usually ships in 3-6 days

0

14

Honda 76181-V09-A01

V-BELT, BLADE

$57.99

$

Usually ships in 3-6 days

0

15

Honda 76182-V09-A01

V-BELT, DECK

$

$

Not available

16

Honda 76212-V09-A01

SHAFT, BLADE

$118.99

$

Usually ships in 3-6 days

0

17

Honda 76220-V09-A01

PULLEY, BLADE

$32.99

$

Usually ships in 3-6 days

0

18

Honda 76223-V09-A01

FAN, BLADE PULLEY

$5.99

$

Usually ships in 3-6 days

0

19

Honda 54010-V09-A01

SEE PART DETAILS - PRI; HEIGHT ADJUST SET

$

$

Not available

20

Honda 90101-V09-D01

BOLT, CARRIAGE (8X25)

Note: Use from Frame SN 6001210.

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90111-V09-A01

BOLT, HEX. (8X25)

Note: Use up to Frame SN 6001209.

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90122-V09-A01

BOLT, FLANGE (10X40)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90123-V09-A01

BOLT, FLANGE (10X20)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90125-V09-A01

BOLT, HEX. (8X30)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 90134-V09-A01

BOLT, HEX. (8X70)

$

$

Currently unavailable

25

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$2.49

$

In Stock, only 1 left!

0

26

Honda 90302-V09-A01

NUT A, LOCK (8MM)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90304-V09-A01

NUT B, LOCK (8MM)

$

$

Not available

28

Honda 90310-V09-A01

SEE PART DETAILS - PRI; NUT, LOCK (10MM)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 90315-V09-A01

NUT, LOCK (3/4"-16)

$8.49

$

Usually ships in 3-6 days

0

30

Honda 90522-V09-A01

WASHER, TENSIONER ARM

$1.49

$

Usually ships in 3-6 days

0

31

Honda 90523-V09-A01

WASHER, HOUSING MOUNT (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 90524-V09-A01

WASHER, SPINDLE

$

$

Not available

33

Honda 90525-V09-A01

WASHER, FLAT (11X34X3)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 90526-V09-A01

WASHER, FLAT (1.25")

$0.99

$

Usually ships in 3-6 days

0

35

Honda 90528-V09-A01

WASHER, FLAT (8.4X17X1.6)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 90760-V09-A01

PIN, DRAFT ARM COTTER

$0.99

$

Usually ships in 3-6 days

0

37

Honda 90762-V09-A01

PIN, SPRING

$0.99

$

Usually ships in 3-6 days

0

38

Honda 90763-V09-A01

KEY, WOODRUFF

$0.99

$

Usually ships in 3-6 days

0

39

Honda 91053-V09-A01

BEARING A, CUTTER DECK

$

$

Not available

40

Honda 91054-V09-A01

BEARING B, CUTTER DECK

$25.99

$

Usually ships in 3-6 days

0

41

Honda 91151-V09-A01

RETAINER, FRAME

$

$

Not available

42

Honda 91152-V09-A01

RETAINER

$4.49

$

Usually ships in 3-6 days

0

43

Honda 91554-V09-A01

BUSHING, IDLER PIVOT

$

$

Not available

44

Honda 91559-V09-A01

COLLAR, SPACER

$3.49

$

Usually ships in 3-6 days

0

45

Honda 91560-V09-A01

BUSHING, PIVOT IDLER

$

$

Not available

46

Honda 91562-V09-A01

COLLAR, DRIVEN PULLEY

$96.99

$

Usually ships in 3-6 days

0

47

Honda 91564-V09-A01

BUSHING, DRIVE

$5.49

$

In Stock, only 3 left!

0

48

Honda 76011-V09-A01

TENSIONER SET

$

$

Not available

49

Honda 76013-V09-A01

SEE PART DETAILS - PRI; PULLEY SET

$

$

Not available
