HA4120 H48A (MZCJ) - Honda Lawn Tractor, Made in USA (SN: MZCJ-6000001 - MZCJ-9999999) HA4120 CUTTER HOUSING Parts Diagram

Lawn Tractor, Made in USA

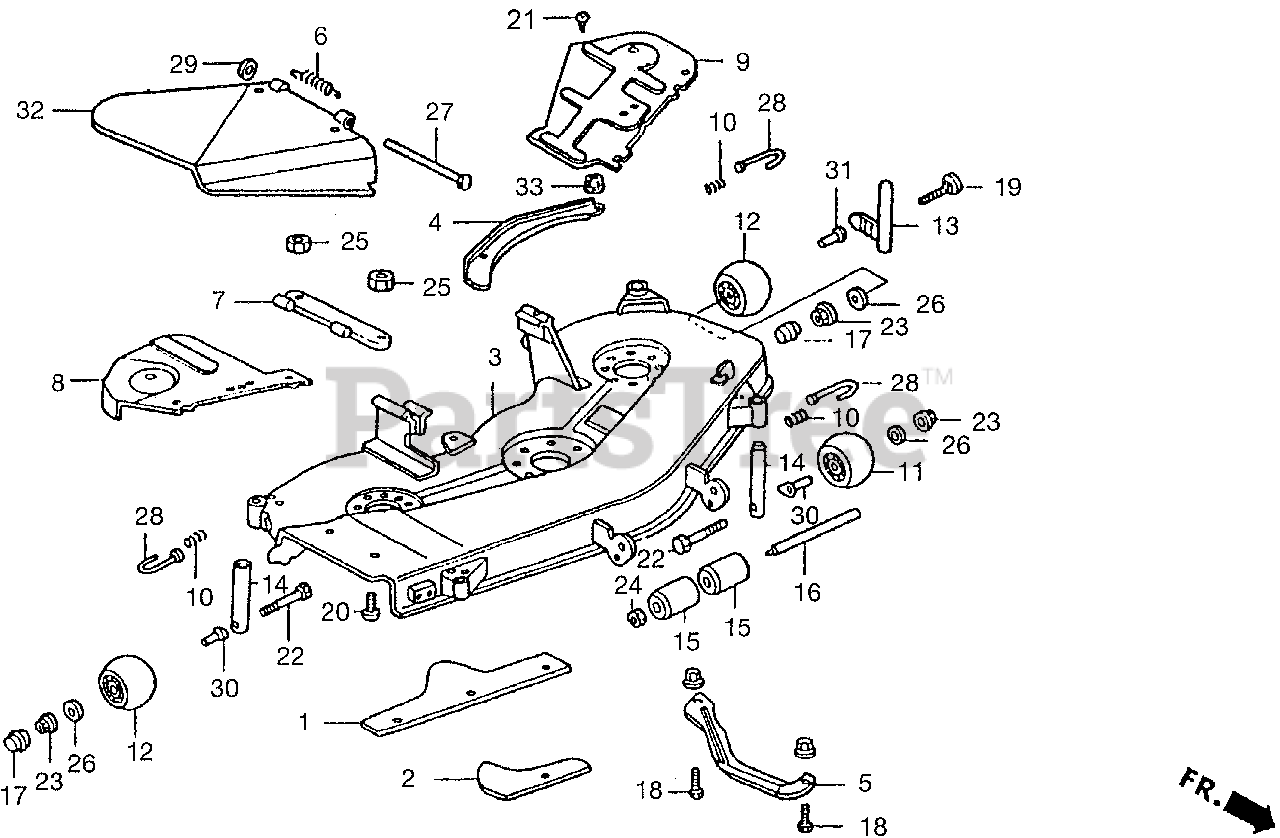

HA4120 CUTTER HOUSING Parts Diagram

  • Title

1

Honda 76023-V09-D01

BAFFLE, R. FR.

$35.99

$

Usually ships in 3-6 days

0

2

Honda 76024-V09-D01

BAFFLE, L. FR.

$

$

Not available

3

Honda 76110-V09-D01

HOUSING, CUTTER

$1350.99

$

Usually ships in 3-6 days

0

4

Honda 76113-V09-D01

PLATE, RR. HOUSING

$28.99

$

Usually ships in 3-6 days

0

5

Honda 76115-V09-D01

GUARD, HOUSING

$25.99

$

Usually ships in 3-6 days

0

6

Honda 76152-V09-D01

SPRING, DISCHARGE

$

$

Not available

7

Honda 76153-V09-D01

HINGE, DISCHARGE

$35.99

$

Usually ships in 3-6 days

0

8

Honda 76155-V09-D01

COVER, R. BELT

$

$

Not available

9

Honda 76156-V09-D01

COVER, L. BELT

$101.99

$

Usually ships in 3-6 days

0

10

Honda 76189-V09-D01

SPRING, RELEASE

$

$

Currently unavailable

11

Honda 76231-V09-D01

ROLLER, ANTI-SCALP

$

$

Not available

12

Honda 76232-V09-D01

ROLLER, GAUGE

$

$

Currently unavailable

13

Honda 76233-V09-D01

SHAFT, GAUGE ROLLER

$65.99

$

Usually ships in 3-6 days

0

14

Honda 76234-V09-D01

SHAFT, ANTI-SCALP

$23.99

$

Usually ships in 3-6 days

0

15

Honda 76236-V09-D01

ROLLER, CENTER

$18.99

$

Usually ships in 3-6 days

0

16

Honda 76237-V09-D01

SHAFT, ROLLER

$14.99

$

Usually ships in 3-6 days

0

17

Honda 76238-V09-D01

CAP, HUB

$

$

Not available

18

Honda 90105-V09-A01

BOLT, CARRIAGE (8X16)

$

$

Not available

19

Honda 90107-V09-D01

BOLT, CARRIAGE (8X70)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90108-V09-A01

BOLT, CARRIAGE (8X20)

$

$

Not available

21

Honda 90108-V09-D01

SCREW, DECK COVER

$

$

Currently unavailable

22

Honda 90109-V09-D01

BOLT, HEX. (8X90)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$2.49

$

In Stock, only 1 left!

0

24

90302-V09-D01

SEE PART DETAILS - SUP; NUT, LOCK (10MM)

Note: Use up to Frame SN 6101760.

$

$

Not available

24

Honda 90310-V09-A01

SEE PART DETAILS - PRI; NUT, LOCK (10MM)

Note: Use from Frame SN 6101761.

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90304-V09-A01

NUT B, LOCK (8MM)

$

$

Not available

26

Honda 90518-V09-A01

WASHER, SPECIAL HARDENED

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90751-V09-D01

PIN, CHUTE GUARD

$19.99

$

Usually ships in 3-6 days

0

28

Honda 90761-V09-A01

PIN, GAUGE WHEEL

$8.99

$

Usually ships in 3-6 days

0

29

Honda 91151-V09-A01

RETAINER, FRAME

$

$

Not available

30

Honda 91552-V09-A01

BUSHING, FLANGED

$

$

Not available

31

Honda 91561-V09-A01

BUSHING, CUTTER DECK

$

$

Not available

32

Honda 76151-V09-D01

ADAPTER, DISCHARGE (NA USE ALT:06814-V09-D01)

$

$

Currently unavailable

33

Honda 90304-V09-D01

NUT D, LOCK (8MM)

$3.99

$

Usually ships in 3-6 days

0
