HAC 150 E/CSA (UT-06051) - Homelite Air Compressor Exploded View Parts Diagram

Air Compressor

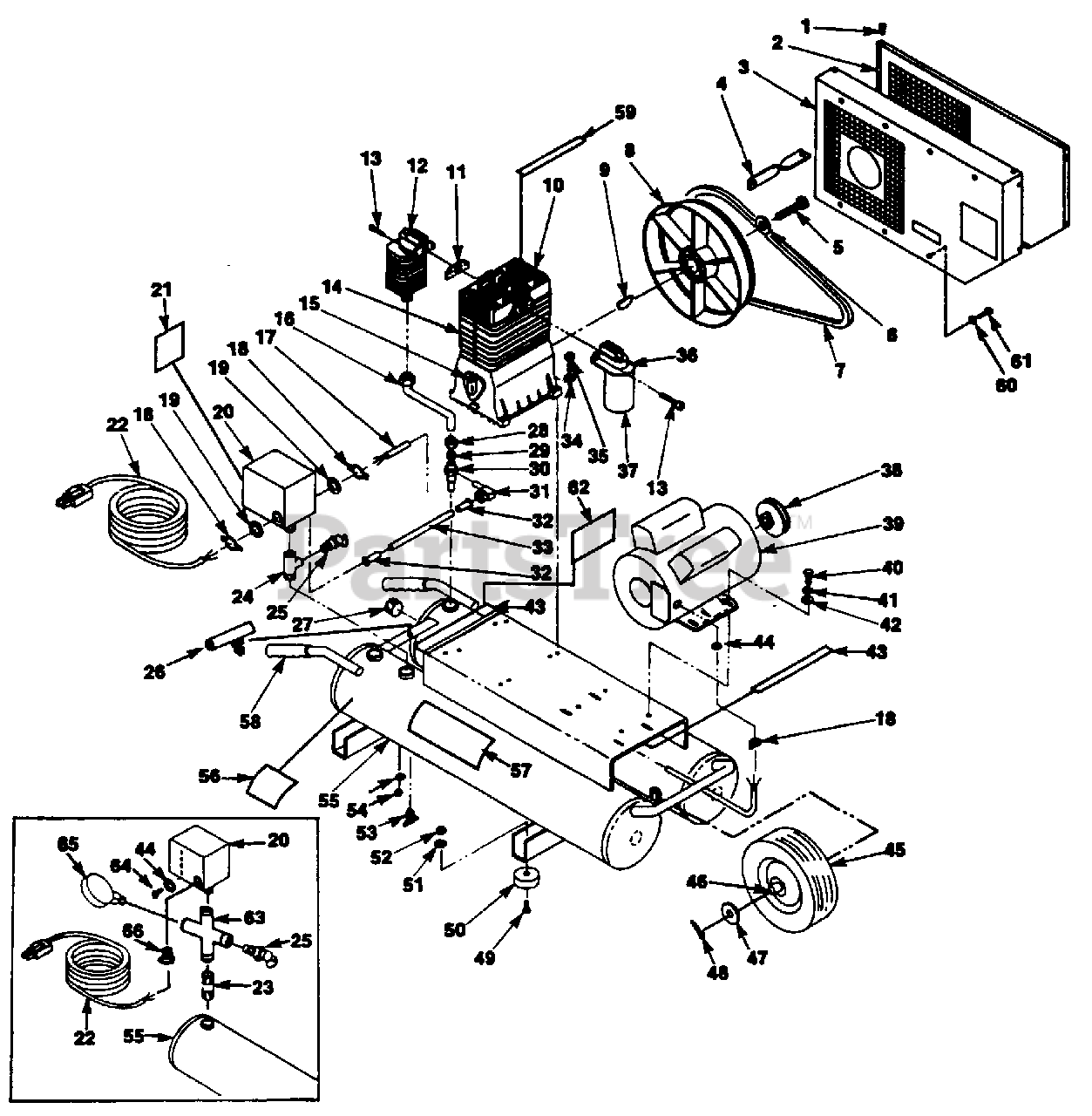

Exploded View Parts Diagram

  • Title

1

Homelite 0213609

$

$

Currently unavailable

2

Homelite 0213628

$

$

Currently unavailable

3

Homelite 0213629

$

$

Currently unavailable

4

Homelite 0213631

$

$

Currently unavailable

5

Homelite 0213672

$

$

Currently unavailable

6

Homelite 0213674

$

$

Currently unavailable

7

Homelite 0213630

VBELT

$55.99

$

Usually ships in 3-7 days

0

8

Homelite 0213673

$

$

Currently unavailable

9

Homelite 0213682

$

$

Currently unavailable

10

Homelite 0213658

$

$

Currently unavailable

11

Homelite 0213666

$

$

Currently unavailable

12

Homelite 0213678

$

$

Currently unavailable

13

Homelite 0213656

$

$

Currently unavailable

14

Homelite 0213677

$

$

Currently unavailable

15

Homelite 0213648

$

$

Currently unavailable

16

Homelite 0213603

$

$

Currently unavailable

17

Homelite 0213694

$

$

Currently unavailable

18

Homelite 0213691

$

$

Currently unavailable

20

Homelite 0213402

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

21

Homelite 0213471

$

$

Currently unavailable

22

Homelite 0213692

$

$

Currently unavailable

23

Homelite 0213510

$

$

Currently unavailable

25

Homelite 0213695

$

$

Currently unavailable

26

Homelite 0213685

$

$

Currently unavailable

27

Homelite 0213617

$

$

Currently unavailable

28

Homelite 0213442

$

$

Currently unavailable

29

Homelite 0213414

$

$

Currently unavailable

30

Homelite 0213447

$

$

Currently unavailable

31

Homelite 0213605

$

$

Currently unavailable

32

Homelite 0213425

$

$

Currently unavailable

33

Homelite 0213416

$

$

Currently unavailable

34

Homelite 84010

"WASHER, FLAT" TBO
(Superseded to PS84010)

$

$

Not available

35

Homelite JA400266

SCREW- Hex hd., cap (3/8-16 x 1 1/2")

$

$

Currently unavailable

36

Homelite 0213655

$

$

Currently unavailable

37

Homelite 0213652

$

$

Currently unavailable

38

Homelite 0213627

$

$

Currently unavailable

39

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropiate dealer in your area.

$

$

Not available

40

Homelite JA400182

NO LONGER AVAILABLE

$

$

Not available

41

Homelite 83002

WASHER
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

42

Homelite 840011

FLAT WASHER(HSD'S) TBO
(Superseded to UP07173)

$

$

Not available

43

Homelite 0213720

$

$

Currently unavailable

44

Homelite 0213484

$

$

Currently unavailable

45

Homelite 0213626

$

$

Currently unavailable

46

Homelite 0213615

$

$

Currently unavailable

47

Homelite 0213610

$

$

Currently unavailable

48

Homelite 0213613

$

$

Currently unavailable

49

Homelite 0213607

$

$

Currently unavailable

50

Homelite 0213428

$

$

Currently unavailable

51

Homelite 83009

WASHER, LOCK

$9.99

$

Usually ships in 3-7 days

0

52

Homelite 81053

NUT-(1/4-20)

$

$

Not available

53

Homelite 0213604

$

$

Currently unavailable

54

Homelite 0213689

$

$

Currently unavailable

55

Homelite 0213637

$

$

Currently unavailable

56

Homelite 0213469

$

$

Currently unavailable

57

Homelite 0213616

$

$

Currently unavailable

58

Homelite 0213601

$

$

Currently unavailable

59

Homelite 0213520

$

$

Currently unavailable

60

Homelite 0213608

$

$

Currently unavailable

61

Homelite 0213612

$

$

Currently unavailable

62

Homelite 0213524

$

$

Currently unavailable

63

Homelite 0213686

$

$

Currently unavailable

64

Homelite 0213483

$

$

Currently unavailable

65

Homelite 0213693

$

$

Currently unavailable

66

Homelite 0213690

$

$

Currently unavailable
