Handystik Lite - Weed Eater Cordless Trimmer Trimmer Assembly Parts Diagram

Cordless Trimmer

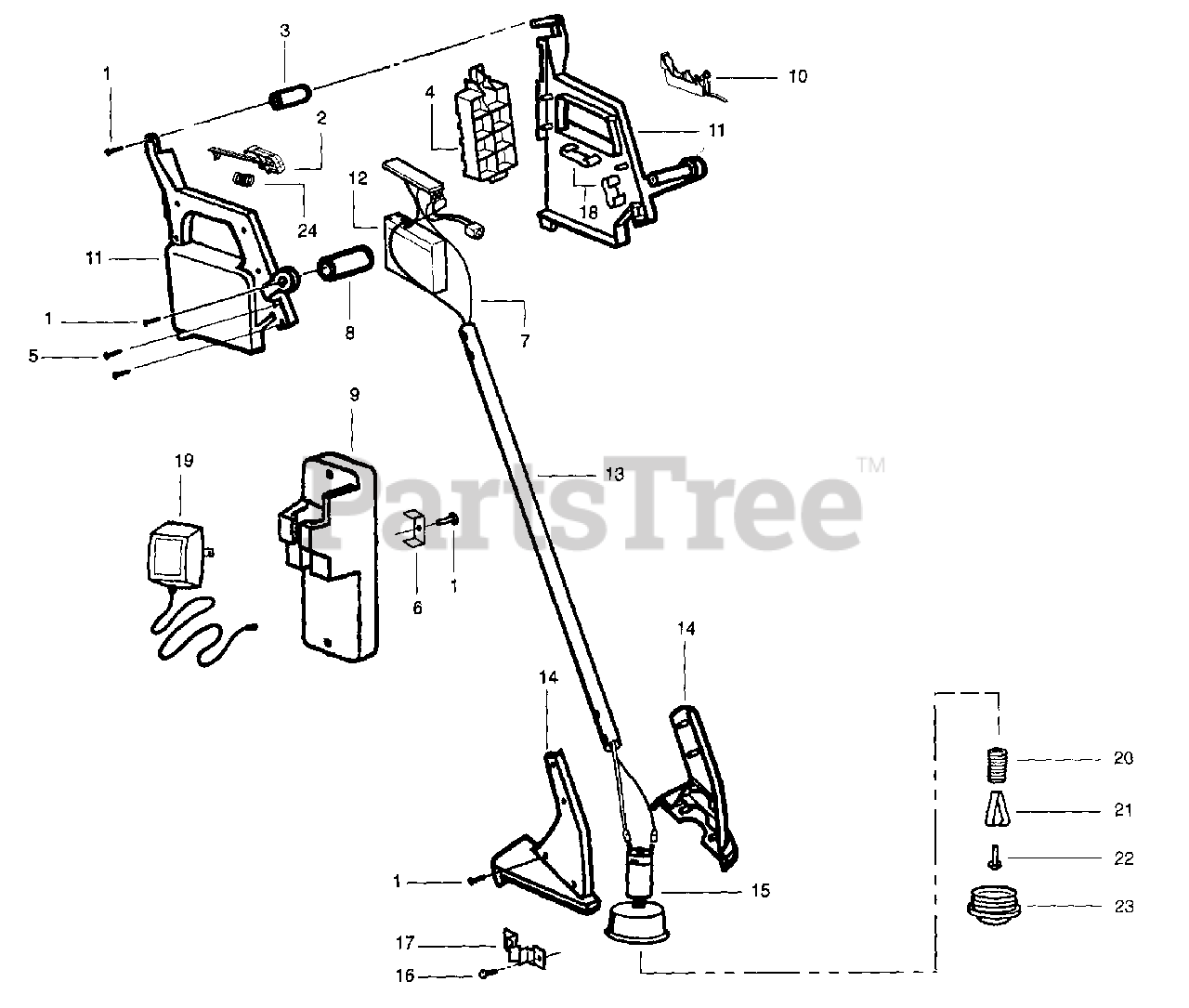

Trimmer Assembly Parts Diagram

  • Title

1

Poulan 530340179

Screw

$1.49

$

In Stock, Qty 8

0

2

Poulan 530403324

Trigger Lockout

$

$

Not available

3

Poulan 530403325

Wrist Support Cushion

$

$

Not available

4

Poulan 530403326

Battery Door

$

$

Not available

5

Poulan 530015994

Screw

$

$

Not available

6

Poulan 530403328

Probe - Clamp

$

$

Not available

7

Poulan 530403329

Wire Harness Ass'y.

$

$

Not available

8

Poulan 530403330

Assist Handle Cushion

$

$

Not available

9

Poulan 530403331

Wall Bracket

$

$

Not available

10

Poulan 530403332

Trigger Switch

$

$

Not available

11

Poulan 530403333

Battery Hsg. Set

$

$

Not available

12

Poulan 530053401

Battery

$

$

Not available

13

Poulan 530403335

Tube w/ Warning Decal

$

$

Not available

14

Poulan 530403336

Motor Hsg. Set w/ Line Limiter

$

$

Not available

15

Poulan 530403337

Motor/Hub Ass'y.

$

$

Not available

16

Poulan 530015775

Screw

$3.49

$

In Stock, only 2 left!

0

17

Poulan 530403338

Clamp - Motor

$

$

Not available

18

Poulan 530403329

Battery Spring

$

$

Not available

19

Poulan 530053405

Charger

$62.99

$

Usually ships in 3-10 days

0

20

Poulan 530403395

Spring

$

$

Not available

21

Poulan 530403010

Retainer Spring

$

$

Not available

22

Poulan 530401467

Screw w/Washer

$

$

Not available

23

Poulan 952711527

Spool w/Line

$

$

Not available

24

Poulan 530403443

Lockout Spring

$

$

Not available

Poulan 530084351

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530403470

Wall Anchor

Note: Not Shown

$

$

Not available

Poulan 530403471

Screw

Note: Not Shown

$

$

Not available

Poulan 530053399

Warning Decal

Note: Not Shown

$

$

Not available
