Handystik - Weed Eater Cordless Trimmer TRIMMER ASSEMBLY Parts Diagram

Cordless Trimmer

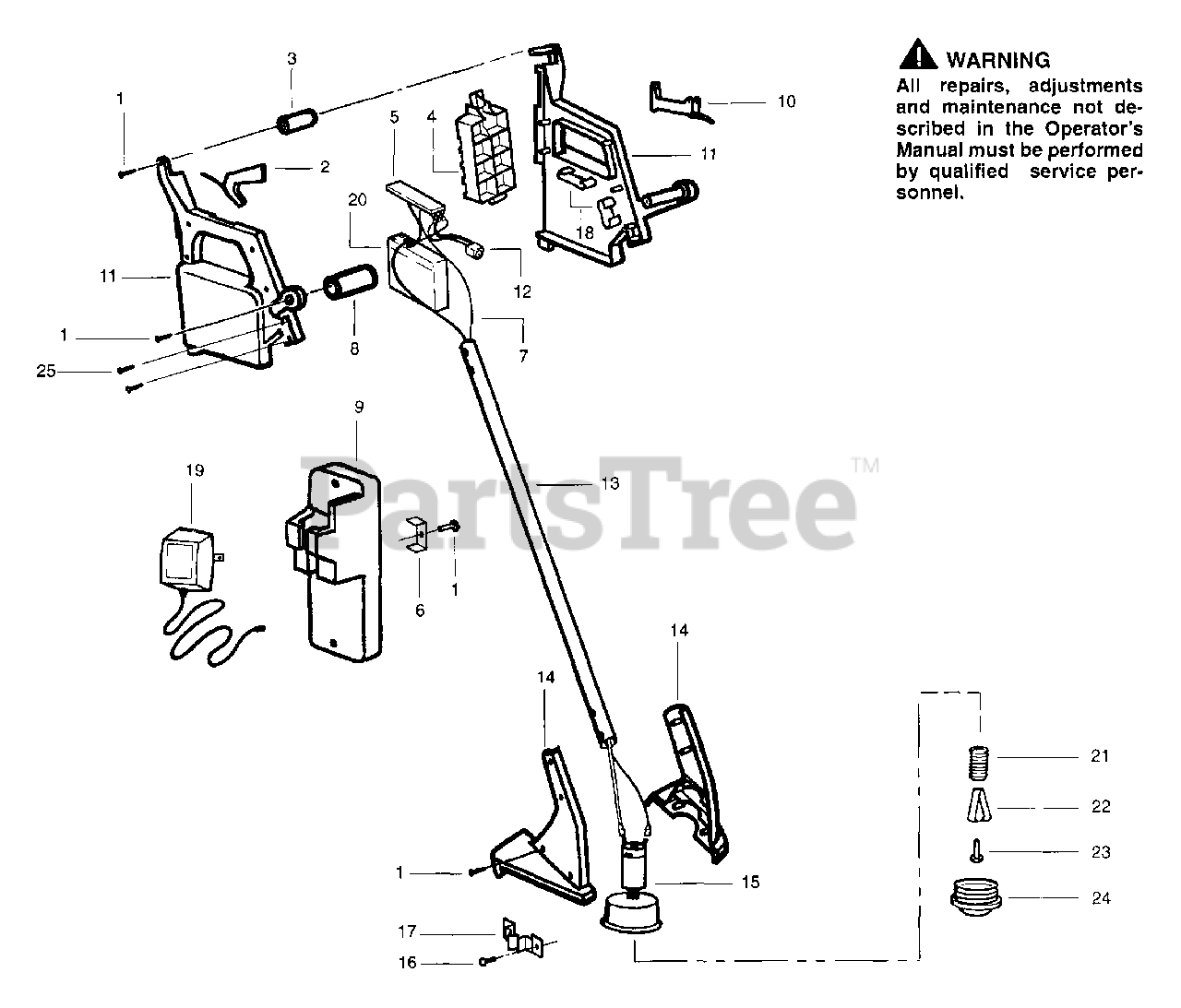

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530340179

Screw

$0.99

$

In Stock, Qty 8

0

2

Trigger Lock

$

$

Not available

2

Poulan 530037040

Trigger Lock
(Superseded to 530402931)

Note: Type 1 & Type 2

$

$

Not available

2

Poulan 530402931

Trigger Lock

Note: Type 3

$

$

Not available

3

Poulan 530401457

Wrist Support Cushion

$

$

Not available

4

Poulan 530401436

Battery Door

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530401581

Circuit Board Ass'y.

$21.99

$

Usually ships in 3-10 days

0

6

Poulan 530401485

Probe-Clamp

$0.99

$

Usually ships in 3-10 days

0

7

Poulan 530401807

Wire Ass'y. (Red)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 534101430

Assist Handle Cushion

$

$

Not available

9

Poulan 530401481

Hanging Bracket

$4.99

$

Usually ships in 3-10 days

0

10

Trigger Switch

$

$

Not available

10

Poulan 530400412

Trigger Switch
(Superseded to 530402856)

Note: Type 1 & Type 2

$3.99

$

In Stock, only 1 left!

0

10

Poulan 530402856

Trigger Switch

Note: Type 3

$3.99

$

In Stock, only 1 left!

0

11

Battery Hsg. Set

$

$

Not available

11

Poulan 530402267

Battery Hsg. Set

Note: Type 1 & Type 2

$

$

Not available

11

Poulan 530402837

Battery Hsg. Set

Note: Type 3

$

$

Not available

12

Poulan 530401479

Receptacle Ass'y.

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530401456

Tube w/ Warning Decal

$

$

Not available

14

Poulan 530401443

Motor Hsg Set w/ Line Limiter

$

$

Not available

15

Poulan 530401582

Motor/Hub Ass'y.
(Superseded to 530403337)

$

$

Not available

16

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

17

Poulan 530401460

Clamp-Motor

$0.99

$

Usually ships in 3-10 days

0

18

Poulan 530401452

Battery Spring

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530401480

Charger
(Superseded to 530053405)

$36.99

$

Usually ships in 3-10 days

0

20

Poulan 530402815

Battery Kit

$

$

Not available

21

Poulan 530401464

Spring

$

$

Not available

22

Poulan 530401466

Clip Retainer

$3.99

$

In Stock, Qty 10

0

23

Poulan 530401467

Screw w/Washer

$

$

Not available

24

Poulan 952711527

Spool w/Line

$

$

Not available

25

Poulan 530015994

Screw

$3.99

$

Usually ships in 3-10 days

0

Poulan 530084351

Operator Manual

Note: Not shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530401716

Wall Anchor

Note: Not shown

$1.49

$

Usually ships in 3-10 days

0

Poulan 530401487

Screw

Note: Not shown

$1.49

$

Usually ships in 3-10 days

0

Warning Decal

Note: Not shown

$

$

Not available

Poulan 530402292

Warning Decal

Note: Type 1 & Type 2. Not shown

$

$

Not available

Poulan 530402932

Warning Decal

Note: Type 3. Not shown

$

$

Not available
