HB 100 (UT-08018) - Homelite Blower Blower Parts Diagram

Blower

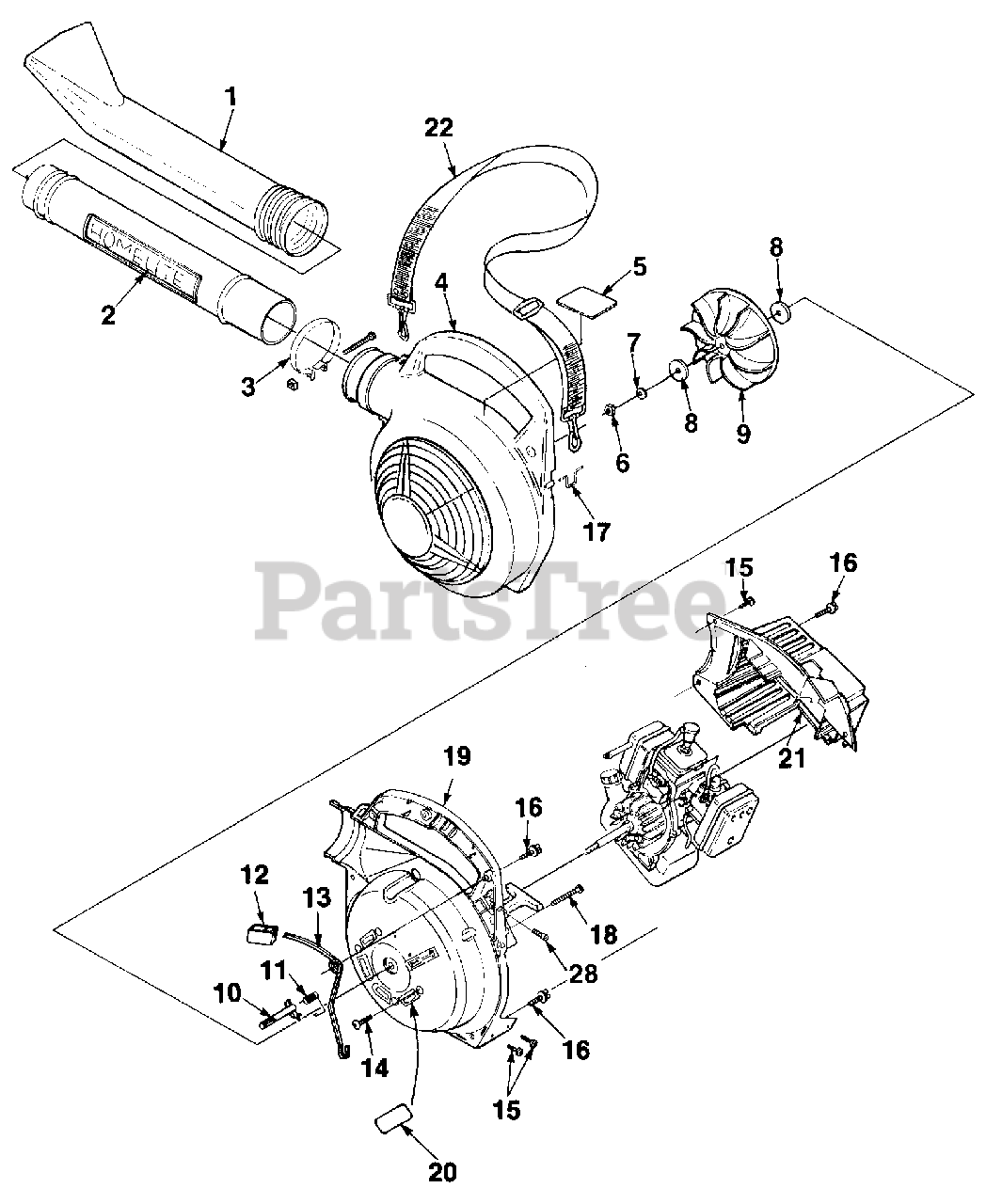

Blower Parts Diagram

  • Title

1

Homelite 00373

NOZZLE- Sweeper
(Superseded to 580556001)

$

$

Not available

2

Homelite A00399A

TUBE w/DECAL
(Superseded to UP04365)

$

$

Not available

3

Homelite 00433

CLAMP
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 01039

HOUSING- Volute (outer)
(Superseded to 984918001)

$

$

Not available

5

Homelite 00375

DECAL- Warning

$

$

Currently unavailable

6

Homelite 81117

NUT- Hex 5/16-24

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 70788

WASHER- Belleville #10
(Superseded to UP06837)

$

$

Not available

8

Homelite 00380

WASHER- Flat

$

$

Not available

9

Homelite 00318

FAN- Blower
(Superseded to 000998274)

$

$

Not available

10

Homelite 00368

LATCH- Throttle
(Superseded to 00368A)

$

$

Not available

11

Homelite 00370

SPRING- Throttle latch
(Superseded to 638075001)

$

$

Not available

12

Homelite 00367

TRIGGER- Throttle

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 00369

LEVER- Throttle
(Superseded to 00369A)

$

$

Not available

14

Homelite 82508

SCREW- Thd Forming

$

$

Currently unavailable

15

Homelite 82348

SCREW- Tapping pan #8 x 1/2
(Superseded to 82348A)

$

$

Not available

16

Homelite 70771

SCREW- Thd forming #10 x 3/4
(Superseded to UP03900)

$1.49

$

In Stock, Qty 6

0

17

Homelite 00398

LOOP- Wire

$

$

Not available

18

Homelite JA416903

SCREW- Hex hd. #10 x 15/8

$1.49

$

Usually ships in 3-7 days

0

19

Homelite A00814A

HOUSING- Volute (inner)

$

$

Currently unavailable

20

Homelite A00813A

KIT- Sealing
(Superseded to UP03822A)

$

$

Not available

21

Homelite 00321

SHROUD
(Superseded to UP06522A)

$

$

Not available

22

Homelite DA98138A

STRAP- Shoulder (Acc.)

$

$

Currently unavailable

28

Homelite UNKNOWN

UNKNOWN

$

$

Currently unavailable
