HB 100 (UT-08018) - Homelite Blower Starter Parts Diagram

Blower

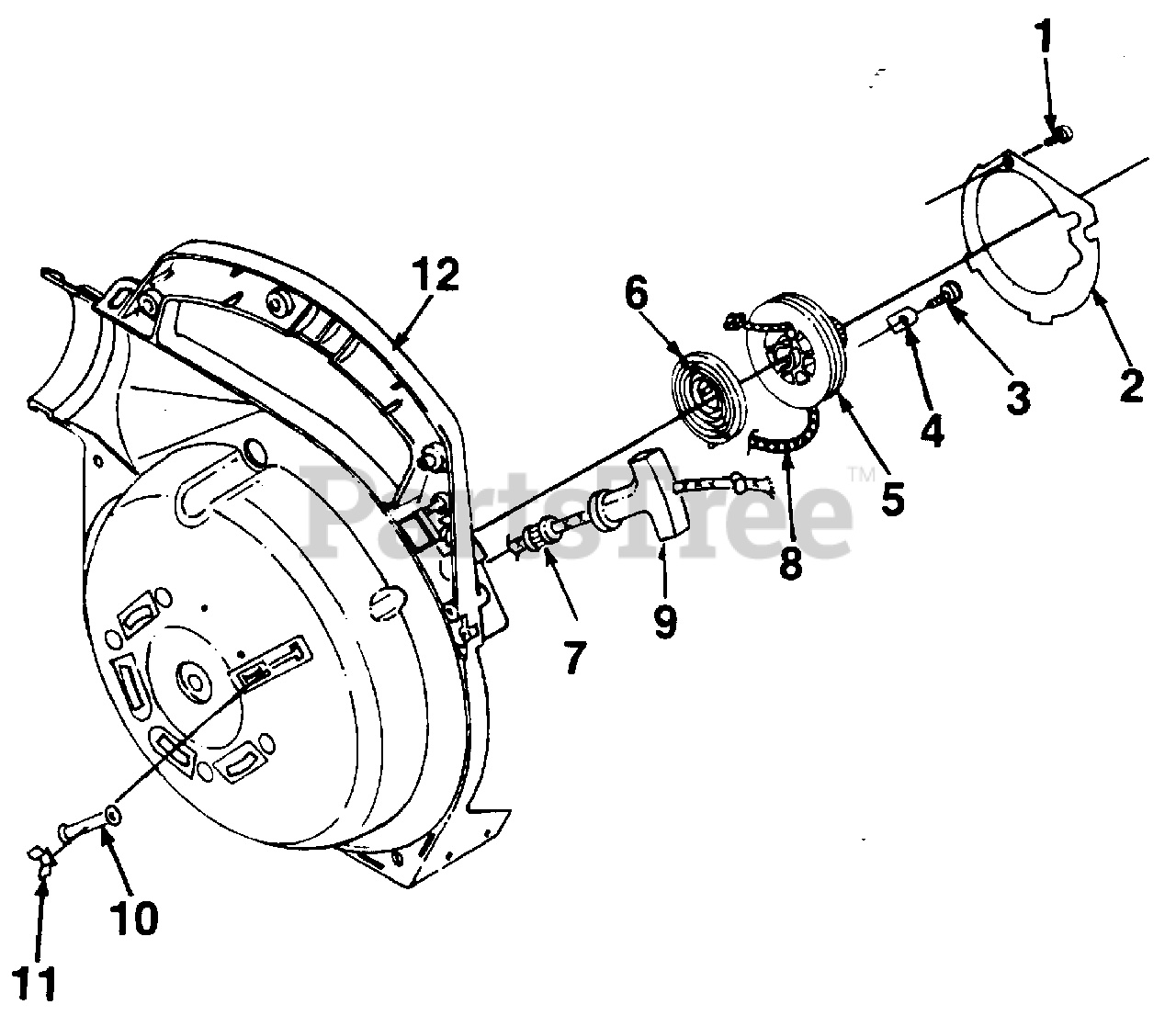

Starter Parts Diagram

  • Title

1

Homelite 82528

SCREW- Thread Forming (#6-19 x 3/4 lg.)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 00374

PLATE- Rotor

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 82511

SCREW- Thd. forming 10 x 1/2

$

$

Currently unavailable

4

Homelite 98791

BRACKET- Retaining

$

$

Not available

5

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$1.99

$

In Stock, only 4 left!

0

6

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

7

Homelite A97796

BUSHING- Starter
(Superseded to UP03910)

$

$

Not available

8

Homelite 97899

ROPE- Starter 46"
(Superseded to 9789901)

$1.49

$

In Stock, only 4 left!

0

9

Homelite 70211

GRIP- Starter rope
(Superseded to UP03832)

$

$

Not available

10

Homelite 00364

BUSHING- Starter rope
(Superseded to 650013001)

$

$

Not available

11

Homelite 00379

CLIP- Retainer

$

$

Currently unavailable

12

Homelite A00814A

HOUSING- Volute (inner)

$

$

Currently unavailable
