HB-112 (2029931) - Allis-Chalmers Garden Tractor, 12hp REAR LIFT DRAW BAR GROUP Parts Diagram

Garden Tractor, 12hp

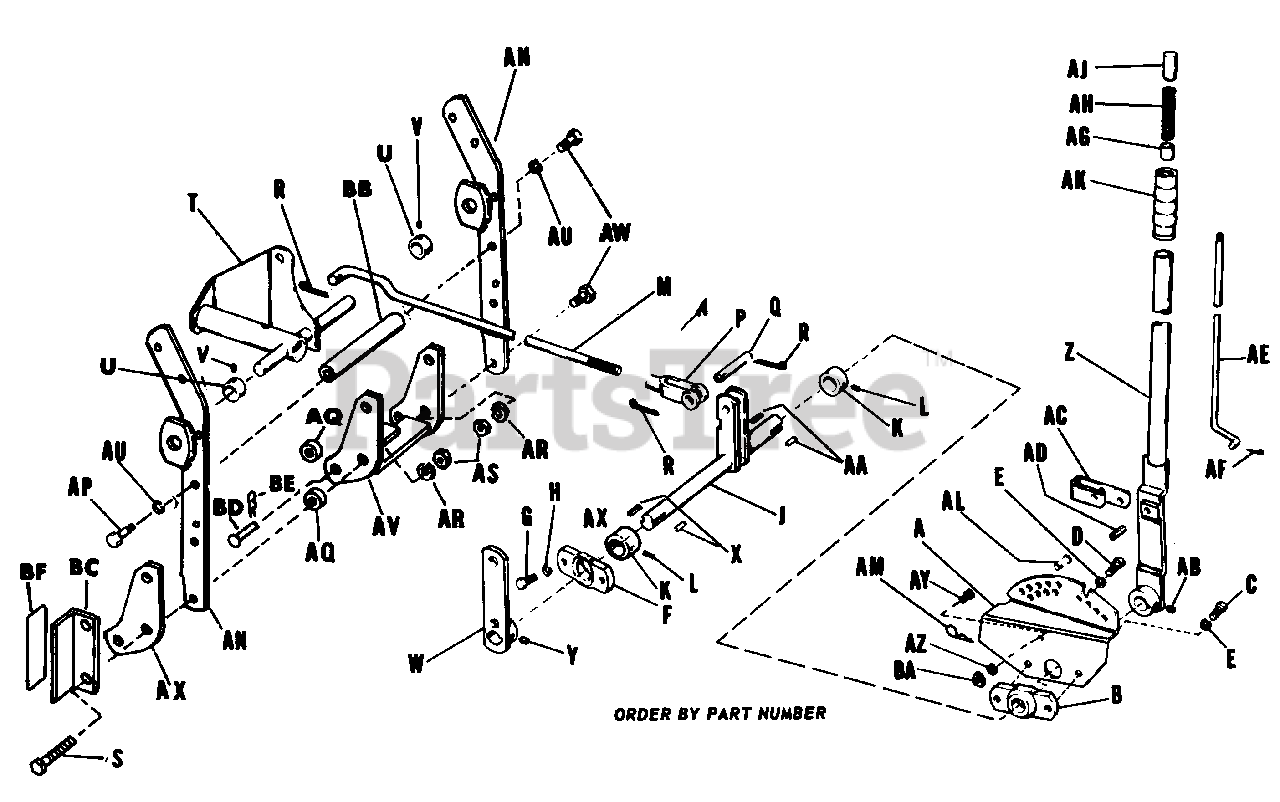

REAR LIFT DRAW BAR GROUP Parts Diagram

  • Title

A

Simplicity 154209

Lift Lever Quadrant

$

$

Not available

B

Simplicity 157620

Lift Lever Bearing

$

$

Not available

C

Simplicity 2705031

Hex. Cap Screw, 3/8"-16 x 7/8"

$

$

Not available

D

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1-1/4"

$

$

Not available

E

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

F

Simplicity 154210

Lift Lever Bearing

$

$

Not available

G

Simplicity 2705031

Hex. Cap Screw, 3/8"-16 x 7/8"

$

$

Not available

H

Simplicity 2720002

I, ock Washer, 3/8"

$

$

Not available

J

Simplicity 157640

Lift Shaft .Assembly

$

$

Not available

K

Simplicity 2157624

Set Collar

$

$

Not available

L

Simplicity 2713503

Set Screw 5/16"-18 x 5/16"

$

$

Not available

M

Simplicity 164122

Rear Lift Rod

$

$

Not available

P

Simplicity 154631

Adj. Yoke End

$

$

Not available

Q

Simplicity 157225

Pin

$

$

Not available

R

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

S

Simplicity 705052

Hex. Cap Screw, 7/16"-14 x 2-1/2"

$10.99

$

In Stock, only 1 left!

0

T

Simplicity 2154214

Tiller Lift.Assembly

$

$

Not available

U

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

V

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

W

Simplicity 2157625SM

Front Lift Lever Assembly

$233.99

$

Usually ships in 2-12 days

0

X

Simplicity 2157120SM

Key

$6.99

$

In Stock, only 3 left!

0

Y

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

Z

Simplicity 157628

Lift Lever Assembly

$

$

Not available

AA

Simplicity 2157120SM

Key

$6.99

$

In Stock, only 3 left!

0

AB

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

AC

Simplicity 154224

Lift Lever Latch

$

$

Not available

AD

Simplicity 2723007

Roll Pin

$

$

Not available

AE

Simplicity 157013

Latch Rod

$

$

Not available

AF

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

AG

Simplicity 154226

Spacer

$

$

Not available

AH

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

AJ

Simplicity 2154227SM

Thumb Button

$

$

Not available

AK

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

AL

Simplicity 1708298SM

Pin

$

$

Not available

AM

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

AN

Simplicity 2166072SM

Arm Assembly

$66.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2705047

Hex. Capscrew, 7/16"-14 x 1-3/4

$

$

Not available

AQ

Simplicity 166076

Spacer

$

$

Not available

AR

Simplicity 2720006

Lock Washer, 3/8"

$

$

Not available

AS

Simplicity 2717022

Full Hex. Nut, 7/16"

$

$

Not available

AT

Simplicity 2705041

Hex. Cap Screw, 7/16"-14 x 1"

$

$

Not available

AU

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AV

Simplicity 2166074SM

Draw Bar Assembly

$86.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2705042

Hex. Cap Screw, 7/16"-14 x 1-1/4'

$

$

Not available

AX

Simplicity 2166075SM

Draw Plate

$

$

Not available

AY

Simplicity 2715018

Hex Cap Screw, 1/4-20 x 5/8" lg.

$

$

Not available

AZ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BA

Simplicity 2717005

Hex Nut, 1/4-20

$

$

Not available

BB

Simplicity 2166110SM

Spacer

$24.99

$

Usually ships in 2-12 days

0

BC

Simplicity 166198

Plate, Decal

$

$

Not available

BD

Simplicity 2155037SM

Round Head Pin

$12.99

$

In Stock, only 1 left!

0

BE

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

BF

Simplicity 166197

Film, Safety

$

$

Not available
