HB-112 (2029932) - Allis-Chalmers Garden Tractor, 12hp FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

Garden Tractor, 12hp

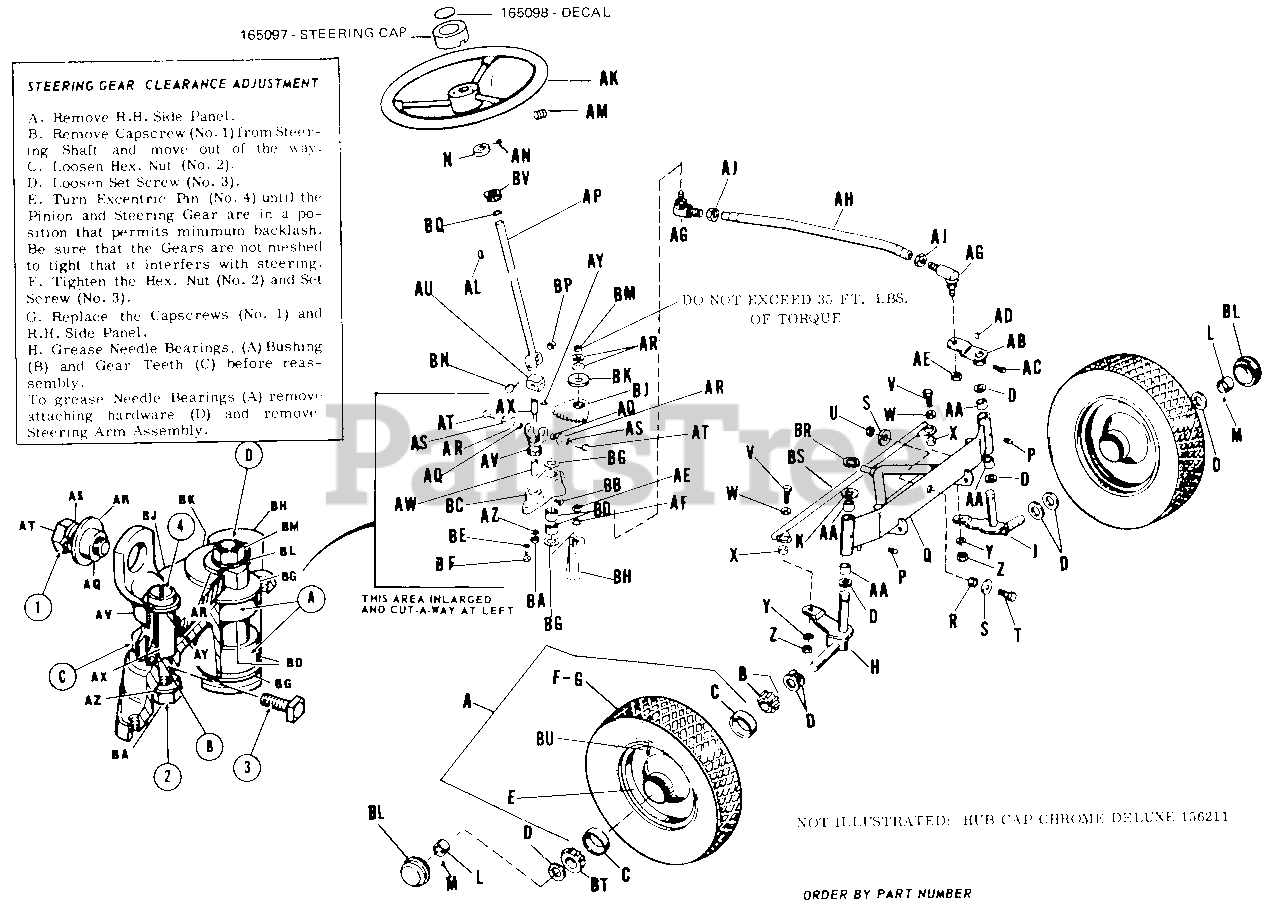

FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

  • Title

A

Simplicity 157505

Wheel and Tire Assembly

$

$

Not available

B

Simplicity 2154397SM

Bearing Cone, w/seal

$105.99

$

Usually ships in 2-12 days

0

C

Simplicity 2154393SM

Bearing Cup

$33.99

$

In Stock, only 3 left!

0

D

Simplicity 2108181

Washer

$

$

Not available

E

Simplicity 157506

Wheel w/Bearing Cup

$

$

Not available

F

Simplicity 2157490

Tire,

$

$

Not available

G

Simplicity 2164247SM

Tube

$43.99

$

In Stock, only 2 left!

0

H

Simplicity 2157494SM

Spindle Assembly R.H.
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

J

Simplicity 2157611

Spindle Assembly L.H.

$

$

Not available

K

Simplicity 1729259SM

Washer

$6.49

$

In Stock, Qty 10

0

L

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$9.49

$

Usually ships in 2-12 days

0

M

Simplicity 2713503

Cup Point Socket Head Set Screw, 5/16"-18 x 5/16" lg.

$

$

Not available

N

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$9.49

$

Usually ships in 2-12 days

0

P

Simplicity 2727002

Grease Fitting

$

$

Not available

Q

Simplicity 1650553SM

Axle Assembly, Front

$463.99

$

Usually ships in 2-12 days

0

R

Simplicity 2157618SM

Spacer

$

$

Not available

S

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

T

Simplicity 2705037

Hex. Cap Screw, 1/2"-13 x 1" lg.

$

$

Not available

U

Simplicity 2717518

Full Lock Hex. Nut, 1/2"-13

$

$

Not available

V

Simplicity 2705016

Hex, Cap Screw, 3/8"-16 x 1-1/4" lg.

$

$

Not available

W

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

X

Simplicity 2154177SM

Spacer

$41.99

$

In Stock, only 3 left!

0

Y

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Z

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AA

Simplicity 2154289SM

Bearing

$18.99

$

In Stock, Qty 14

0

AB

Simplicity 2157613

Arm Assembly, Steering, L.H.

$

$

Not available

AC

Simplicity 2713006

Screw set Cup point, Square Head, 5/16"-18 x 1/2" lg.

$

$

Not available

AD

Simplicity 2157427SM

Key

$5.49

$

Usually ships in 2-12 days

0

AE

Simplicity 2717528

Full Hex. Lock Nut 1/2"-20

$

$

Not available

AF

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AG

Simplicity 2164272SM

Ball Joint

$103.99

$

In Stock, only 3 left!

0

AH

Simplicity 164271

Tie Rod

$

$

Not available

AJ

Simplicity 2717016

Nut, 1/2"-20

$

$

Not available

AK

Simplicity 165078

Steering Wheel

$

$

Not available

AL

Simplicity 2725003

Woodruff Key, #9

$

$

Not available

AM

Simplicity 2713503

Socket Head Cup Point Set Sc rew, 5/16"-18 x 5/16" lg.

$

$

Not available

AN

Simplicity 2713502

Steering Hd. Set Screw, 5/16"-18 x 1/4" lg.

$

$

Not available

AP

Simplicity 157259

Steering Shaft Assembly

$

$

Not available

AQ

Simplicity 2153081

Spacer

$

$

Not available

AR

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AS

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AT

Simplicity 2715030

Hex Cap Screw, 3/8"-16 x 3/4" lg

$

$

Not available

AU

Simplicity 154153

Universal Joint Pin

$

$

Not available

AV

Simplicity 2157254SM

Bushing Assembly

$267.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2157258SM

Bushing

$27.99

$

In Stock, only 1 left!

0

AX

Simplicity 2157253

Pin Eccentric

$

$

Not available

AY

Simplicity 2158399SM

Retainer Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

AZ

Simplicity 2720002

Lock Washer

$

$

Not available

BA

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

BB

Simplicity 713012

Sq. Hd. Set Screw, 1/4"-20 x 3/4" lg.

$

$

Not available

BC

Simplicity 157302

Steering Bracket

$

$

Not available

BD

Simplicity 2154258SM

Needle Bearing

$27.99

$

In Stock, Qty 5

0

BE

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BF

Simplicity 2705012

Hex. Cap Screw, 5/16"-18 x 5/8"

$

$

Not available

BG

Simplicity 1729259SM

Washer

$6.49

$

In Stock, Qty 10

0

BH

Simplicity 164263

Steering Arm Assembly

$

$

Not available

BJ

Simplicity 164235

Gear Steering

$

$

Not available

BK

Simplicity 2108182SM

Arbor Washer

$

$

Not available

BL

Simplicity 2154487SM

Hub Cap
(Superseded to 2154487YP)

$13.99

$

In Stock, Qty 14

0

BM

Simplicity 2717519

Gripco Center Lock 7/16"-14

Note: DO NOT EXCEED 35 FT. LBS. OF TORQUE

$

$

Not available

BN

Simplicity 2715026

Hex Cap Screw,

$

$

Not available

BP

Simplicity 2717511

Full Hex. Nut, 5/16"-18

$

$

Not available

BQ

Simplicity 2154264SM

Snap Ring

$5.99

$

Usually ships in 2-12 days

0

BR

Simplicity 2157286

Retaining Ring

$

$

Not available

BS

Simplicity 2157499SM

Drag Link
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

BT

Simplicity 2154486SM

Outside Bearing

$51.99

$

In Stock, Qty 5

0

BU

Simplicity 157305

Valve Stem

$

$

Not available

BV

Simplicity 2157077SM

Steering Bushing

$143.99

$

Usually ships in 2-12 days

0

BV

Simplicity 2156211SM

Hub Cap-Chrome Deluxe

Note: NOT ILLUSTRATED

$

$

Not available
