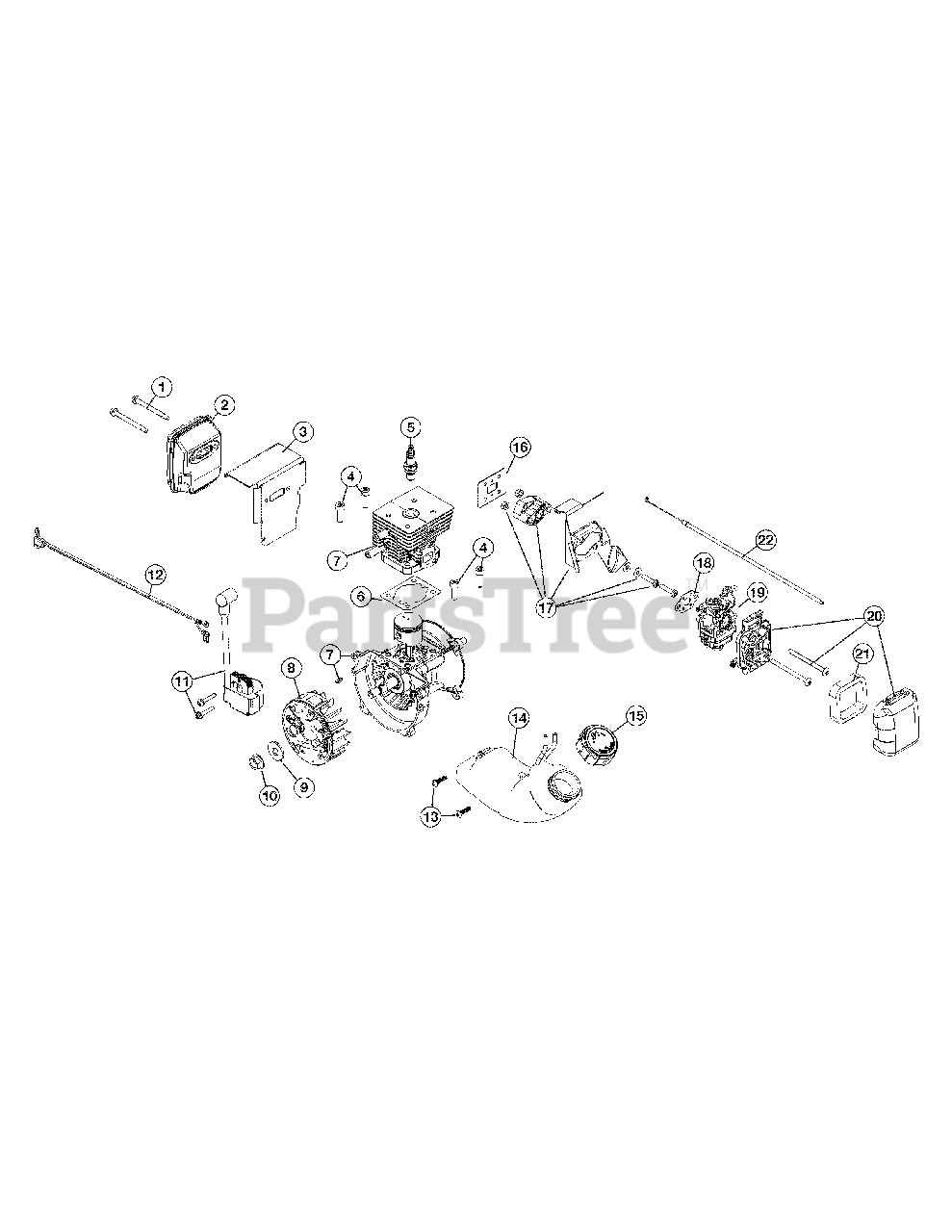

HB 227 (41AS2SCG912) - Cub Cadet Handheld Blower (2010) Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04188A

Muffler Screws

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06027

Muffler Assembly (Incl. Ref No. 1 & 3)

$43.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05946

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04715

Screw

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet 753-05704

Cylinder Gasket

$

$

Not available

7

Cub Cadet 753-05947

Shortblock Assembly (Incl. Ref No. 4-6 & 8-11)

$

$

Not available

8

Cub Cadet 753-05948

Flywheel Assembly

$

$

Not available

9

Cub Cadet 736-04107

Washer

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-04137

Nut

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet 753-05866

Module Assembly

$92.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-05949

Lead Wire

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 753-05950

Fuel Tank Assembly (Incl. Ref No. 13 & 15)

$

$

Not available

15

Cub Cadet 791-182529

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

16

Cub Cadet 753-05702

Insulator Gasket

$

$

Not available

17

Cub Cadet 753-05632

Insulator Assembly (Incl. Ref No. 16)

$

$

Not available

18

Cub Cadet 791-181709

Carburetor Gasket

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 753-05951

Carburetor Assembly (Incl. Ref No. 18)

$49.99

$

In Stock, only 1 left!

0

20

Cub Cadet 753-05725

Aircleaner Assembly (Incl. Ref No. 21)

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-181757

Air Filter

$4.49

$

In Stock, Qty 14

0

22

Cub Cadet 753-05952

Throttle Cable

$

$

Not available
