HB 26 (59AF302-195) - MTD Pro Blower General Assembly Parts Diagram

Pro Blower

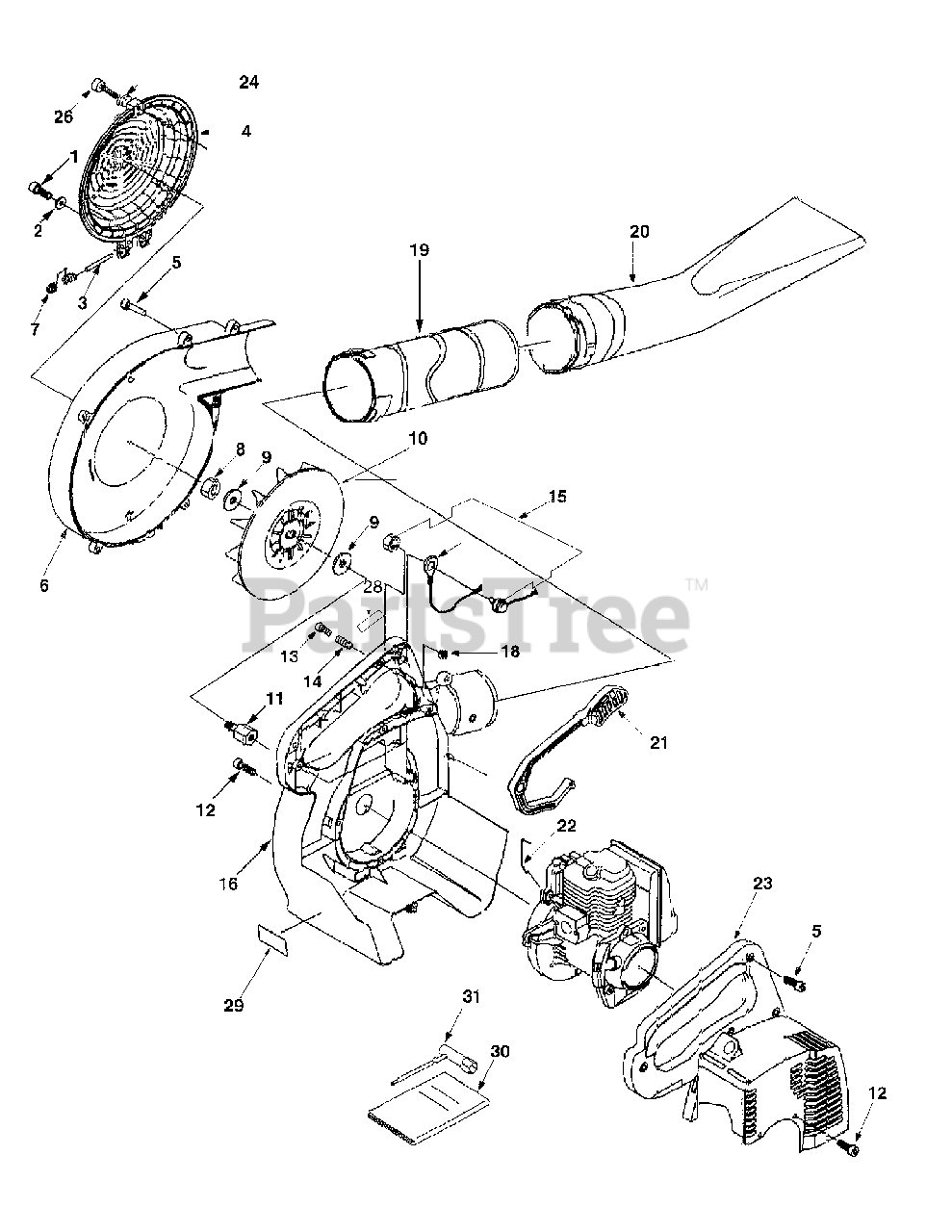

General Assembly Parts Diagram

  • Title

1

MTD IM-010709025

Bolt; PC5X14

$

$

Not available

2

MTD IM-199343091

Washer

$

$

Not available

3

MTD IM-725180020

Shaft

$

$

Not available

4

MTD IM-725170010

Guard, Fan

$11.99

$

Usually ships in 3-6 days

0

5

MTD IM-010709047

Bolt; PC5X18

$

$

Not available

6

MTD IM-725100140

Casing

$

$

Not available

7

MTD IM-198213400

Spring

$

$

Not available

8

MTD IM-020109107

Nut

$

$

Not available

9

MTD IM-026109129

Washer

$

$

Not available

10

MTD IM-725120030

Fan

$49.99

$

Usually ships in 3-6 days

0

11

MTD IM-725180010

Shaft

$

$

Not available

12

MTD IM-010709009

Bolt; M5x20

$

$

Not available

13

MTD IM-725420060

Lever, Throttle
(Superseded to IM-725420061)

$9.99

$

In Stock, only 1 left!

0

14

MTD IM-198213390

Spring, Throttle

$

$

Not available

15

MTD IM-185203290

Switch Compl

$43.99

$

Usually ships in 3-6 days

0

16

MTD IM-725100160

Casing

$

$

Not available

17

MTD IM-185603360

Harness, Wire

$

$

Not available

18

MTD IM-036800003

Snap Ring; E-3

$

$

Not available

19

MTD IM-725260060

Pipe, Straight

$

$

Not available

20

MTD IM-725280011

Pipe, Tail

$

$

Not available

21

MTD IM-725420070

Lever, Throttle

$

$

Not available

22

MTD IM-725420040

Lever, Throttle

$3.49

$

In Stock, only 1 left!

0

23

MTD IM-175154010

Cowling

$

$

Not available

24

MTD IM-026100004

Washer

$

$

Not available

26

MTD IM-010709051

Bolt; M4x30

$

$

Not available

28

MTD IM-725960030

Caution Plate

$

$

Not available

29

MTD IM-725960040

Caution Plate

$

$

Not available

30

MTD IM-100814510

Instruction Book

Note: NLA

$

$

Currently unavailable

31

MTD IM-720983371

Wrench; 19

$

$

Not available
