HB 281 (967008301) - RedMax Handheld Blower (2011-09) ENGINE Parts Diagram

Handheld Blower

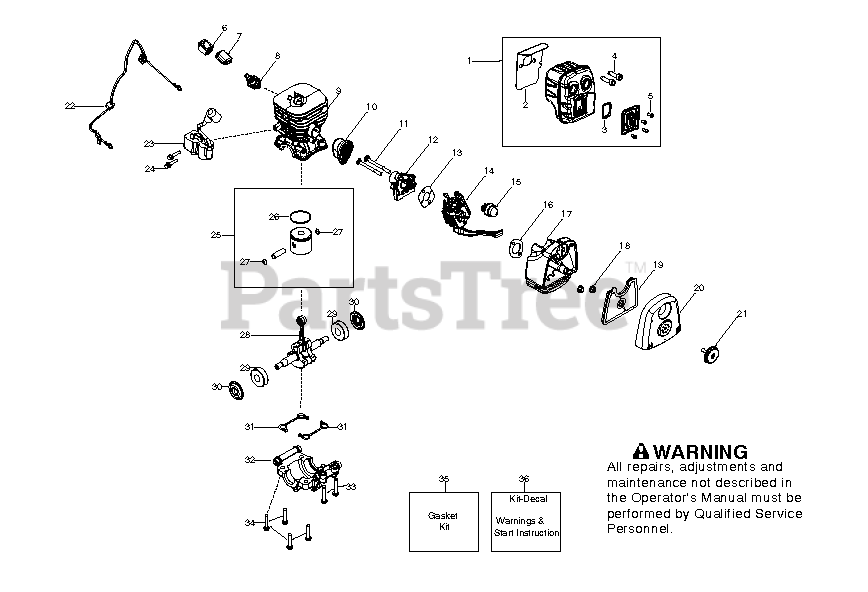

ENGINE Parts Diagram

  • Title

1

RedMax 545111901

ASSY, MUFFLER
(Superseded to 580502701)

Note: 2 3 4 5

$31.99

$

In Stock, Qty 9

0

3

RedMax 545081810

KIT, SPARK SCREEN

$10.99

$

In Stock, only 1 left!

0

4

RedMax 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

5

RedMax 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 545049301

KIT SWITCH

$9.99

$

In Stock, Qty 18

0

7

RedMax 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 952030249

Spark Plug, RCJ6Y

$4.99

$

In Stock, Qty 20+

0

9

RedMax 545132601

CYLINDER -CHROME
(Superseded to 587597301)

$48.99

$

Usually ships in 3-10 days

0

10

RedMax 545132501

BOOT, CARB

$17.99

$

In Stock, only 4 left!

0

11

RedMax 530016187

SCREW

$6.49

$

In Stock, only 2 left!

0

12

RedMax 545133301

PLATE, CARB

$8.99

$

Usually ships in 3-10 days

0

14

RedMax 545081811

KIT, CARB

Note: 13 16

$40.99

$

Usually ships in 3-10 days

0

15

RedMax 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

17

RedMax 545109802

BASE - AIR BOX

$17.99

$

In Stock, only 2 left!

0

18

RedMax 530016101

NUT

$6.49

$

In Stock, Qty 8

0

19

RedMax 545112101

FILTER, AIR

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 545109602

COVER - AIR BOX
(Superseded to 545176802)

$17.99

$

In Stock, Qty 8

0

21

RedMax 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, Qty 5

0

22

RedMax 545108202

ASSY, LEADWIRE
(Superseded to 545108201)

$10.99

$

In Stock, only 1 left!

0

23

RedMax 545108101

IGNITION MODULE

$42.99

$

Usually ships in 3-10 days

0

24

RedMax 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 545081814

KIT - PISTON

Note: 26 27

$44.99

$

In Stock, only 1 left!

0

26

RedMax 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

27

RedMax 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

28

RedMax 545081816

$

$

Not available

29

RedMax 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, Qty 5

0

30

RedMax 545081815

CRANKSHAFT SEAL

$10.99

$

In Stock, only 3 left!

0

32

RedMax 545068301

CAP - BEARING
(Superseded to 577929601)

$8.99

$

Usually ships in 3-10 days

0

33

RedMax 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

34

RedMax 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

35

RedMax 545081813

GASKET

Note: 2 13 16 31

$24.99

$

In Stock, Qty 5

0

36

RedMax 545081809

KIT, DECAL

$4.99

$

Usually ships in 3-10 days

0
