HBC 18 (UT-15075) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

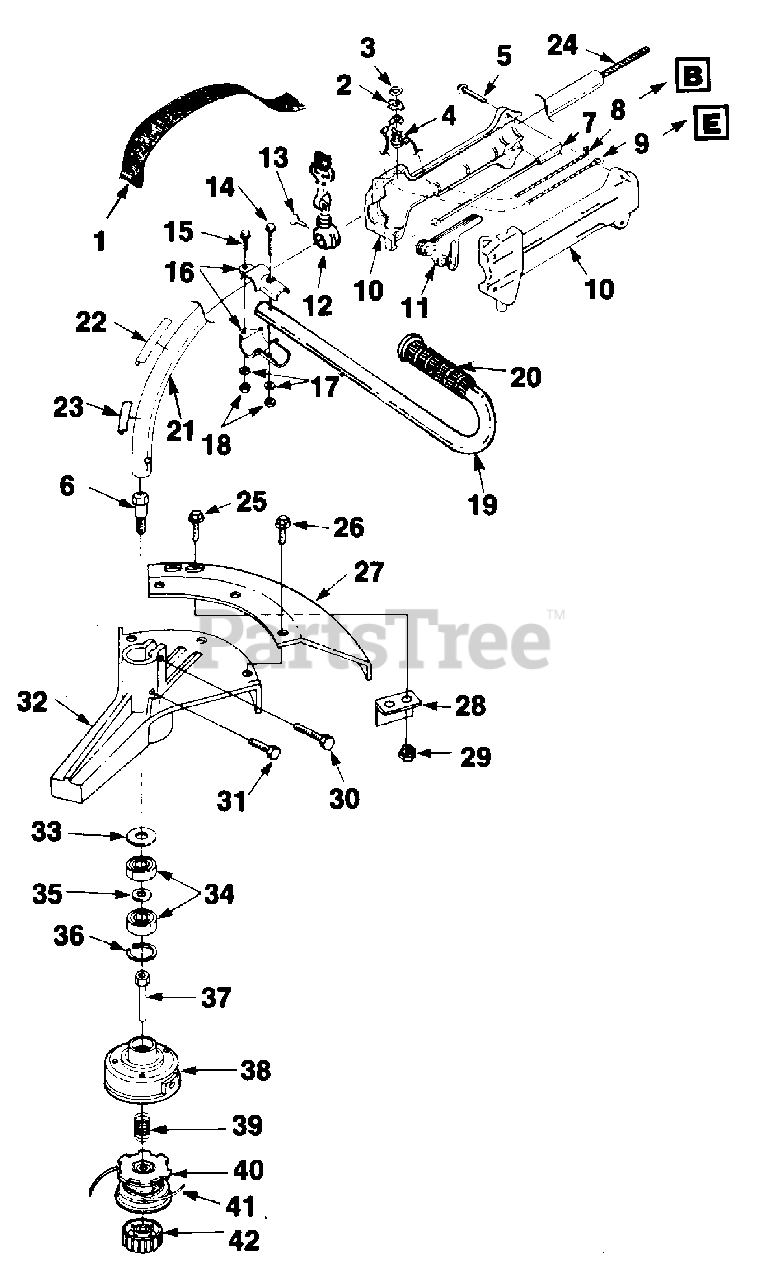

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS

$

$

Currently unavailable

2

Homelite 95231

PLATE- Indicating
(Superseded to UP04266)

$

$

Not available

3

Homelite 72084A1

NUT- Toggle switch
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 93653

SWITCH- Toggle
(Superseded to UP04261)

$

$

Not available

5

Homelite 82368

SCREW- Plastite (#8 x 3/4")
(Superseded to PS00055)

$

$

Not available

6

Homelite 98834A

SHAFT- Spindle
(Superseded to A04457A)

$

$

Currently unavailable

7

Homelite A03006

CABLE- Throttle

$

$

Not available

8

Homelite A98918

LEAD- Electrical

$

$

Not available

9

Homelite A98919A

LEAD- Ground
(Superseded to UP04274)

$

$

Not available

10

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

11

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

12

Homelite A94442

BRACKET- Hanger

$10.99

$

Usually ships in 3-7 days

0

13

Homelite 82260

SCREW- Thumb (10-24 x 1/2")

$

$

Not available

14

Homelite 88071

SCREW- (1/4-20 x 1 1/2")

$

$

Not available

15

Homelite 88078

SCREW- (1/4-20 x 7/8")

$

$

Not available

16

Homelite 00422

CLAMP- Handle bar
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 83061

WASHER- (1/4")

$

$

Not available

18

Homelite 81267

NUT- (1/4-20)

$

$

Not available

19

Homelite A02951

"J" HANDLE BAR

$

$

Currently unavailable

20

Homelite 94474B

GRIP

$

$

Not available

21

Homelite A03287A

HOUSING- Drive shaft

$

$

Currently unavailable

22

Homelite 989241

DECAL- Starting instr.

$

$

Currently unavailable

23

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

24

Homelite 98818

SHAFT- Flexible

$

$

Not available

25

Homelite 80869

SCREW- (10-32 x 3/8")

$

$

Not available

26

Homelite 806813

SCREW- (1/4-20 x 1/2")

$

$

Not available

27

Homelite 988451

DEFLECTOR- Grass

$

$

Currently unavailable

28

Homelite 98858

BLADE- Cut off
(Superseded to 07129)

$

$

Not available

29

Homelite 81208

NUT- (10-32)

$

$

Not available

30

Homelite 88078

SCREW- (1/4-20 x 1")

$

$

Not available

31

Homelite 80869

SCREW- (10-24 x 3/8")

$

$

Not available

32

Homelite 987321B

HOUSING- Lower bearing
(Superseded to A04457A)

$

$

Currently unavailable

33

Homelite 98838

WASHER- Thrust

$

$

Not available

34

Homelite 98798

BEARING- Ball
(Superseded to UP05589)

$8.49

$

Usually ships in 3-7 days

0

35

Homelite 98839

SPACER- Bearing

$

$

Not available

36

Homelite 98799

RING- Snap

$2.99

$

In Stock, only 1 left!

0

37

Homelite 98849

CONNECTOR- Drive

$18.99

$

Usually ships in 3-7 days

0

38

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

39

Homelite 98848

SPRING- Compression
(Superseded to UP06526)

$1.49

$

In Stock, only 2 left!

0

40

Homelite DA02598A

SPOOL & STRING

$

$

Currently unavailable

41

Homelite 0395903

LINE REPLACEMENT (.095" Dia.) (1 lb.)
(Superseded to D06514)

$

$

Not available

42

Homelite DA98866A

RETAINER- Spool (R.H. Thread)
(Superseded to UP04273A)

$

$

Not available
