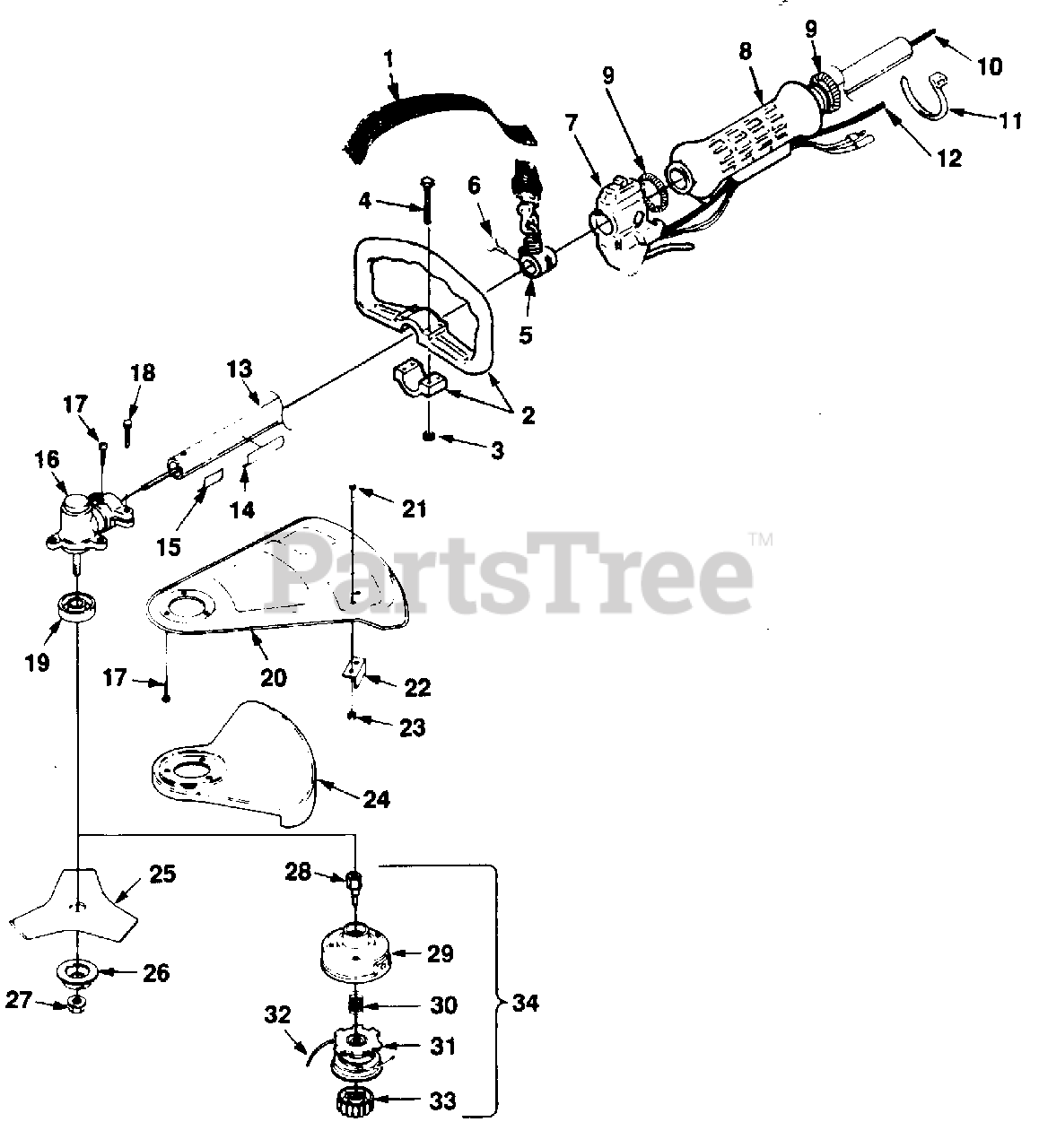

HBC 30 (UT-15071-1) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/Connector

$

$

Currently unavailable

2

Homelite A00736

HANDLE-Front

$

$

Not available

3

Homelite 00677

NUT-Hex (M5 X 0.8)

$

$

Not available

4

Homelite 00676

SCREW-Hex Hd. (M5 X 0.8 X 35)

$

$

Not available

5

Homelite A94442

BRACKET-Hanger

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

7

Homelite A00738

THROTTLE & SWITCH w/Lead
(Superseded to UP06617)

$

$

Not available

8

Homelite 00597A

GRIP-Handle

$

$

Currently unavailable

9

Homelite 00737

SPRING-Tension (HBC-30)

$

$

Not available

10

Homelite 98832

SHAFT-Drive

$

$

Not available

11

Homelite 46840

CABLE-Tie

$

$

Not available

12

Homelite A03004

CABLE-Throttle

$

$

Not available

13

Homelite A03800A

HOUSING-Drive Shaft (Black)
(Superseded to UP04489)

$

$

Currently unavailable

14

Homelite 04458

DECAL-Starting Instructions
(Superseded to UP04130)

$

$

Not available

15

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

16

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

$

$

Not available

17

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

$

$

Not available

18

Homelite 88053

SCREW-Sems Hex Hd. (10-24 X 1")
(Superseded to 96624)

$

$

Not available

19

Homelite 04168

WASHER-Flange
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

20

Homelite 988461

DEFLECTOR-Grass

$

$

Currently unavailable

21

Homelite 80869

SCREW Mach Hex Hd. (10-24 X 3/8")

$

$

Not available

22

Homelite 02949

BLADE Cut-Off
(Superseded to 07128)

$

$

Not available

23

Homelite 81208

NUT-(10-24)

$

$

Not available

24

Homelite 988472

GUARD-Blade

$18.99

$

Usually ships in 3-7 days

0

25

Homelite D98717A

BLADE-Tri-Arc
(Superseded to D98717C)

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 04259

WASHER-Flange

$

$

Not available

27

Homelite 04277

NUT-Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

28

Homelite 9855141

CONNECTOR-Drive

$

$

Not available

29

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

30

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$1.49

$

In Stock, only 4 left!

0

31

Homelite DA02598A

SPOOL & STRING (Dual Line)

$

$

Currently unavailable

32

Homelite 0395903

LINE-Replacement (1 lb. Box, 095" Dia.)
(Superseded to D06514)

$

$

Not available

33

Homelite A97910A

RETAINER-Spool (L.H.) (Red)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite A03174

STRINGHEAD COMPLETE

$

$

Currently unavailable
