HBC 30Bi (UT-15175) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

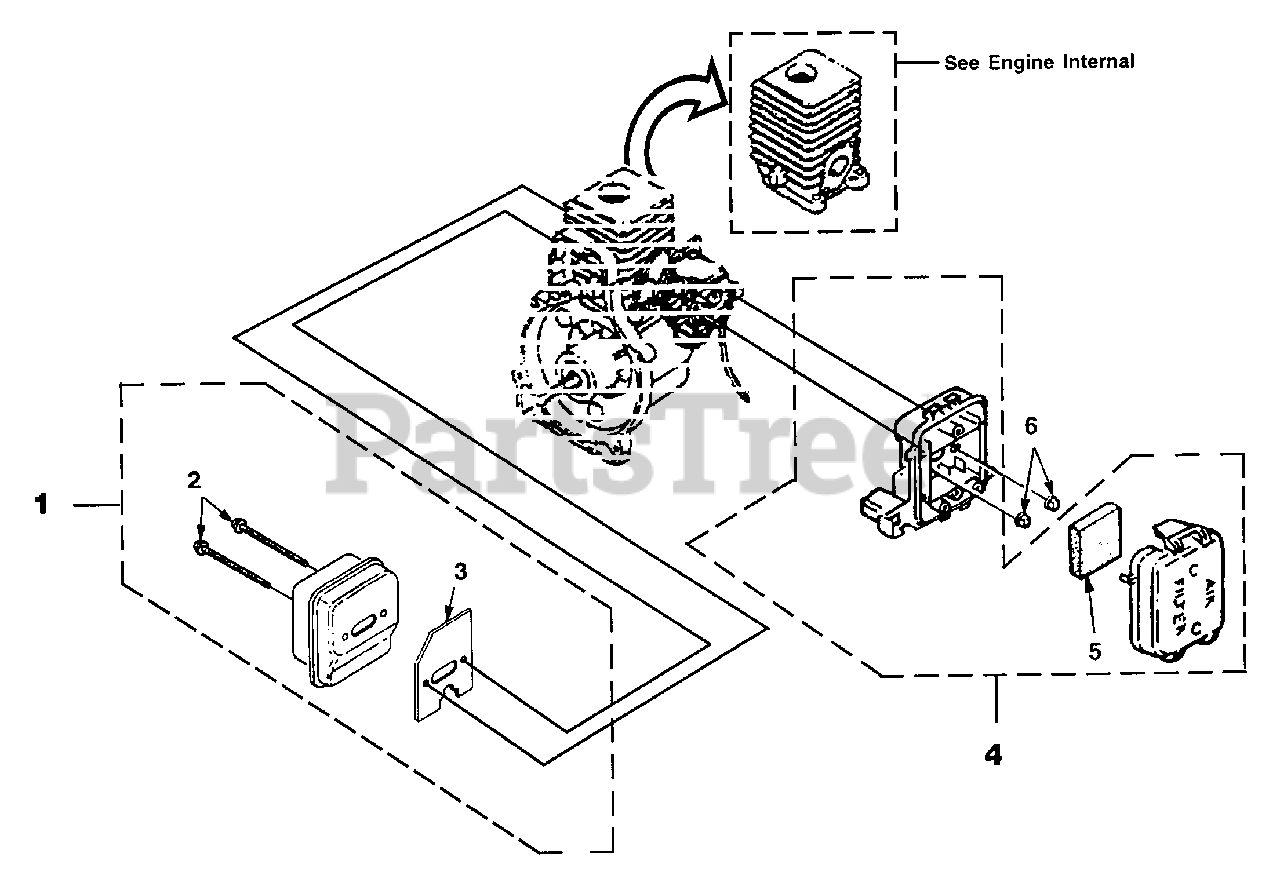

Muffler - Air Cleaner Parts Diagram

  • Title

1

Homelite A07315

MUFFLER COMPLETE
(Superseded to UP04692)

Note: (Includes 2 & 3)

$

$

Not available

2

Homelite 88060

SCREW-Sems Hex (10-24 X 2 1/2")
(Superseded to 660673001)

Note: (Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 98786C

GASKET-Muffler

$

$

Not available

4

Homelite A04707A

AIR FILTER KIT

Note: (Includes 5)

$

$

Not available

5

Homelite 98760

FILTER-AIR

$1.49

$

In Stock, Qty 8

0

6

Homelite 81208

NUT-Hex (10-24)

Note: (Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm)

$

$

Not available
