HBC 38 (UT-15077) - Homelite String Trimmer Engine Peripherals Parts Diagram

String Trimmer

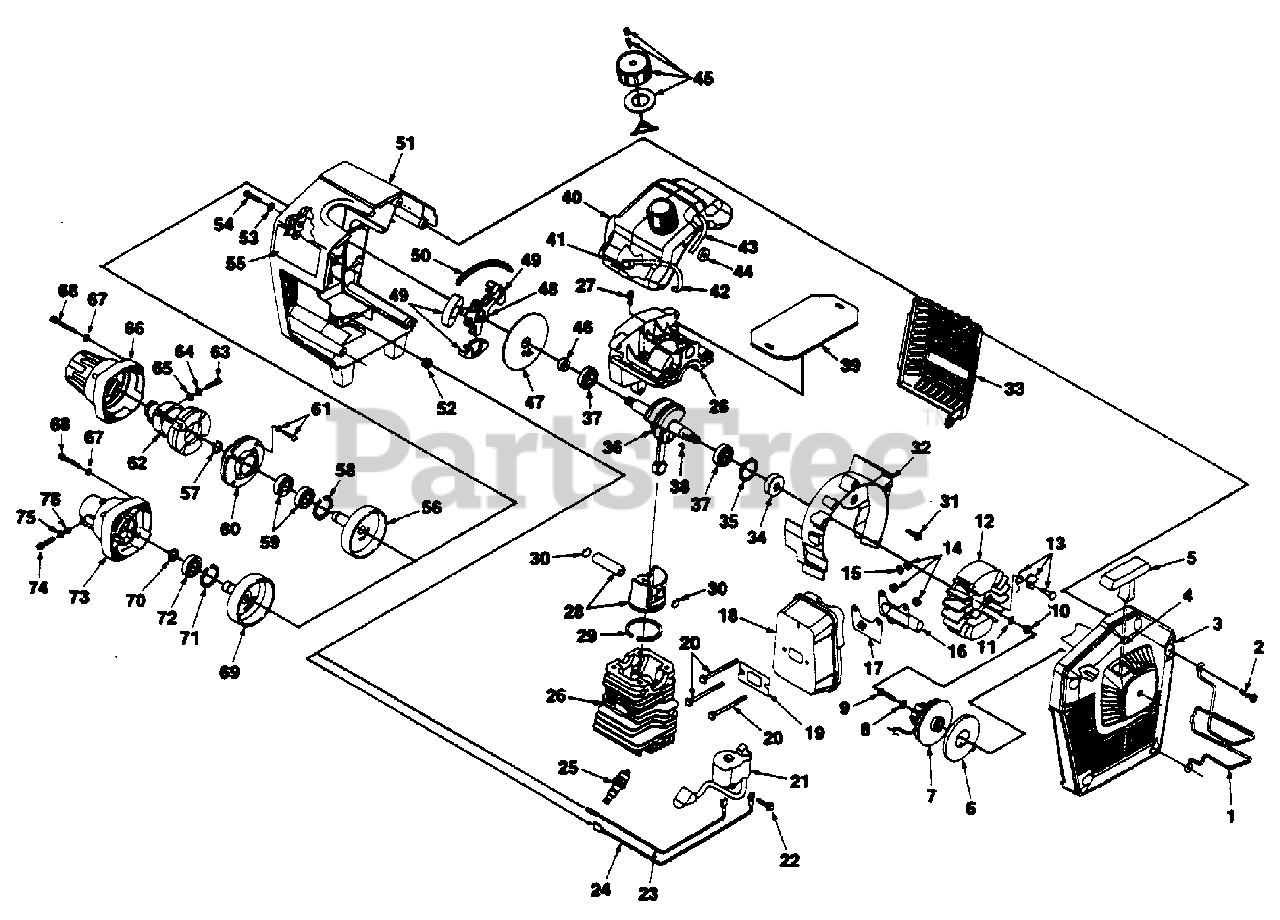

Engine Peripherals Parts Diagram

  • Title

1

Homelite 03654

GUARD- Wire

$

$

Not available

2

Homelite 82537

SCREW- Truss hd (10-24 x 7/8")

$1.99

$

Usually ships in 3-7 days

0

3

Homelite A04044

HOUSING- Starter
(Superseded to A03782A)

$

$

Currently unavailable

4

Homelite 9789902

ROPE- Starter
(Superseded to 900849002)

$2.49

$

In Stock, only 3 left!

0

5

Homelite 02264

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

6

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

7

Homelite 02103

PULLEY- Starter

$38.99

$

Usually ships in 3-7 days

0

8

Homelite 94062

WASHER (#10)

$

$

Not available

9

Homelite 82409

SCREW (#10)

$

$

Not available

10

Homelite 81257

NUT-Rotor (3/8-24)

$

$

Not available

11

Homelite 83102

WASHER- Lock (3/8")

$

$

Not available

12

Homelite A02098

ROTOR ASSEMBLY

$

$

Not available

13

Homelite A03801

STARTER PAWL KIT

$

$

Not available

14

Homelite 81206

NUT- (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

15

Homelite 84003

WASHER (#10)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 015711

COVER- Exhaust

$

$

Not available

17

Homelite 01532

SCREEN- Spark arrestor

$

$

Not available

18

Homelite A02083

MUFFLER

$

$

Currently unavailable

19

Homelite 01543A

GASKET- Muffler

$

$

Currently unavailable

20

Homelite 02176

SCREW- (10-32 x 2 1/2")

$

$

Not available

21

Homelite 02095S

MODULE- Ignition (Phelon)
(Superseded to UP05587)

$

$

Not available

22

Homelite 88052

SCREW (10-24)

$5.99

$

Usually ships in 3-7 days

0

23

Homelite A02708

WIRE- Ignition

$

$

Not available

24

Homelite A02707

WIRE- Ignition ground

$

$

Not available

25

Homelite 93561S

SPARK PLUG (CJ6Y)
(Superseded to D93561)

$

$

Not available

Homelite 98217S

SPARK PLUG (RCJ6Y) (Int'l Only)
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

26

Homelite A03783

CYLINDER 8 CRANKCASE

$

$

Currently unavailable

27

Homelite 80891

SCREW- Hex hd. (12-24 x 7/8")

$

$

Not available

28

Homelite A02579A

PISTON

$

$

Currently unavailable

29

Homelite 01545

RING- Piston
(Superseded to 01545B)

$

$

Not available

30

Homelite 64813

RING- Piston pin ret.

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 82538

SCREW-Truss hd. (10-24 x 3/4")

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 02064

SCROLL- Fan

$

$

Not available

33

Homelite 02052

SHIELD- Muffler
(Superseded to 020521)

$

$

Not available

34

Homelite 98197

SEAL- Shaft
(Superseded to UP06470)

$

$

Not available

35

Homelite 289221

RING- Retaining

$

$

Not available

36

Homelite A03802

CRANKSHAFT

$663.99

$

Usually ships in 3-7 days

0

37

Homelite 98797

BEARING- Ball

$

$

Not available

38

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

39

Homelite 03977

PAD

$

$

Not available

40

Homelite A03559

TANK- Fuel

$

$

Not available

41

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

42

Homelite 9477232

TUBING- Rubber (8")
(Superseded to UP03905)

$

$

Not available

43

Homelite 0143937

TUBING- Rubber (9 1/4")

$

$

Currently unavailable

44

Homelite 02080

SPACER- Fuel tank

$

$

Not available

45

Homelite A00982A

FUEL CAP ASSEMBLY FILTER VALVE- Duck bill GASKET- Fuel cap

$

$

Currently unavailable

46

Homelite 93858

SEAL-Crankshaft
(Superseded to UP07439)

$

$

Not available

47

Homelite 03419

PLUG- Crankcase

$8.99

$

Usually ships in 3-7 days

0

48

Homelite A02030

CLUTCH- Spider
(Superseded to UP05956)

$

$

Not available

49

Homelite 98292

SHOE- Clutch

$10.99

$

Usually ships in 3-7 days

0

50

Homelite 98453

SPRING- Clutch
(Superseded to UP07449)

$

$

Not available

51

Homelite A04045

SHROUD
(Superseded to A04045A)

$

$

Currently unavailable

52

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

53

Homelite 84008

WASHER (#12)
(Superseded to 671080001)

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 82572

SCREW (12-24 x 3/4")

$

$

Not available

55

Homelite 02657

DECAL-Conformity (Int'l Only)

$

$

Currently unavailable

56

Homelite A04046

DRUM- Clutch (HBC-40)

$

$

Currently unavailable

57

RING- Snap (HBC-40)

$

$

Not available

58

Homelite 03948

RlNG-Snap (HBC-40)

$

$

Not available

59

Homelite 03949

BEARING- Ball (HBC-40)

$

$

Not available

60

Homelite A03952

COVER- Clutch (HBC 40)

$

$

Currently unavailable

61

Homelite 03951

SCREW- (M5 x 22) (HBC-40)

$

$

Not available

62

Homelite A03953

INSERT RING ASSEMBLY (HBC-40)

$

$

Currently unavailable

63

Homelite 88180

SCREW- Socket (M5 x 25) (HBC-40)

$

$

Not available

64

Homelite 88313

WASHER- Spring (HBC-40)

$

$

Not available

65

Homelite 88405

WASHER- Plain (HBC-40)

$

$

Not available

66

Homelite 03954

CLUTCH CASE (HBC-40)

$181.99

$

Usually ships in 3-7 days

0

67

Homelite 84008

WASHER
(Superseded to 671080001)

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 82573

SCREW (12-24 x 1 1/2")

$

$

Not available

69

Homelite A04047

DRUM- Clutch (HBC-38)

$

$

Not available

70

RING- Snap (HBC-38)

$

$

Not available

71

Homelite 04029

RING- Snap (HBC-38)
(Superseded to 03948)

$

$

Not available

72

Homelite 04030

BEARING- Ball (HBC-38)

$

$

Not available

73

Homelite A04048

CASE- Clutch (HBC-38)

$

$

Not available

74

Homelite 04033

SCREW (HBC-38)
(Superseded to 88180)

$

$

Not available

75

Homelite 04035

WASHER- Plain (HBC-38)

$8.99

$

Usually ships in 3-7 days

0

76

Homelite 04034

WASHER- Spring (HBC-38)
(Superseded to 88313)

$

$

Not available
