HBZ 2500 - RedMax Handheld Blower (SN: 100101 & Above) (2001-11) 018 - BLOWER GROUP Parts Diagram

Handheld Blower

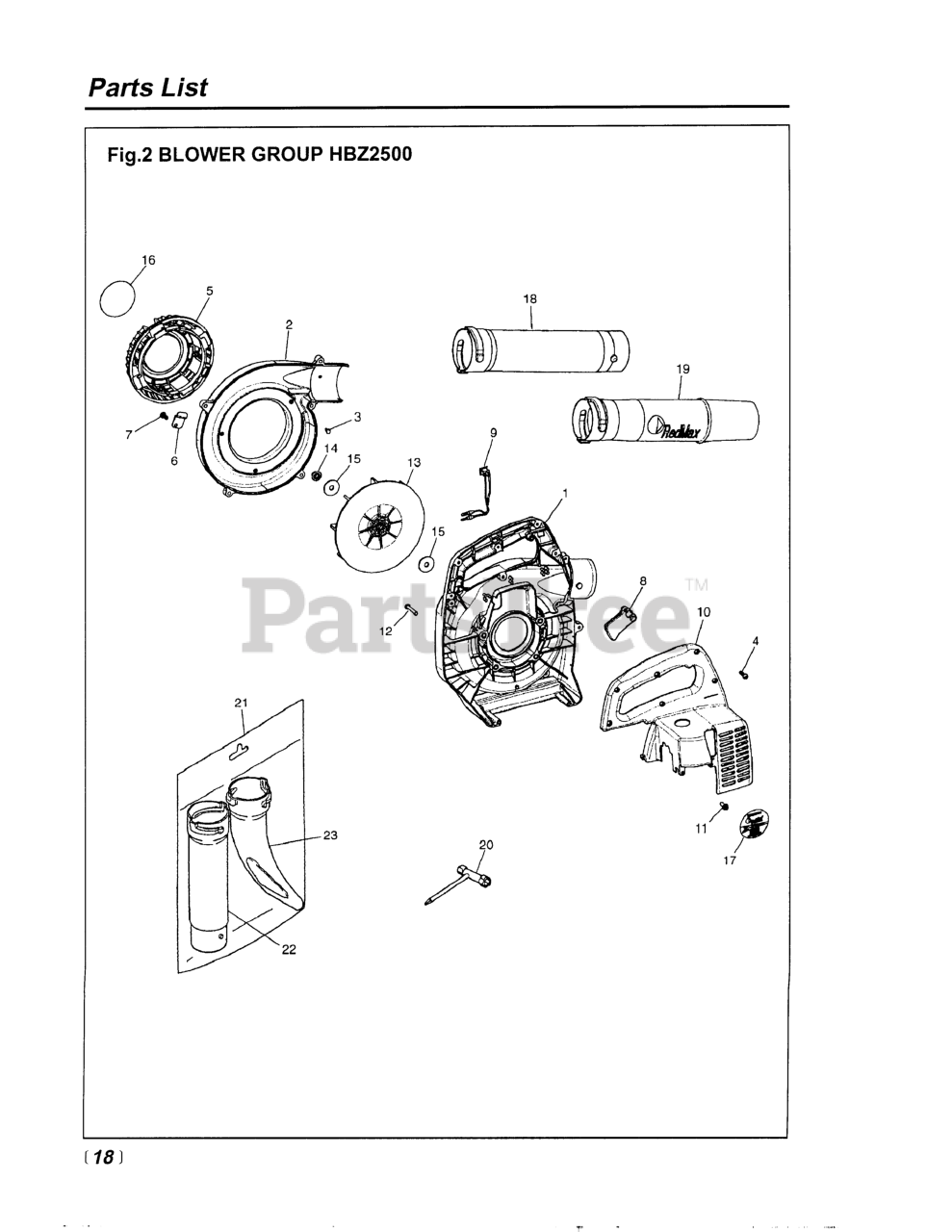

018 - BLOWER GROUP Parts Diagram

  • Title

1

RedMax 681111110

848-L0F-55A1
(Superseded to 511658901)

$

$

Not available

2

RedMax T402211300

VOLUTE COVER (HBZ 2500)
(Superseded to T402211301)

$48.99

$

Usually ships in 3-10 days

0

3

RedMax 160033130

SCREW
(Superseded to 516385401)

$

$

Not available

4

RedMax T497052001

T4970-52000

$

$

Not available

5

RedMax 681111130

GUARD
(Superseded to 515703901)

$15.99

$

Usually ships in 3-10 days

0

6

RedMax 681111160

PLATE

$1.95

$

Usually ships in 3-10 days

0

7

RedMax T497051410

SCREW

$

$

Not available

8

RedMax 681111150

LEVER
(Superseded to 515704001)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 681172200

SWITCH
(Superseded to 515705701)

$13.99

$

Usually ships in 3-10 days

0

10

RedMax T402211210

ENGINE COVER
(Superseded to 521840201)

$34.99

$

Usually ships in 3-10 days

0

11

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 4 left!

0

12

RedMax T496053510

SCREW
(Superseded to 521863201)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 681112110

FAN
(Superseded to 515704501)

$27.99

$

Usually ships in 3-10 days

0

14

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 681112220

WASHER
(Superseded to 515704701)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax T402219110

LABEL

$3.38

$

Usually ships in 3-10 days

0

17

RedMax T402275610

LABEL, RECOIL

$3.38

$

Usually ships in 3-10 days

0

18

RedMax 681151210

6811-51211
(Superseded to 577079301)

$7.49

$

In Stock, Qty 20+

0

19

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

In Stock, only 4 left!

0

20

RedMax T401791130

SOCKET

$11.01

$

Usually ships in 3-10 days

0

21

RedMax HBN100

FLAT NOZZLE SET
(Superseded to 529272801)

$

$

Not available

22

RedMax 681151210

6811-51211
(Superseded to 577079301)

$7.49

$

In Stock, Qty 20+

0

23

RedMax 681151230

NOZZLE, FLAT
(Superseded to 502444001)

$26.99

$

Usually ships in 3-10 days

0
