HBZ 260 R (967089601) - RedMax Handheld Blower (2017-03) MUFFLER & CYLINDER Parts Diagram

Handheld Blower

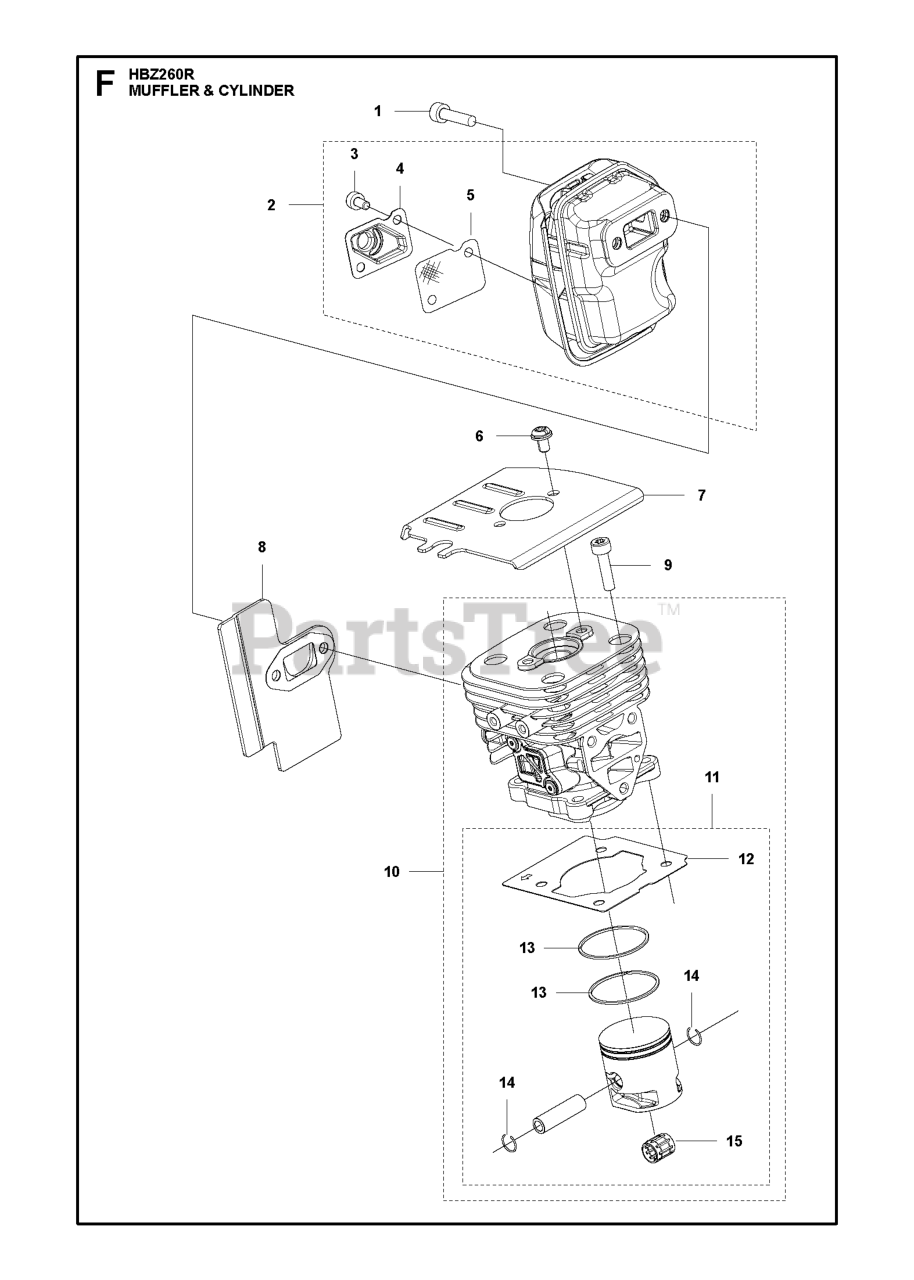

MUFFLER & CYLINDER Parts Diagram

  • Title

1

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

2

RedMax 585627401

MUFFLER ASSY
(Superseded to 585627403)

$97.99

$

Usually ships in 3-10 days

0

3

RedMax 544362701

BOLT

$4.99

$

In Stock, Qty 9

0

4

RedMax 585630301

EXHAUST COVER

$

$

Not available

5

RedMax 585630201

SPARK ARRESTER

$9.49

$

Usually ships in 3-10 days

0

6

RedMax 544256801

SCREW

$6.49

$

Usually ships in 3-10 days

0

7

RedMax 585601901

PLATE CYLINDER

$10.99

$

Usually ships in 3-10 days

0

8

RedMax 585603901

GASKET MUFFLER

$21.99

$

Usually ships in 3-10 days

0

9

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

10

RedMax 588098201

KIT CYLINDER & PISTON

$74.99

$

Usually ships in 3-10 days

0

11

RedMax 588098101

KIT PISTON

$68.99

$

Usually ships in 3-10 days

0

12

RedMax 585601801

GASKET BASE

$5.99

$

In Stock, only 1 left!

0

13

RedMax 506618101

RING, PISTON

$12.99

$

In Stock, Qty 20+

0

14

RedMax 505045201

RING

$4.99

$

In Stock, Qty 20+

0

15

RedMax 576402701

BEARING

$15.99

$

Usually ships in 3-10 days

0
