HBZ 2600 - RedMax Handheld Blower (SN: 00200101 - 50200100) (2002-07) 018 - ENGINE GROUP Parts Diagram

Handheld Blower

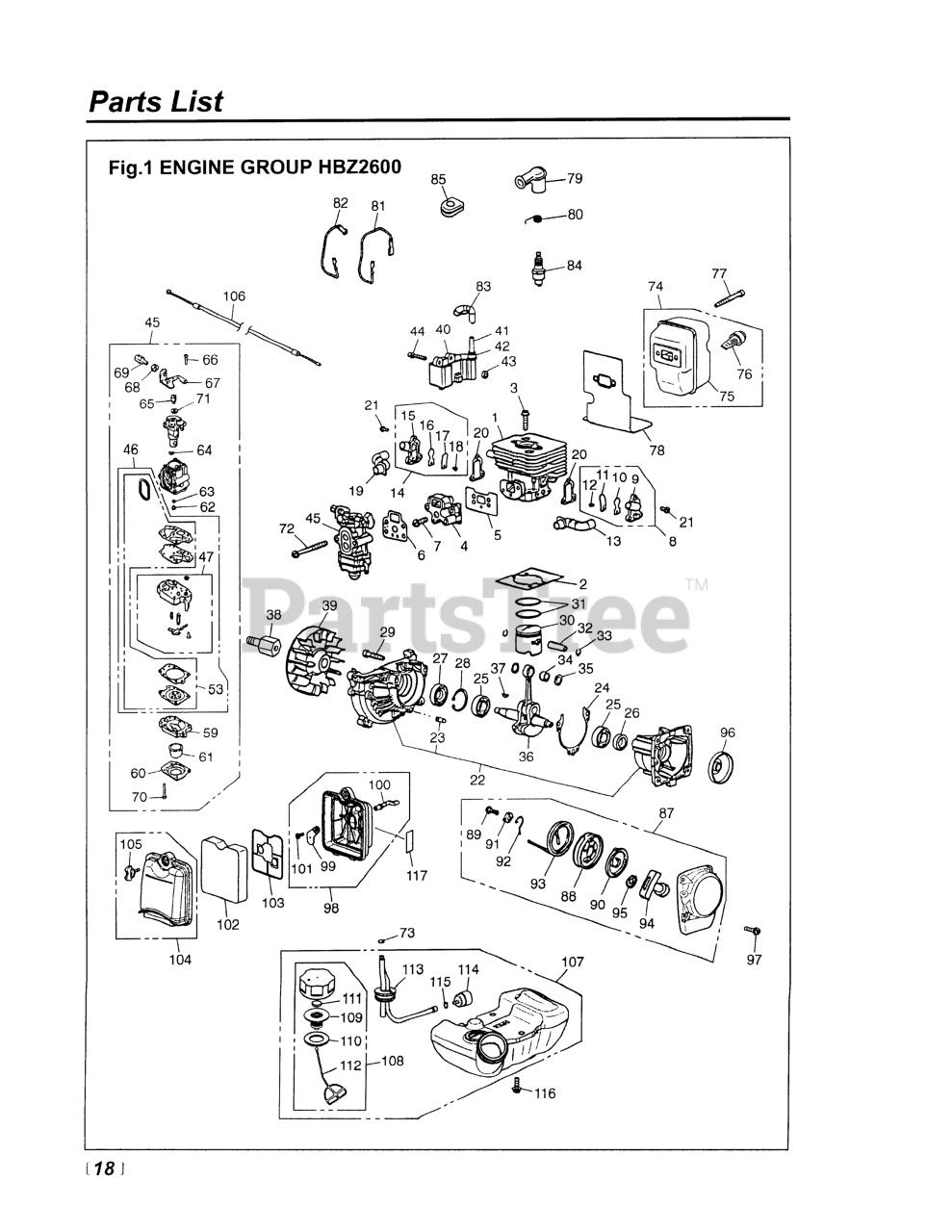

018 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax 481012111

CYLINDER (RPLS -12110)

$

$

Not available

2

RedMax 481012210

GASKET, BASE
(Superseded to 515379301)

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$4.99

$

In Stock, Qty 15

0

4

RedMax 481013162

INSULATOR (RPLS. -13160/13161)
(Superseded to 515379801)

$26.99

$

In Stock, only 1 left!

0

5

RedMax T151213120

GASKET INSULATOR
(Superseded to 512319201)

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 481013130

GASKET, CARBURETOR
(Superseded to 515379601)

$4.99

$

In Stock, only 2 left!

0

7

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, Qty 12

0

8

RedMax 481016100

848-F30-1601
(Superseded to 521609101)

$

$

Not available

9

RedMax 481016110

CASE VALVE
(Superseded to 521338701)

$

$

Not available

10

RedMax 481016120

VALVE, REED
(Superseded to 515380601)

$8.99

$

Usually ships in 3-10 days

0

11

RedMax 481016130

STOPPER
(Superseded to 521338901)

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 481016170

SCREW, M3 x 8
(Superseded to 521339301)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 481016150

PIPE, AIR
(Superseded to 515380901)

$

$

Not available

14

RedMax 481016200

848-F30-1611
(Superseded to 521609301)

$21.99

$

Usually ships in 3-10 days

0

15

RedMax 481016210

848-F30-16B1
(Superseded to 521609301)

$21.99

$

Usually ships in 3-10 days

0

16

RedMax 481016120

VALVE, REED
(Superseded to 515380601)

$8.99

$

Usually ships in 3-10 days

0

17

RedMax 481016130

STOPPER
(Superseded to 521338901)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 481016170

SCREW, M3 x 8
(Superseded to 521339301)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 481016160

PIPE, AIR (F)
(Superseded to 515381001)

$

$

Not available

20

RedMax 481016140

GASKET, VALVE
(Superseded to 515380801)

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 482016310

BOLT, TORX
(Superseded to 521345601)

$2.49

$

In Stock, Qty 8

0

22

RedMax 481021101

CRANKCASE-C

$16.76

$

Usually ships in 3-10 days

0

23

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 481021140

GASKET
(Superseded to 515381801)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, Qty 8

0

26

RedMax 481021210

SEAL
(Superseded to 504121501)

$10.99

$

In Stock, Qty 5

0

27

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

28

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 1 left!

0

29

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

30

RedMax 481041110

PISTON
(Superseded to 515383401)

$

$

Not available

31

RedMax 591041210

RING, PISTON
(Superseded to 529251001)

$7.49

$

Usually ships in 3-10 days

0

32

RedMax T151341310

PIN
(Superseded to 521522601)

$6.49

$

In Stock, Qty 6

0

33

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 20+

0

34

RedMax 550041410

BEARING (RPLS 1140-41330)
(Superseded to 505040901)

$9.99

$

In Stock, only 2 left!

0

35

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

36

RedMax 481042000

CRANKSHAFT COMPLETE
(Superseded to 521613201)

$121.99

$

Usually ships in 3-10 days

0

37

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

In Stock, Qty 9

0

38

RedMax 551643230

EXTENSION
(Superseded to 515426801)

$10.99

$

Usually ships in 3-10 days

0

39

RedMax 481071110

ROTOR
(Superseded to 515384501)

$48.99

$

Usually ships in 3-10 days

0

40

RedMax T151371200

COIL-A
(Superseded to 512321901)

$120.99

$

In Stock, only 2 left!

0

41

RedMax T151371220

CORD (BLACK)
(Superseded to 521750701)

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

In Stock, only 2 left!

0

44

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 20+

0

45

RedMax T151381000

CARBURATOR (USE 848-F3C-8102)

$

$

Not available

46

RedMax 481006030

4810-06031
(Superseded to 521337301)

$79.99

$

Usually ships in 3-10 days

0

47

RedMax 481081450

PUMP BODY ASSEMBLY
(Superseded to 521343901)

$48.99

$

Usually ships in 3-10 days

0

SCREEN

$

$

Not available

VALVE, INLET

$

$

Not available

PIN

$

$

Not available

LEVER

$

$

Not available

53

RedMax 481006021

KIT, GASKET (REPLACES-06020)
(Superseded to 506615501)

$74.99

$

In Stock, only 1 left!

0

DIAPHRAGM

$

$

Not available

GASKET, DIAPHRAGM

$

$

Not available

DIAPHRAGM, PUMP

$

$

Not available

GASKET, PUMP

$

$

Not available

RING, SPRING RETAINING

$

$

Not available

59

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$34.99

$

Usually ships in 3-10 days

0

60

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 12

0

61

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$8.99

$

In Stock, Qty 20+

0

62

RedMax 481081251

JET (REPLACES 4810-81250)
(Superseded to 521343601)

$10.99

$

Usually ships in 3-10 days

0

63

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 4 left!

0

64

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

65

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

66

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

68

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

In Stock, only 4 left!

0

69

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

Usually ships in 3-10 days

0

70

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 3 left!

0

71

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

72

RedMax 482082310

BOLT
(Superseded to 515390701)

$4.99

$

Usually ships in 3-10 days

0

73

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

Usually ships in 3-10 days

0

74

RedMax T151315100

MUFFLER-ASSY
(Superseded to 521750301)

$

$

Not available

75

RedMax T151315110

T1513-15100

$

$

Not available

76

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$10.99

$

In Stock, only 2 left!

0

77

RedMax T495057030

BOLT,TORX, M5X70
(Superseded to 521861901)

$3.99

$

Usually ships in 3-10 days

0

78

RedMax T151315210

GASKET
(Superseded to 521750401)

$

$

Not available

79

RedMax T207072210

CAP

$4.15

$

Usually ships in 3-10 days

0

80

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

In Stock, only 4 left!

0

81

RedMax 481071240

CORD (BLACK)
(Superseded to 521342101)

$6.49

$

Usually ships in 3-10 days

0

82

RedMax 481071250

CORD, EARTH (RED)
(Superseded to 521342201)

$6.49

$

Usually ships in 3-10 days

0

83

RedMax T151371320

TUBE
(Superseded to 521750901)

$

$

Not available

84

RedMax 481073110

3699-91667
(Superseded to 369991667)

$6.49

$

Usually ships in 3-10 days

0

85

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 481075100

RECOIL ASSEMBLY
(Superseded to 515385401)

$67.99

$

Usually ships in 3-10 days

0

88

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, Qty 9

0

89

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

90

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$18.99

$

In Stock, Qty 9

0

91

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 12

0

92

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 12

0

93

RedMax 481075160

ROPE (REPLACES 4500-75160)
(Superseded to 504114901)

$8.99

$

In Stock, only 3 left!

0

94

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.49

$

In Stock, Qty 7

0

95

RedMax 481075170

PLATE, STOPPER
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

96

RedMax 450075210

PULLEY
(Superseded to 504114401)

$10.99

$

In Stock, only 4 left!

0

97

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 4 left!

0

98

RedMax T151382100

BODY A
(Superseded to 511363601)

$31.99

$

In Stock, only 3 left!

0

99

RedMax T151282130

PLATE, CHOKE
(Superseded to 521750101)

$3.99

$

Usually ships in 3-10 days

0

100

RedMax T160082140

LEVER
(Superseded to 521760501)

$4.99

$

In Stock, Qty 12

0

101

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 12

0

102

RedMax T151382170

ELEMENT
(Superseded to 504115301)

$6.49

$

In Stock, Qty 13

0

103

RedMax T151382180

848-F02-83K0
(Superseded to 521607901)

$4.99

$

Usually ships in 3-10 days

0

104

RedMax T151382200

848-F3C-8321
(Superseded to 521611001)

$21.99

$

In Stock, only 1 left!

0

105

RedMax T110882220

KNOB
(Superseded to 506673901)

$4.99

$

In Stock, Qty 14

0

106

RedMax 551683101

CABLE COMP (RPLS, -83100)
(Superseded to 515427701)

$8.99

$

Usually ships in 3-10 days

0

107

RedMax T150485001

T1504-85002
(Superseded to 579141802)

$121.99

$

In Stock, only 1 left!

0

108

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, Qty 7

0

109

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

In Stock, only 1 left!

0

110

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, Qty 8

0

111

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

112

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, Qty 5

0

113

RedMax 481085300

PIPE COMPLETE
(Superseded to 579138306)

$42.99

$

In Stock, only 3 left!

0

114

RedMax 550085400

FILTER (RPLS 1850-85300)
(Superseded to 515418501)

$9.99

$

In Stock, Qty 5

0

115

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 12

0

116

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 4 left!

0

117

RedMax 113382060

LABEL
(Superseded to 516199901)

$3.99

$

Usually ships in 3-10 days

0
