HBZ 2601 - RedMax Handheld Blower (SN: 60100101 & Above) (2007-04) 003 - BLOWER Parts Diagram

Handheld Blower

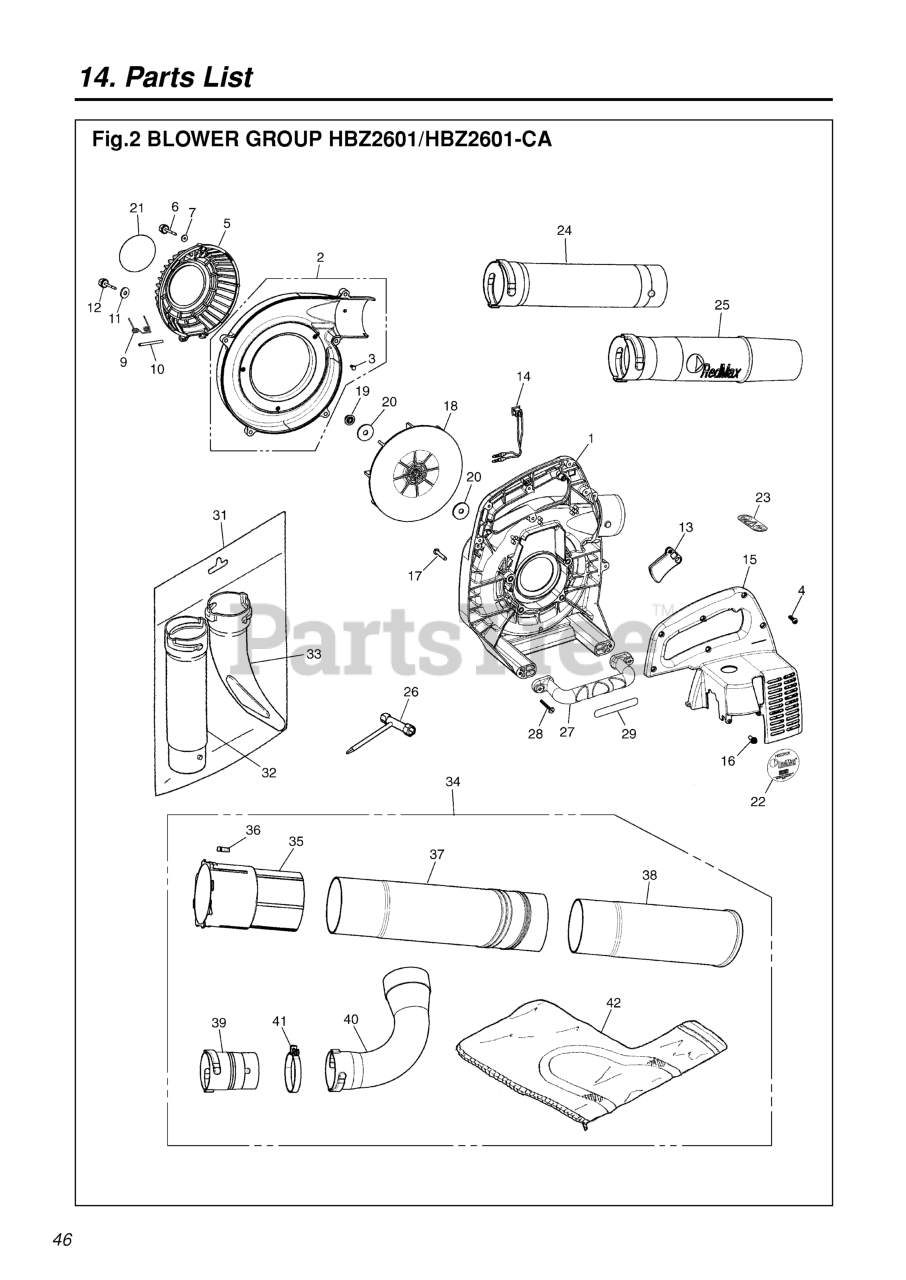

003 - BLOWER Parts Diagram

  • Title
1

RedMax 848L0F55A1

VOLUTE CASE
(Superseded to 511658901)

$

$

Not available

2

RedMax T402211301

VOLUTE COVER ASSY
(Superseded to 521840301)

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 160033130

SCREW
(Superseded to 516385401)

$

$

Not available

4

RedMax T497052000

SCREW TORX
(Superseded to 521863601)

$3.49

$

In Stock, only 4 left!

0

5

RedMax T403331310

GUARD NET
(Superseded to 512725701)

$10.99

$

In Stock, only 1 left!

0

6

RedMax T403331320

SCREW
(Superseded to 574070001)

$4.99

$

Usually ships in 3-10 days

0

7

RedMax T403331330

WASHER
(Superseded to 521844601)

$3.49

$

In Stock, only 1 left!

0

9

RedMax T403331350

SPRING
(Superseded to 521844701)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax T403331360

SHAFT
(Superseded to 521844801)

$3.49

$

In Stock, Qty 7

0

11

$

$

Not available

$

$

Not available

13

RedMax 681111150

LEVER
(Superseded to 515704001)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 681172200

SWITCH
(Superseded to 515705701)

$13.99

$

Usually ships in 3-10 days

0

15

RedMax T402211210

ENGINE COVER
(Superseded to 521840201)

$43.99

$

Usually ships in 3-10 days

0

16

RedMax 482085510

BOLT TORX
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

17

RedMax T496053510

SCREW TORX
(Superseded to 521863201)

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 681112110

FAN
(Superseded to 515704501)

$11.99

$

Usually ships in 3-10 days

0

19

RedMax 165043230

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 681112220

WASHER
(Superseded to 515704701)

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 848L0A90S0

LABEL, CAUTION
(Superseded to 848L0A90S2)

$3.01

$

Usually ships in 3-10 days

0

22

RedMax 848L0G90C0

LABEL, RECOIL

$

$

Not available

23

RedMax 343691170

LABEL, CE CAUTION

$

$

Not available

24

RedMax 681151211

PIPE, STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 15

0

25

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

Usually ships in 3-10 days

0

26

$11.01

$

Usually ships in 3-10 days

0

27

RedMax 848L0A65G0

HANDLE
(Superseded to 521671001)

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 8488553000

SCREW
(Superseded to 521519401)

$3.49

$

In Stock, only 3 left!

0

29

$1.95

$

Usually ships in 3-10 days

0

31

RedMax HBN100

FLAT NOZZLE SET
(Superseded to 529272801)

$

$

Not available

32

RedMax 681151211

PIPE, STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 15

0

33

RedMax 681151230

FLAT NOZZLE
(Superseded to 502444001)

$26.99

$

In Stock, only 1 left!

0

34

RedMax DB00003

VACUUM KIT
(Superseded to 583942601)

$165.99

$

Usually ships in 3-10 days

0

35

RedMax T402752110

PIPE, A
(Superseded to 511950501)

$206.99

$

In Stock, only 1 left!

0

$20.58

$

Usually ships in 3-10 days

0

37

RedMax T402752210

PIPE, B
(Superseded to 512702401)

$109.99

$

Usually ships in 3-10 days

0

38

RedMax T402752310

PIPE, C
(Superseded to 512703501)

$

$

Not available

39

RedMax T402752410

EXTENSION
(Superseded to 521842301)

$

$

Not available

40

RedMax T402752510

ELBOW
(Superseded to 521842401)

$

$

Not available

41

RedMax T402752610

CLAMP
(Superseded to 521842501)

$

$

Not available

42

RedMax T402752710

BAG, DUST
(Superseded to 521842601)

$145.99

$

Usually ships in 3-10 days

0
