HC-1000 - Echo Hedge Trimmer Carburetor Parts Diagram

Hedge Trimmer

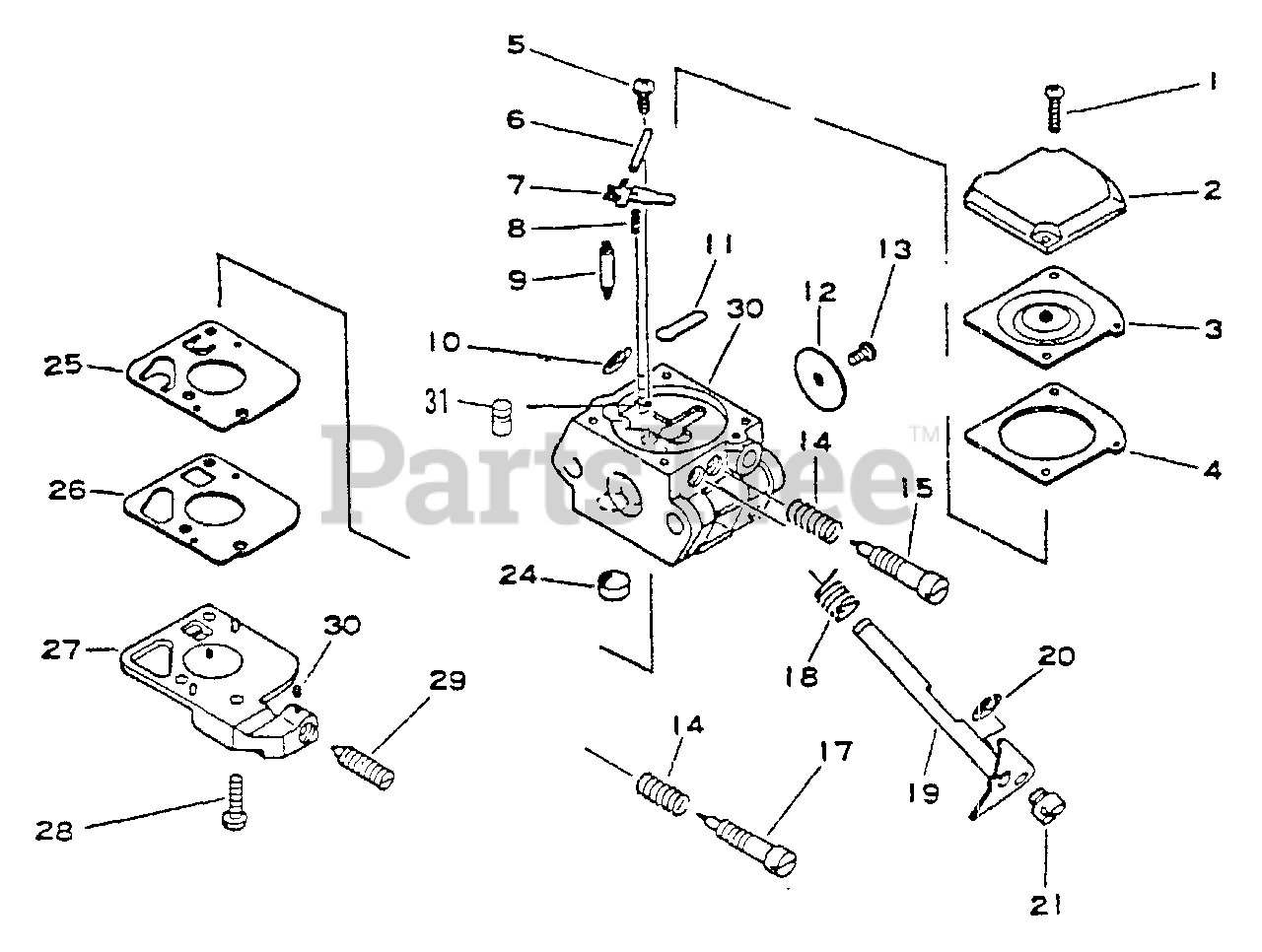

Carburetor Parts Diagram

  • Title

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Included In Kwik Kit P/N 12530042030 & Diaphragm Kit P/N 12530342030

$

$

Not available

4

GASKET, METERING

Note: Included In Kwik Kit P/N 12530042030 & Diaphragm Kit P/N 12530342030

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

7

LEVER, METERING

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

8

SPRING

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

------------------

VALVE, INLET NEEDLE

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

12

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

15

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

19

Echo 12531711820

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

21

Echo 12537240230

SWIVEL

$

$

Currently unavailable

24

STRAINER

Note: Included In Kwik Kit P/N 12530042030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included In Kwik Kit P/N 12530042030 & Diaphragm Kit P/N 12530342030

$

$

Not available

------------------

GASKET, PUMP

Note: Included In Kwik Kit P/N 12530042030 & Diaphragm Kit P/N 12530342030

$

$

Not available

27

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

28

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12537642030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0
