HC-1000 - Echo Hedge Trimmer Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

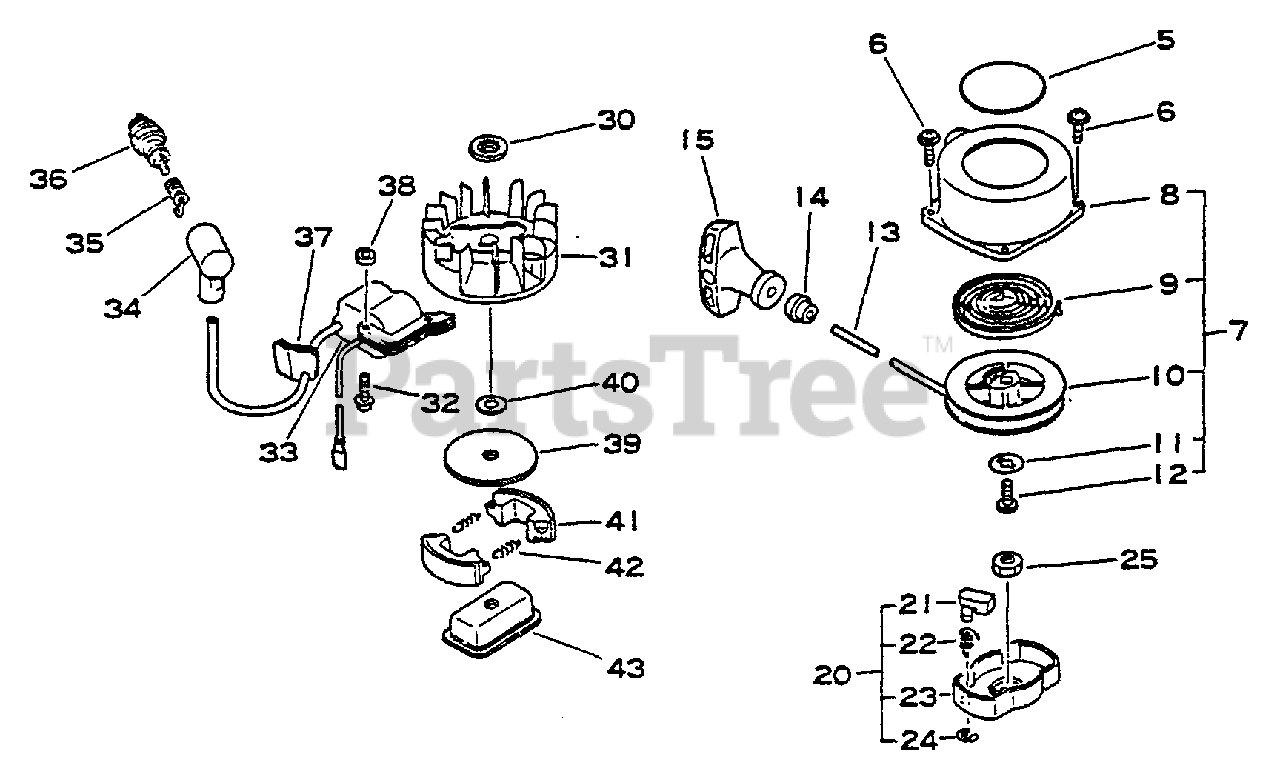

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 89011226730

LABEL, ECHO
(Superseded to Discontinued)

$

$

Not available

6

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

7

Echo 17720042031

STARTER ASSY
(Superseded to 17720042032)

$58.99

$

In Stock, Qty 8

0

8

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

9

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 20+

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 14

0

11

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

13

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 10

0

14

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$19.99

$

In Stock, Qty 12

0

21

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

22

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 20+

0

23

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$19.99

$

In Stock, Qty 12

0

24

Echo 90070000006

RING, RETAINING - 6

$0.99

$

Usually ships in 2-4 days

0

25

Echo 90050300008

NUT M8×1

$0.99

$

In Stock, Qty 20+

0

30

Echo 10014342030

WASHER
(Superseded to Discontinued)

$

$

Not available

31

Echo 15080142030

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

32

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

33

Echo 15060104560

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

34

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 7

0

35

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

36

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

37

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

38

Echo 15011709130

WASHER

$1.99

$

Usually ships in 2-4 days

0

39

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

40

Echo 10013206720

WASHER

$2.49

$

Usually ships in 2-4 days

0

41

Echo 17501704631

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

42

Echo 17501806530

SPRING, CLUTCH

$4.99

$

In Stock, only 1 left!

0

43

Echo 17501604920

BOSS, CLUTCH

$14.99

$

In Stock, only 1 left!

0
