HC-1000 - Echo Hedge Trimmer Engine, Crankcase, Fan Housing, Cover Parts Diagram

Hedge Trimmer

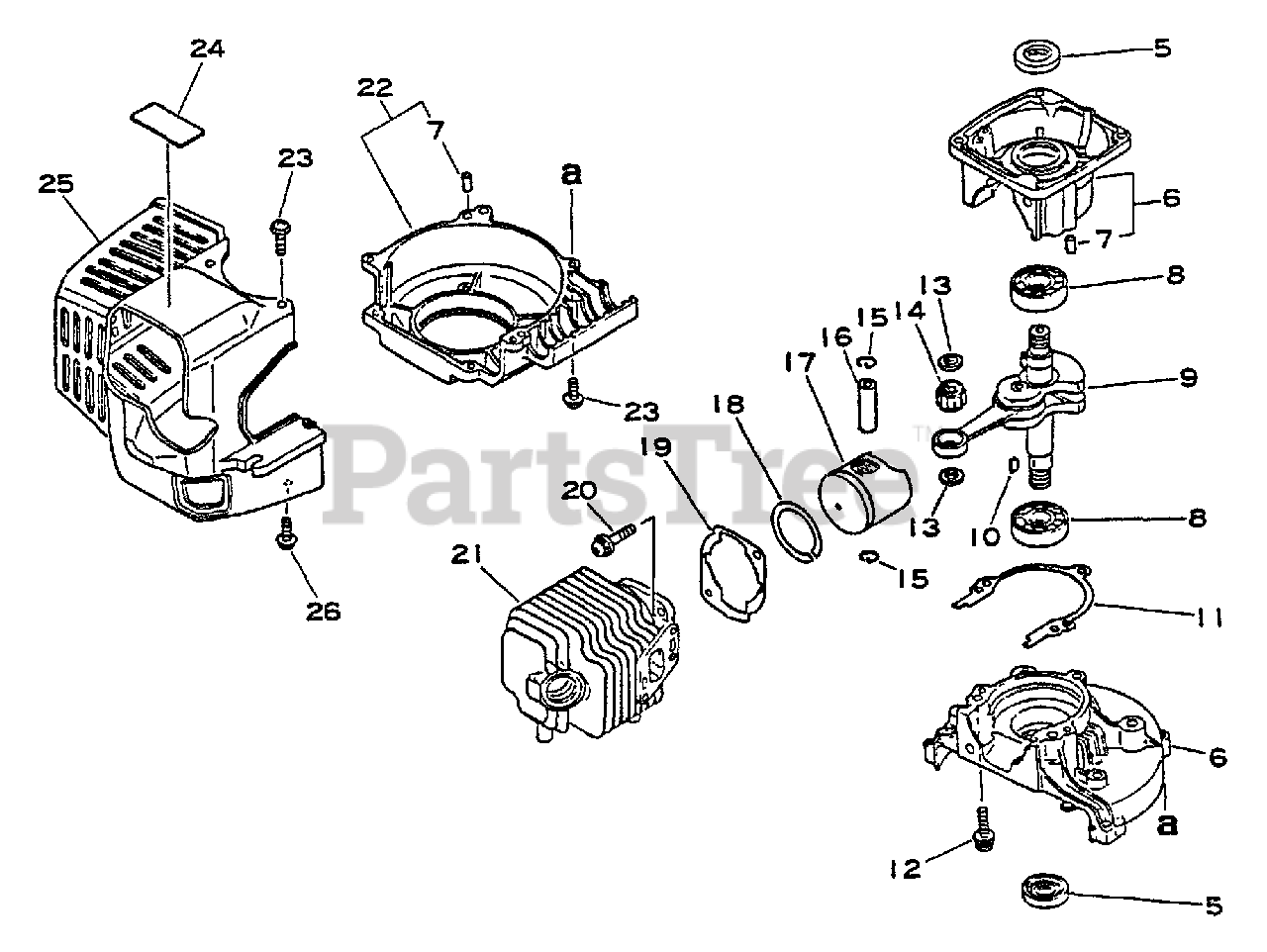

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

6

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

7

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

8

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

9

Echo 10010042030

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

10

Echo 10014242030

KEY, WOODRUFF
(Superseded to 10014239130)

$3.49

$

In Stock, Qty 6

0

11

GASKET, CRANKCASE

Note: Use Gasket Kit 88900042031

$

$

Not available

12

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

13

Echo 10001442030

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001208020

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

15

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

16

Echo 10001322330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

17

Echo 10001040630

PISTON
(Superseded to 10000040630)

$96.99

$

In Stock, only 1 left!

0

18

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

19

Echo 10101044330

GASKET, CYLINDER
(Superseded to 10101044331)

Note: Use Gasket Kit 88900042031

$4.99

$

In Stock, Qty 6

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 10101142030

CYLINDER
(Superseded to 10101147630)

$151.99

$

Usually ships in 2-4 days

0

22

Echo 10151104560

COVER, FAN

$57.99

$

Usually ships in 2-4 days

0

23

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

24

Echo 89011204560

LABEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 10151404560

COVER, ENGINE - ORANGE
(Superseded to 10151406460)

$26.99

$

Usually ships in 2-4 days

0

26

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0
