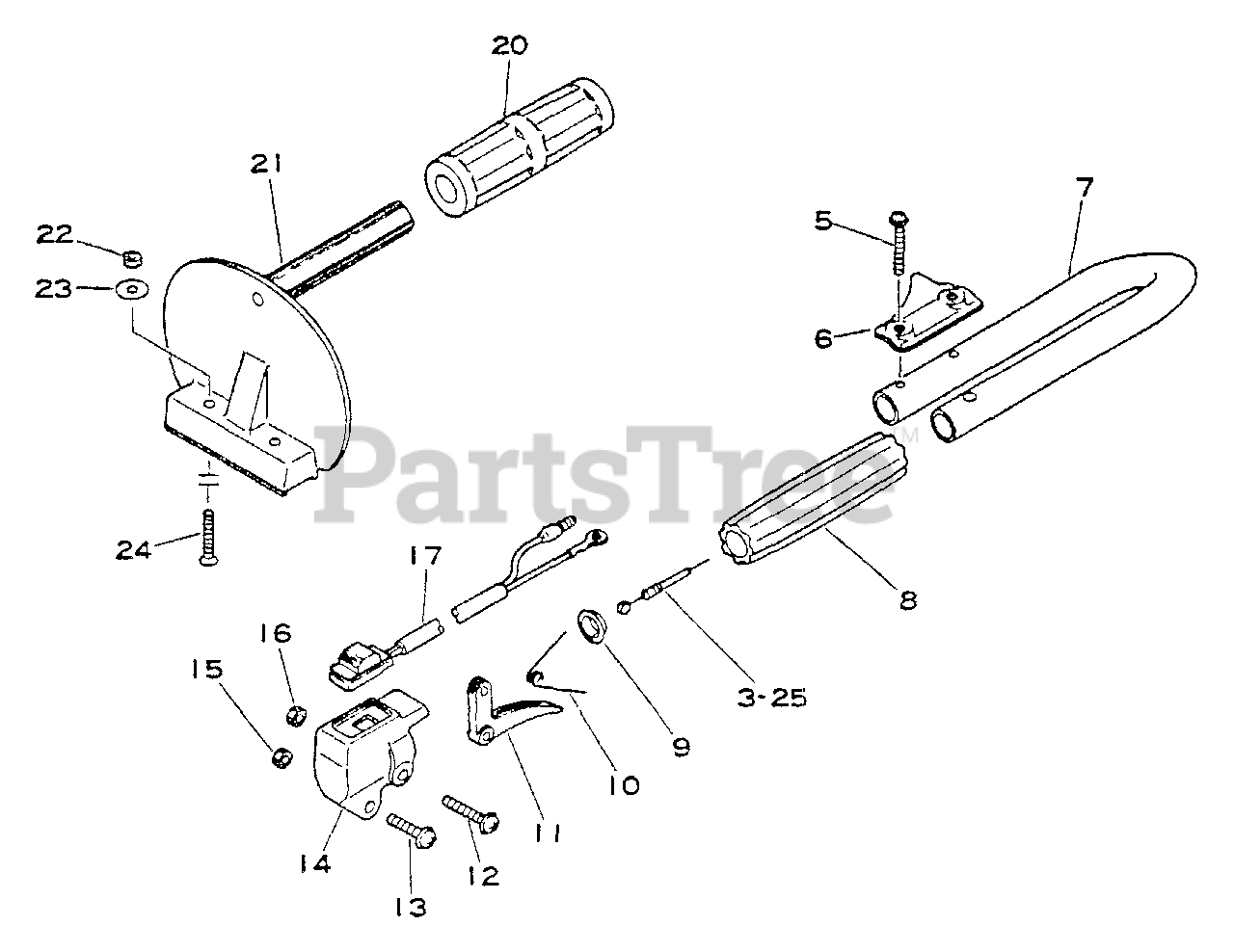

HC-1000 - Echo Hedge Trimmer Handles, Ignition Switch, Throttle Parts Diagram

Hedge Trimmer

Handles, Ignition Switch, Throttle Parts Diagram

  • Title

5

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35121704560

BRACKET, HANDLE
(Superseded to 35121704561)

$

$

Not available

7

Echo 35121004560

HANDLE - REAR
(Superseded to 35121004561)

$

$

Not available

8

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

9

Echo 17811204560

CLIP

$2.99

$

Usually ships in 2-4 days

0

10

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

11

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 1 left!

0

12

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

13

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

14

Echo 17802441830

BRACKET, THROTTLE
(Superseded to 17802451830)

$8.49

$

Usually ships in 2-4 days

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

17

Echo 16340006460

SWITCH

$11.99

$

Usually ships in 2-4 days

0

20

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

21

Echo 35101002060

HANDLE, FRONT

$55.99

$

Usually ships in 2-4 days

0

22

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

23

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

24

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

25

Echo 17800104560

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available
