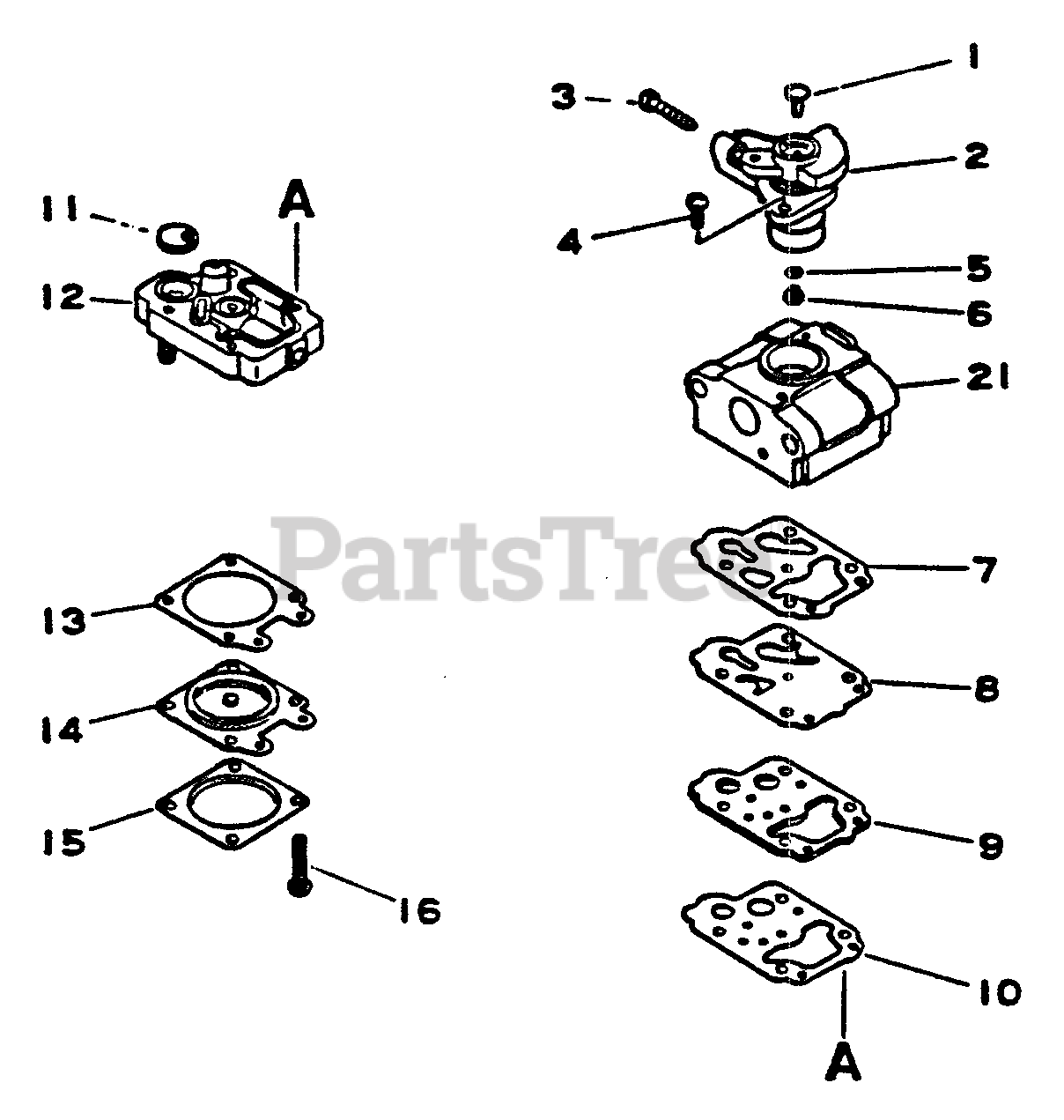

  • Title

Echo 12300005160

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

Echo 12314644330

PLUG

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12311605160

VALVE ASSY, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

3

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

5

O-RING

Note: INCLUDED IN 12310044430 & 12310144330

$

$

Not available

6

JET

Note: INCLUDED IN 12310044430

$

$

Not available

7

GASKET, PUMP

Note: INCLUDED IN 12310044430 & 12310144330

$

$

Not available

8

DIAPHRAGM, PUMP

Note: INCLUDED IN 12310044430 & 12310144330

$

$

Not available

9

Echo 12316040630

COVER, PUMP

$4.99

$

Usually ships in 2-4 days

0

10

GASKET, PLATE

Note: INCLUDED IN 12310044430 & 12310144330

$

$

Not available

11

STRAINER

Note: INCLUDED IN 12310044430

$

$

Not available

12

PUMP BODY ASSY

Note: INCLUDED IN 12310044430

$

$

Not available

13

GASKET, DIAPHRAGM

Note: INCLUDED IN 12310044430 & 12310144330

$

$

Not available

14

DIAPHRAGM, METERING

Note: INCLUDED IN 12310044430

$

$

Not available

15

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

16

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

16

Echo 90072000015

O-RING 15

Note: INCLUDED IN 12310044430 & 12310144330

$2.49

$

In Stock, Qty 11

0

16

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

Note: INCLUDED IN 12310044430

$2.99

$

In Stock, Qty 8

0

Echo 12310044430

REPAIR KIT, CARBURETOR

$33.99

$

Usually ships in 2-4 days

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

$22.99

$

Usually ships in 2-4 days

0
