HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Hedge Trimmer

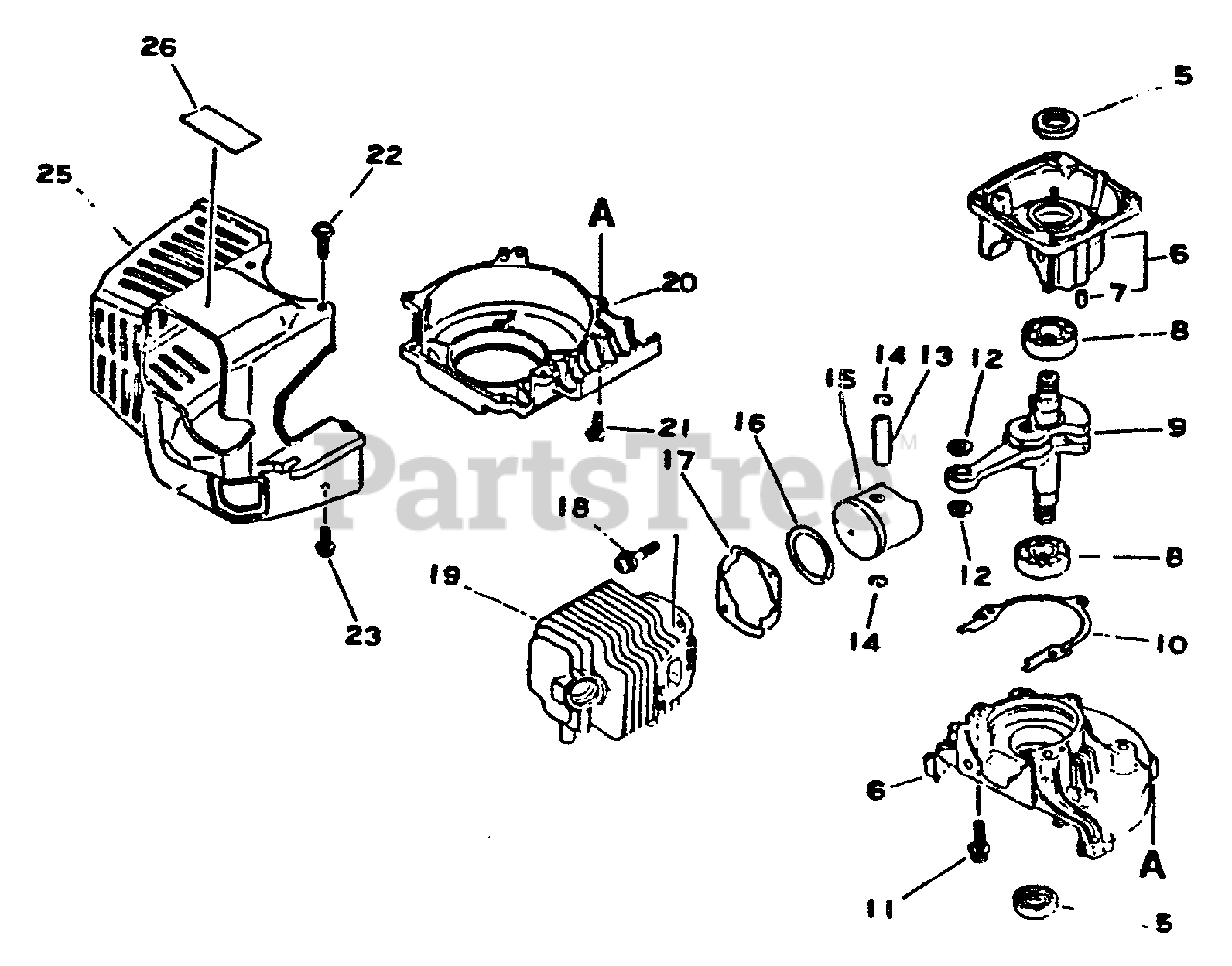

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

6

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

7

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

8

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

9

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

$283.99

$

Usually ships in 2-4 days

0

10

GASKET, CRANKCASE

Note: Use Gasket Kit, P/N 88900044330

$

$

Not available

11

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

12

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

13

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

14

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

15

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

16

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

17

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Included In GASKET KIT 88900044330

$4.99

$

In Stock, Qty 6

0

18

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

19

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$153.99

$

Usually ships in 2-4 days

0

20

Echo 10151104560

COVER, FAN

$57.99

$

Usually ships in 2-4 days

0

21

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

22

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

23

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 10151404560

COVER, ENGINE - ORANGE
(Superseded to 10151406460)

$26.99

$

Usually ships in 2-4 days

0

26

Echo 89011205160

LABEL
(Superseded to Discontinued)

$

$

Not available

Echo SB1002

SHORT BLOCK - SB1002
(Superseded to Discontinued)

$

$

Not available

Echo 88900044330

GASKET KIT
(Superseded to 88900044332)

$44.99

$

Usually ships in 2-4 days

0
