HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Fuel System Parts Diagram

Hedge Trimmer

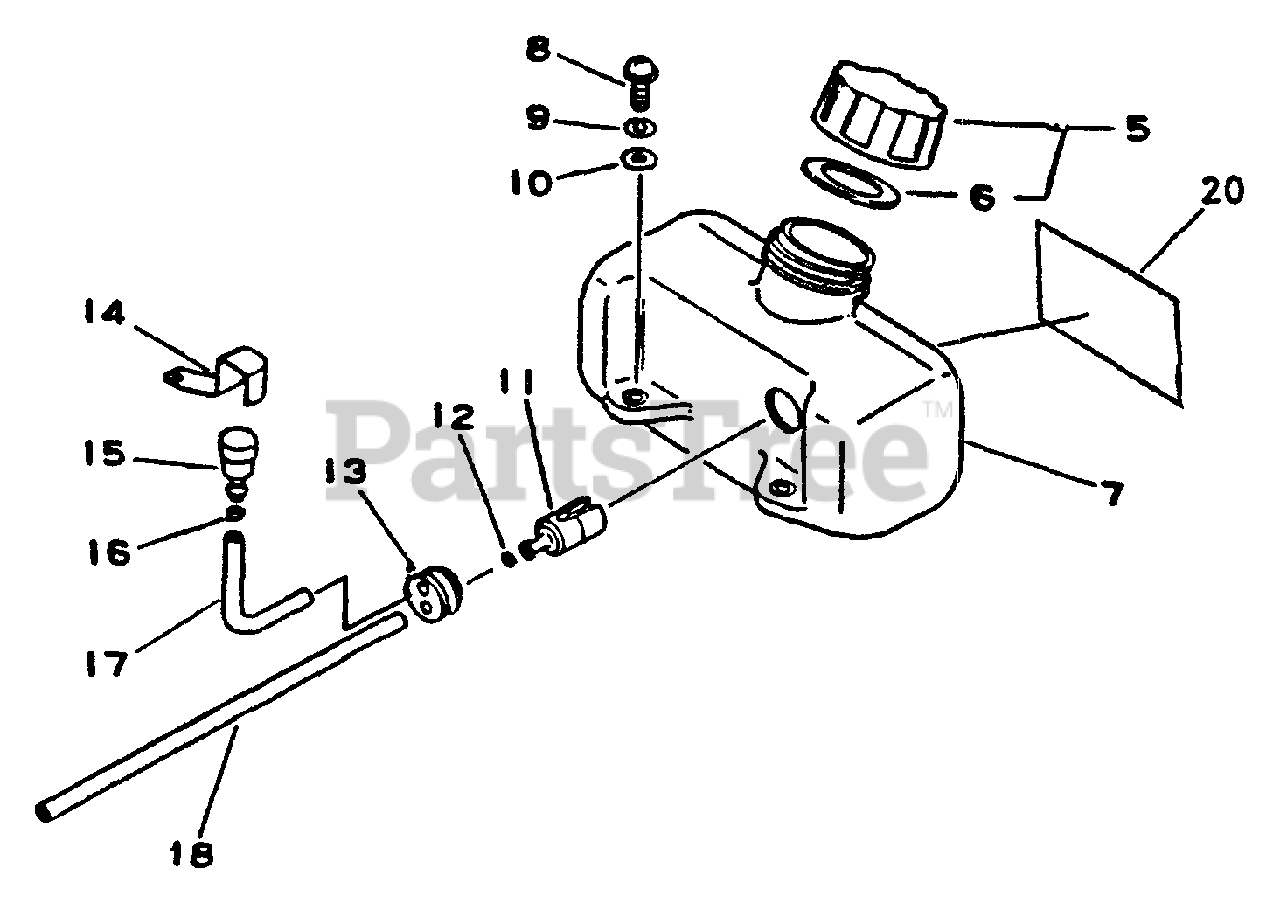

Fuel System Parts Diagram

  • Title

5

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

$

$

Not available

6

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

7

Echo 13100504560

TANK, FUEL
(Superseded to 13100504561)

$16.99

$

Usually ships in 2-4 days

0

8

Echo 90022005016

SCREW 5×16

$0.99

$

In Stock, Qty 6

0

9

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

10

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

12

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

13

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

14

Echo 13132304560

HOLDER

$4.49

$

Usually ships in 2-4 days

0

15

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

16

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

17

Echo 13201204631

PIPE, FUEL 3×5×80 BLACK

Note: RePower BULK OPTION: 90015

$

$

Not available

18

Echo 13201007530

PIPE, FUEL
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, only 2 left!

0

20

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

Note: CANADA MODEL

$

$

Not available
