HC-1001 - Echo Hedge Trimmer (SN: 008001 - 017000) Gear Case, Blades, Clutch Drum, Tools Parts Diagram

Hedge Trimmer

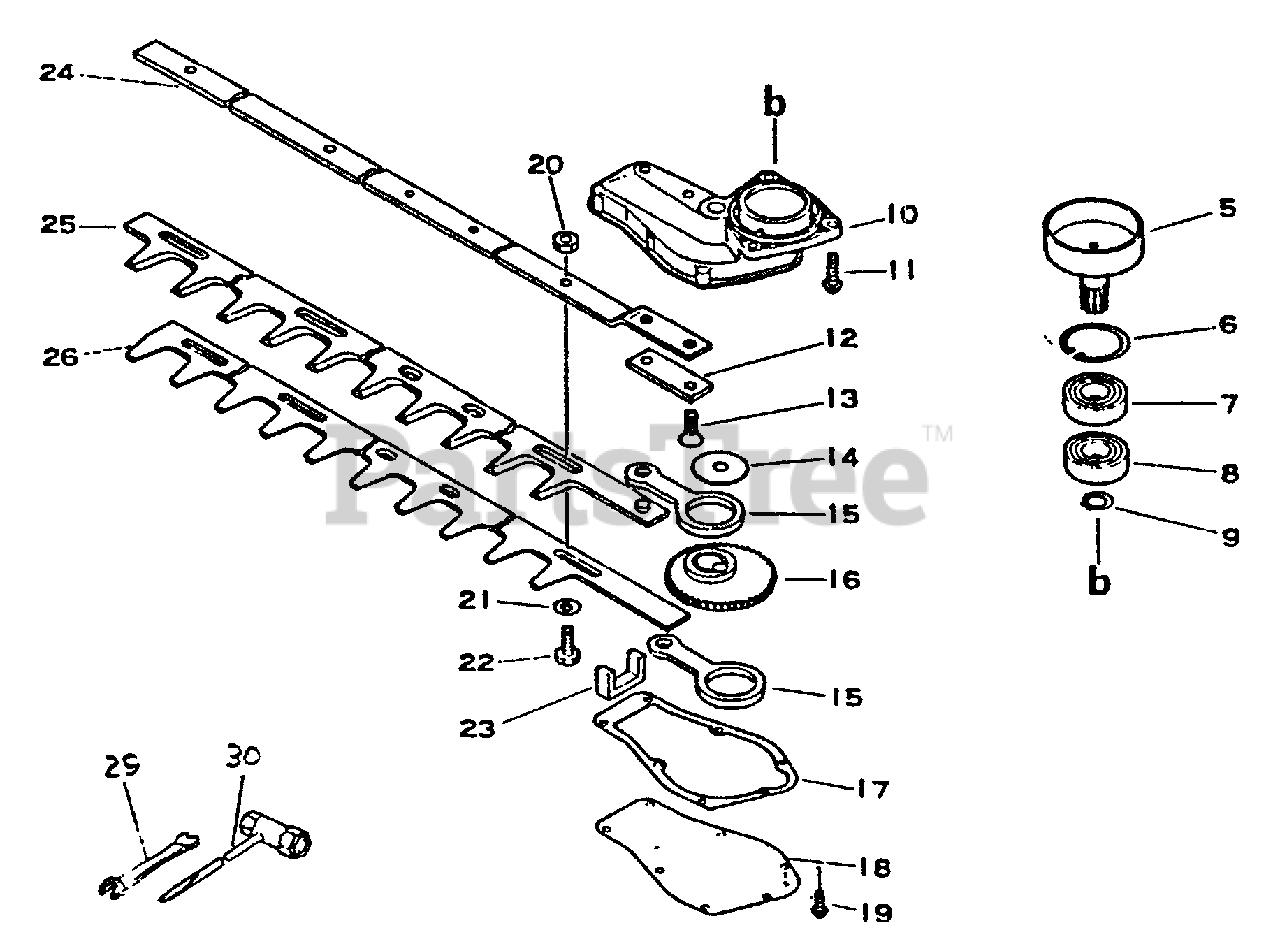

Gear Case, Blades, Clutch Drum, Tools Parts Diagram

  • Title

5

Echo 17500504560

DRUM, CLUTCH

$48.99

$

In Stock, only 3 left!

0

6

Echo 90070200035

RING, RETAINING - 35

$2.49

$

In Stock, Qty 11

0

7

Echo 90081336202

BEARING, BALL - 6202

$11.99

$

In Stock, only 1 left!

0

8

Echo 90081036202

BEARING, BALL - 6202

$10.99

$

In Stock, only 2 left!

0

9

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 2 left!

0

10

Echo 61040704560

CASE, GEAR
(Superseded to 61040704561)

$128.99

$

Usually ships in 2-4 days

0

11

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

12

Echo 61044004560

GUIDE

$2.49

$

In Stock, Qty 5

0

13

Echo 90021206018

SCREW - 6X18

$0.99

$

Usually ships in 2-4 days

0

14

Echo 61035004560

WASHER

$1.49

$

In Stock, only 4 left!

0

15

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$26.99

$

In Stock, only 3 left!

0

16

Echo 61031204560

GEAR - DRIVE

$84.99

$

In Stock, only 4 left!

0

17

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0

18

Echo 61041104560

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

19

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

20

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

21

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 69911504560

BOLT

$2.99

$

In Stock, Qty 8

0

23

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, only 3 left!

0

24

Echo 69911004560

SUPPORT, BLADE
(Superseded to 69911704560)

$

$

Not available

Echo 69700004560

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

25

Echo 69701004560

BLADE - UPPER
(Superseded to 69701204560)

$62.99

$

Usually ships in 2-4 days

0

26

Echo 69701104560

BLADE - LOWER
(Superseded to 69701104561)

$62.99

$

Usually ships in 2-4 days

0

29

Echo 59511200330

SPANNER - 8X10mm

$

$

Currently unavailable

30

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.99

$

In Stock, only 3 left!

0
