HC-1001 - Echo Hedge Trimmer (SN: 008001 - 017000) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

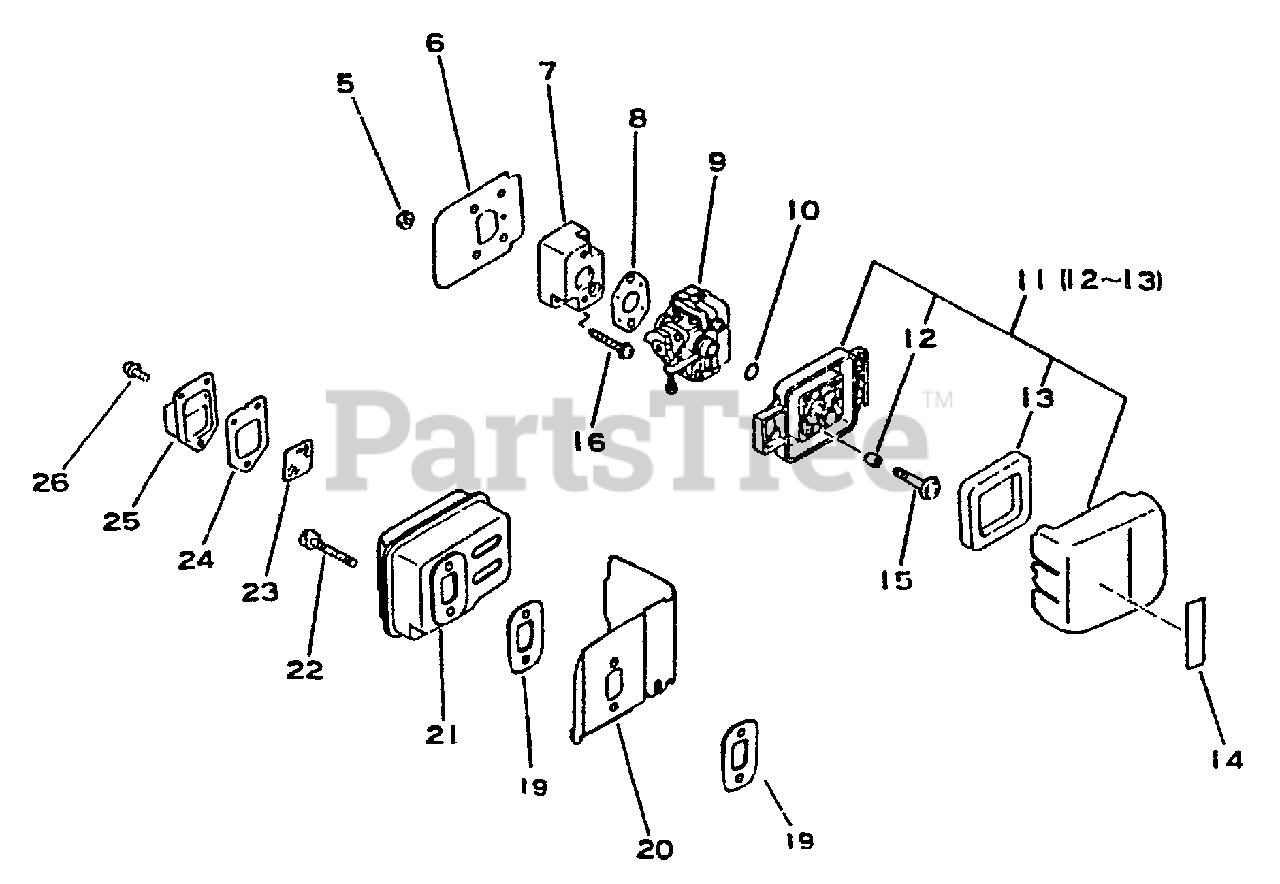

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

7

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, only 4 left!

0

8

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.99

$

In Stock, Qty 8

0

9

Echo 12300004860

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

10

Echo 90072000015

O-RING 15

$2.49

$

In Stock, Qty 11

0

11

Echo 13030044430

AIR FILTER ASSY
(Superseded to 13030045130)

$37.99

$

Usually ships in 2-4 days

0

12

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

13

Echo 13031044330

FILTER, AIR

$5.99

$

In Stock, Qty 20+

0

14

UNKNOWN

$

$

Not available

15

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

16

Echo 90024205022

SCREW 5×22

$0.99

$

In Stock, Qty 7

0

19

Echo V104000160

GASKET, EXHAUST

Note: Included in Muffler Assembly, P/N 14580005161

$2.49

$

In Stock, Qty 20+

0

20

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

Note: Included in Muffler Assembly, P/N 14580005161

$5.99

$

In Stock, only 2 left!

0

21

Echo 14581044330

MUFFLER

Note: Included in Muffler Assembly, P/N 14580005161

$43.99

$

Usually ships in 2-4 days

0

22

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

23

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: Included in Muffler Assembly, P/N 14580005161

$2.49

$

In Stock, Qty 20+

0

24

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Assembly, P/N 14580005161

$2.99

$

In Stock, only 2 left!

0

25

Echo 14580904560

LID, MUFFLER
(Superseded to 14580904561)

Note: Included in Muffler Assembly, P/N 14580005161

$7.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

Note: Included in Muffler Assembly, P/N 14580005161

$0.99

$

In Stock, Qty 20+

0

Echo 14580005161

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available
