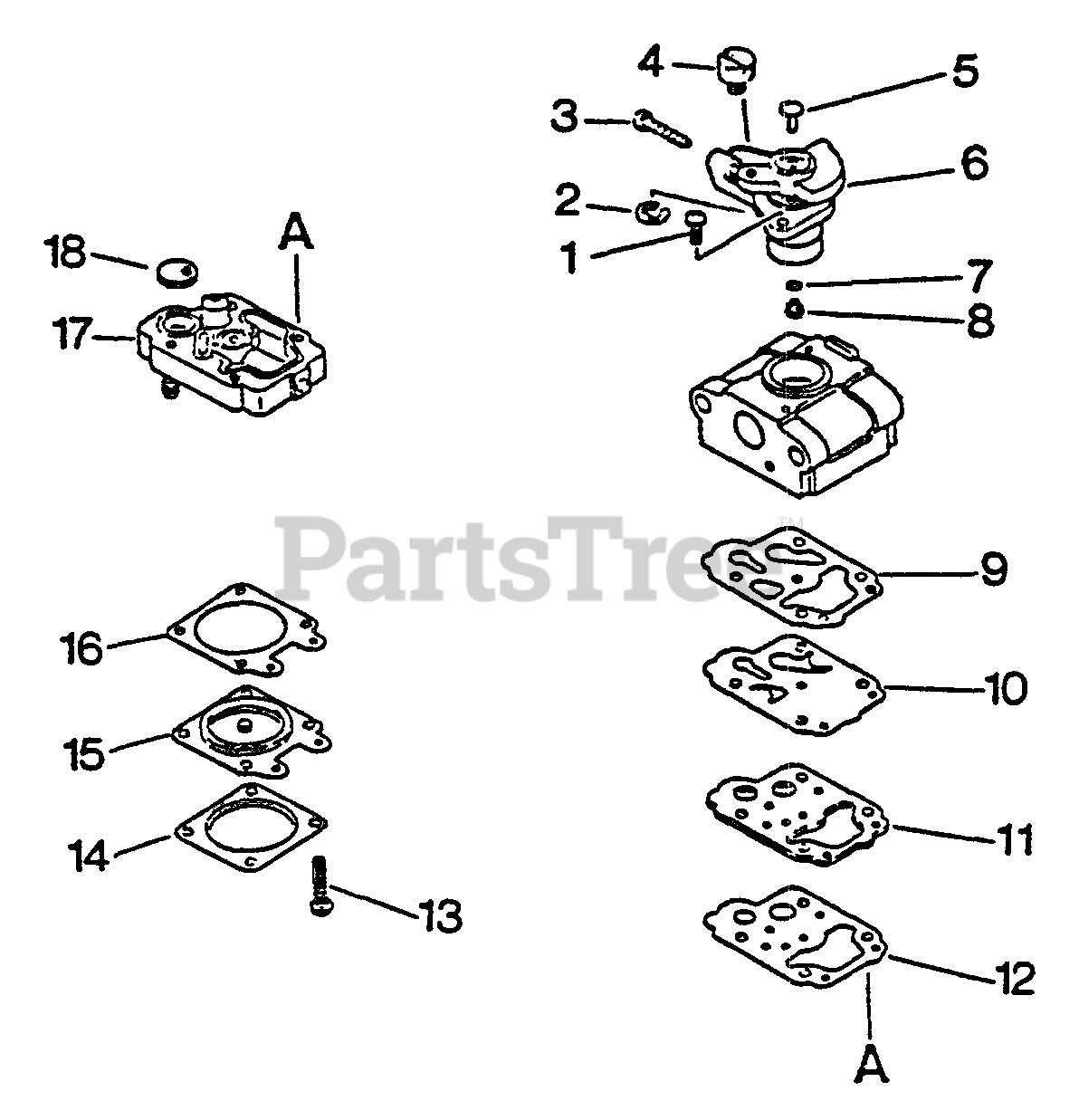

HC-1001 - Echo Hedge Trimmer (SN: 017001 - 024000) Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12300004860

CARBURETOR WYL-7
(Superseded to Discontinued)

Note: Includes ITEMS 1-16

$

$

Not available

1

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

6

Echo 12311604860

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

7

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

8

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

9

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

9

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

10

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

10

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

11

Echo 12316040630

PLATE, PUMP

$4.49

$

Usually ships in 2-4 days

0

12

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

12

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

13

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12314203930

COVER, METERING

$4.49

$

In Stock, only 2 left!

0

15

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

16

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

16

Echo 12310144430

DIAPHRAGM/GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

17

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

18

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

$30.99

$

Usually ships in 2-4 days

0

A

Echo 12310244430

REPAIR KIT
(Superseded to 12310044430)

Note: Includes Items 7-10, 12, 15-18

$30.99

$

Usually ships in 2-4 days

0

B

Echo 12310144430

DIAPHRAGM/GASKET KIT

Note: Includes Items 7, 9, 10, 12 8 16

$21.99

$

Usually ships in 2-4 days

0
