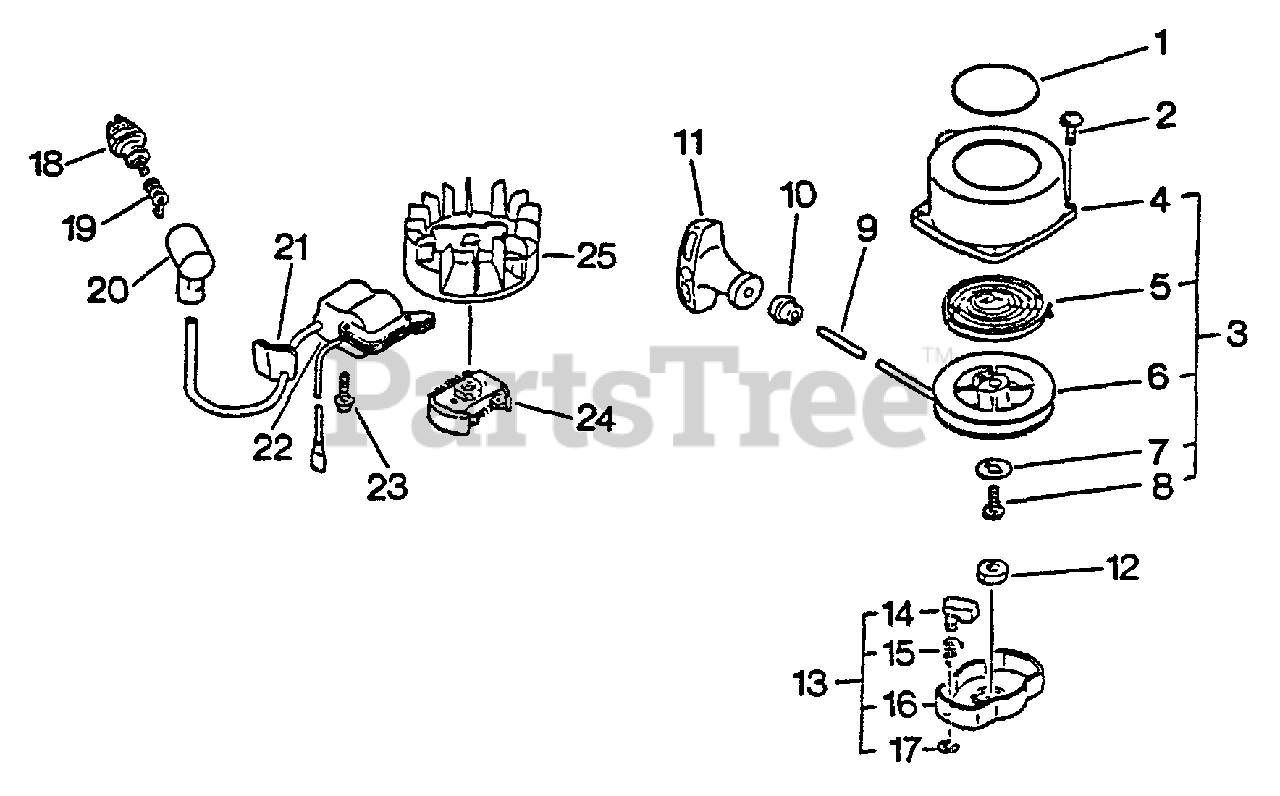

HC-1001 - Echo Hedge Trimmer (SN: 017001 - 024000) Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

2

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 17720042030

STARTER ASSY
(Superseded to 17720042031)

Note: Includes Items 4-11

$58.99

$

In Stock, Qty 11

0

4

Echo 17723242032

CASE, STARTER

$24.99

$

In Stock, only 2 left!

0

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, only 4 left!

0

6

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 9

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

9

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

10

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

11

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

12

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

13

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: Includes ITEMS 14-17

$19.99

$

In Stock, only 3 left!

0

14

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$19.99

$

In Stock, only 3 left!

0

15

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 14

0

16

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

17

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

18

Echo 15902603930

SPARK PLUG -- CJ-8
(Superseded to CJ8)

$3.99

$

In Stock, Qty 20+

0

19

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

20

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0

21

Echo 15011242030

COVER, DUST

$3.49

$

Usually ships in 2-4 days

0

22

Echo 15060104560

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

24

Echo 17500044330

CLUTCH ASSY
(Superseded to 17500042031)

$32.99

$

In Stock, only 2 left!

0

25

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$135.99

$

Usually ships in 2-4 days

0
