HC-1001 - Echo Hedge Trimmer (SN: 017001 - 024000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Hedge Trimmer

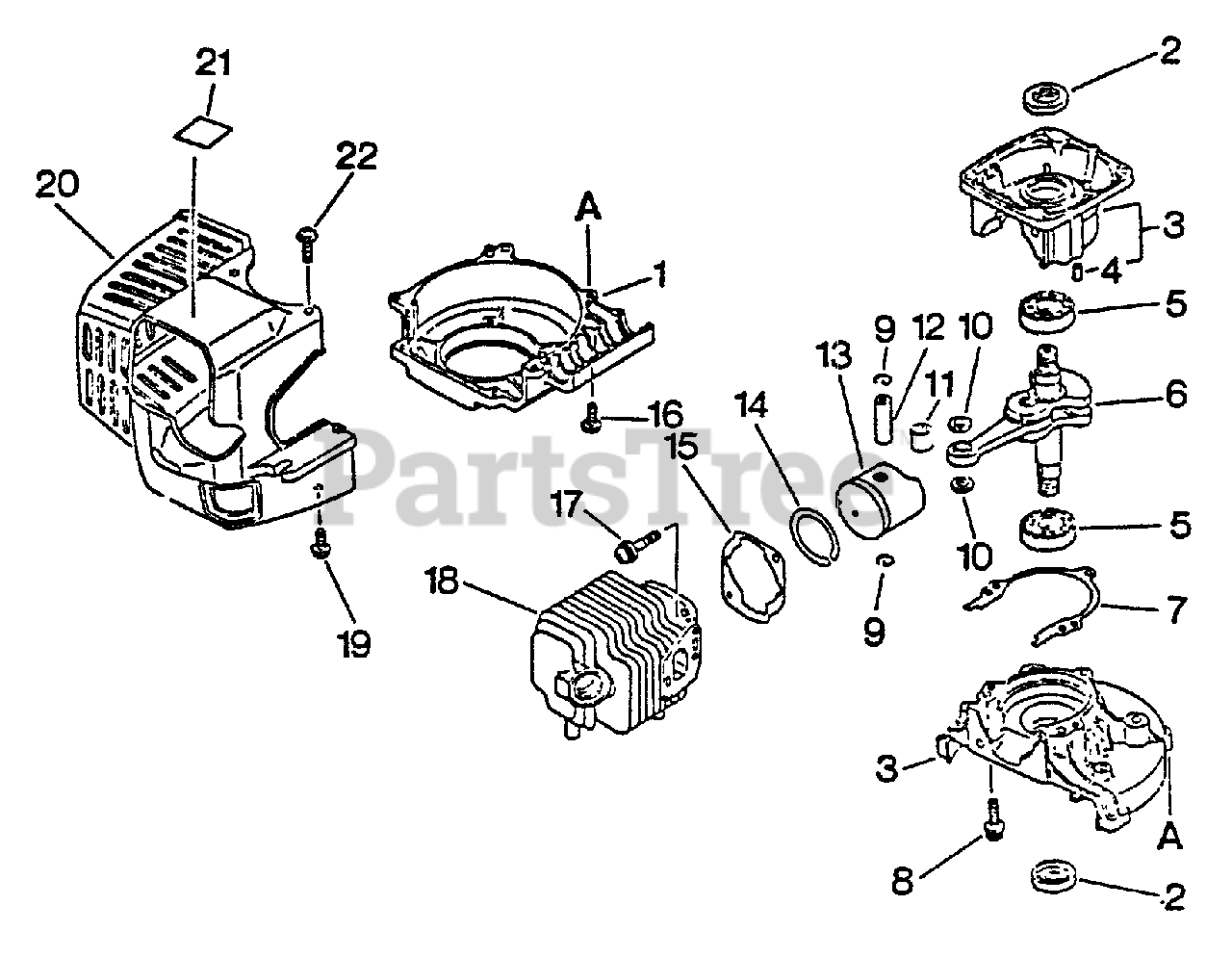

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10151104560

COVER, FAN

$57.99

$

Usually ships in 2-4 days

0

2

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

3

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEM 4

$157.99

$

Usually ships in 2-4 days

0

4

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

5

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

6

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

Note: Includes ITEM 9

$283.99

$

Usually ships in 2-4 days

0

7

GASKET, CRANKCASE

Note: Use Kit 88900044331

$

$

Not available

8

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

9

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

10

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

11

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

12

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

13

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

14

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

15

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Kit 88900044331

$4.99

$

In Stock, Qty 6

0

16

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

17

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

18

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

19

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10151404560

COVER, ENGINE - ORANGE
(Superseded to 10151406460)

$26.99

$

Usually ships in 2-4 days

0

20

Echo 10151406460

COVER, ENGINE - GRAY
(Superseded to 10151406461)

$26.99

$

Usually ships in 2-4 days

0

21

Echo 89011506460

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

22

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

Echo 88900044331

GASKET KIT
(Superseded to 88900044332)

$44.99

$

Usually ships in 2-4 days

0
