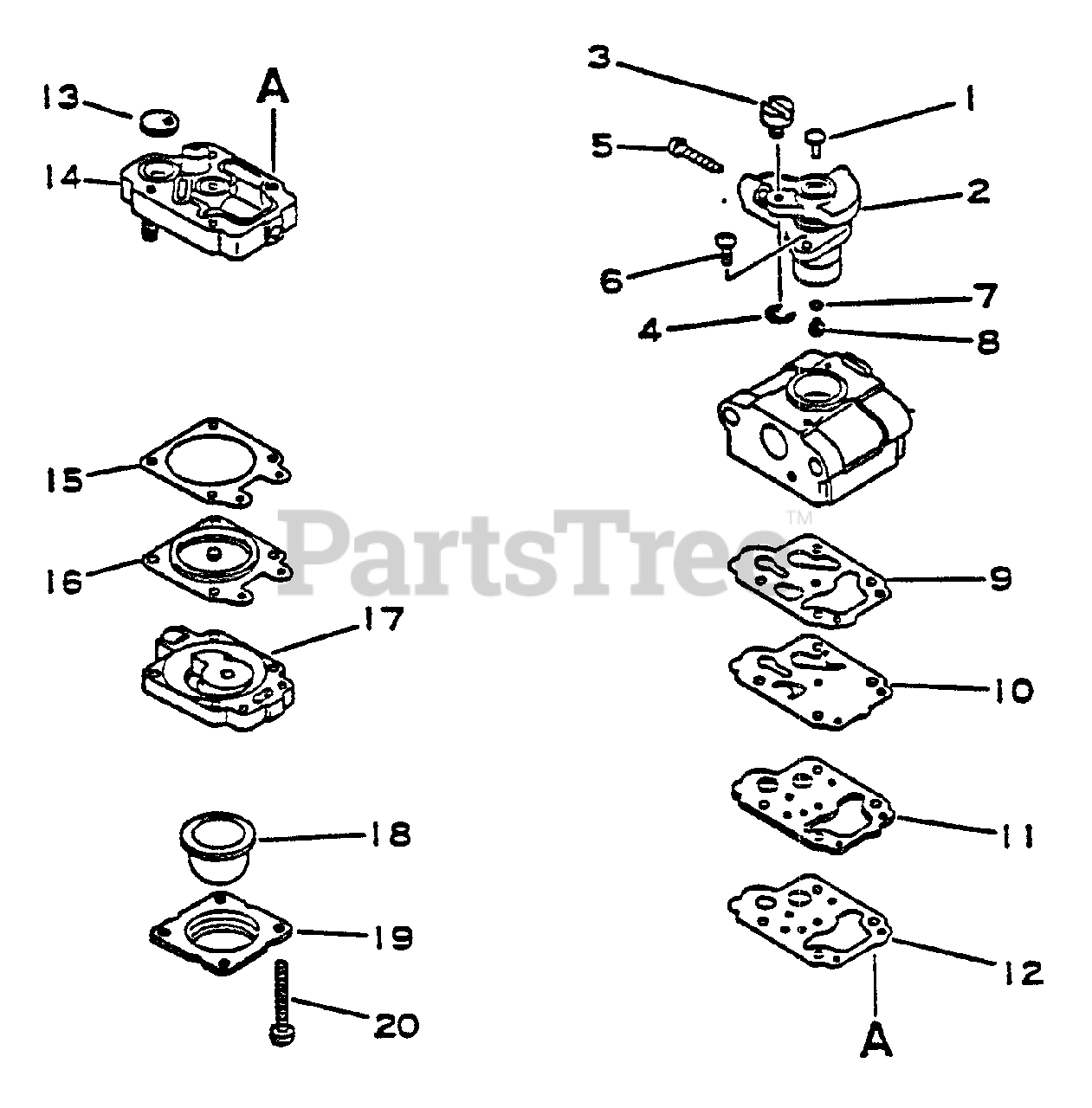

HC-1001 - Echo Hedge Trimmer (SN: 024001 - 999999) Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12300006460

CARBURETOR - WYL-11
(Superseded to Discontinued)

Note: Includes ITEMS 1-20

$

$

Not available

1

Echo 12314644330

PLUG

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12311645130

THROTTLE VALVE ASSY

$22.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

4

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

5

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

6

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

7

O-RING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

8

JET

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

------------------

GASKET, PUMP

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

11

Echo 12316040630

COVER, PUMP

$4.99

$

Usually ships in 2-4 days

0

12

GASKET, PLATE

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

13

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

14

BASE, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

15

GASKET, METERING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

16

DIAPHRAGM, METERING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

17

BASE, PURGE

Note: Included in carb. repair kit P/N 12310006460

$

$

Not available

18

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

19

Echo 12314202960

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

20

Echo 12311040630

SCREW

$0.99

$

Usually ships in 2-4 days

0

Echo 12310148730

DIAPHRAGM/GASKET KIT

Note: Includes Items Below

$13.99

$

Usually ships in 2-4 days

0

O-RING

$

$

Not available

GASKET, PUMP

$

$

Not available

DIAPHRAGM, PUMP

$

$

Not available

GASKET, PLATE

$

$

Not available

GASKET, METERING

$

$

Not available

DIAPHRAGM, METERING

$

$

Not available

Echo 12310006460

REPAIR KIT WYL-11
(Superseded to Discontinued)

Note: Includes Items Below

$

$

Not available

Echo 12310148730

DIAPHRAGM/GASKET KIT

$13.99

$

Usually ships in 2-4 days

0

JET

$

$

Not available

STRAINER

$

$

Not available

BASE, PURGE

$

$

Not available
