HC-1001 - Echo Hedge Trimmer (SN: 024001 - 999999) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

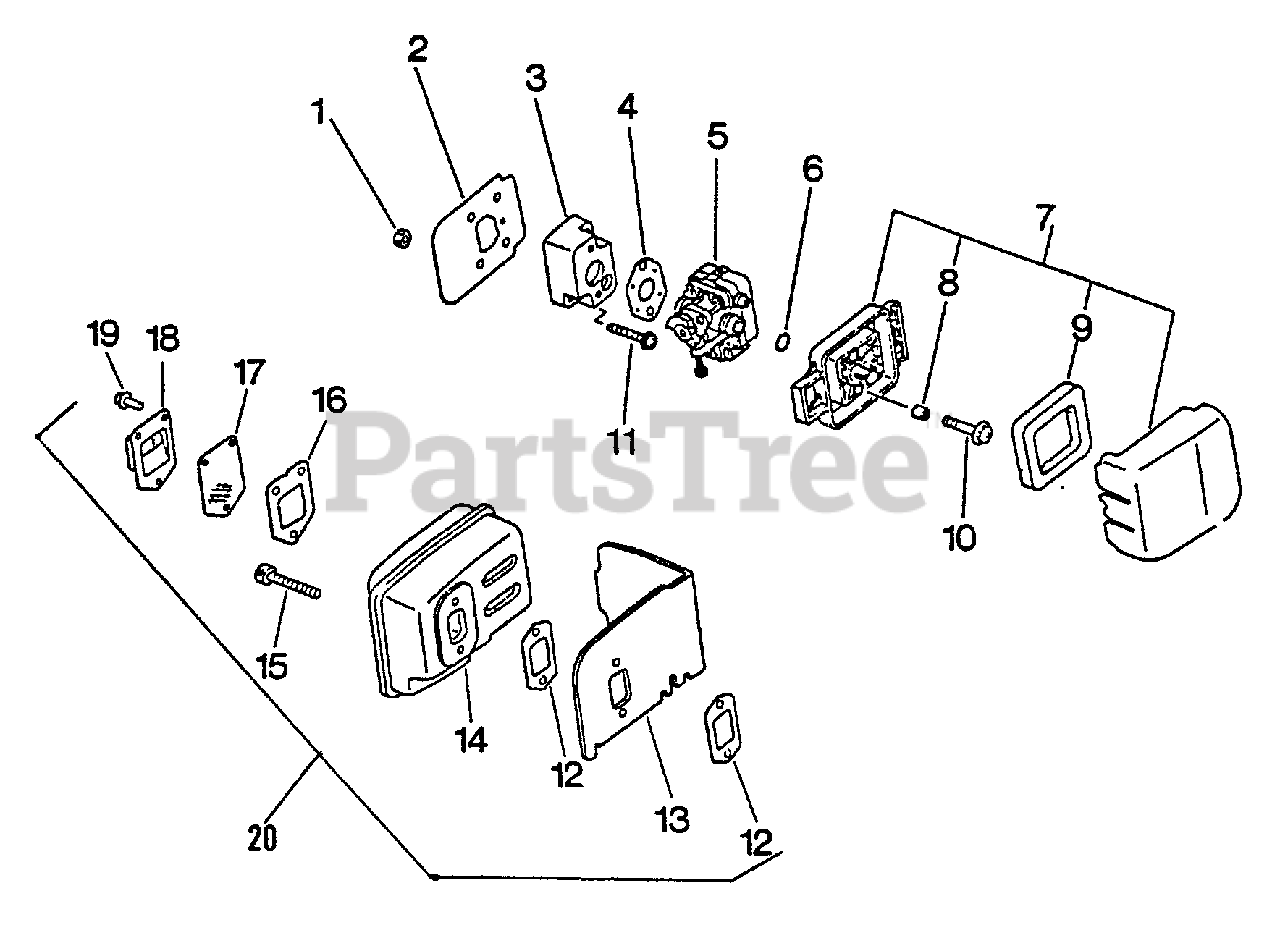

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

2

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 13

0

3

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, Qty 7

0

4

Echo 13001044431

GASKET, INTAKE

$2.99

$

In Stock, Qty 8

0

5

Echo 12300006460

CARBURETOR WYL-11
(Superseded to Discontinued)

$

$

Not available

6

Echo 90072000015

O-RING - 15

$2.49

$

In Stock, Qty 11

0

7

Echo 13030006460

AIR CLEANER ASSY

Note: Includes Items 8 & 9

$37.99

$

Usually ships in 2-4 days

0

8

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13031044330

FILTER, AIR

$5.99

$

In Stock, Qty 20+

0

10

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

11

Echo 90024205022

SCREW - 5X22

$0.99

$

In Stock, Qty 7

0

12

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

13

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

14

Echo 14580642030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

15

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

16

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, only 3 left!

0

17

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 15

0

18

Echo 14587604560

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

19

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

20

Echo 14580005162

MUFFLER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 12-19

$

$

Not available
