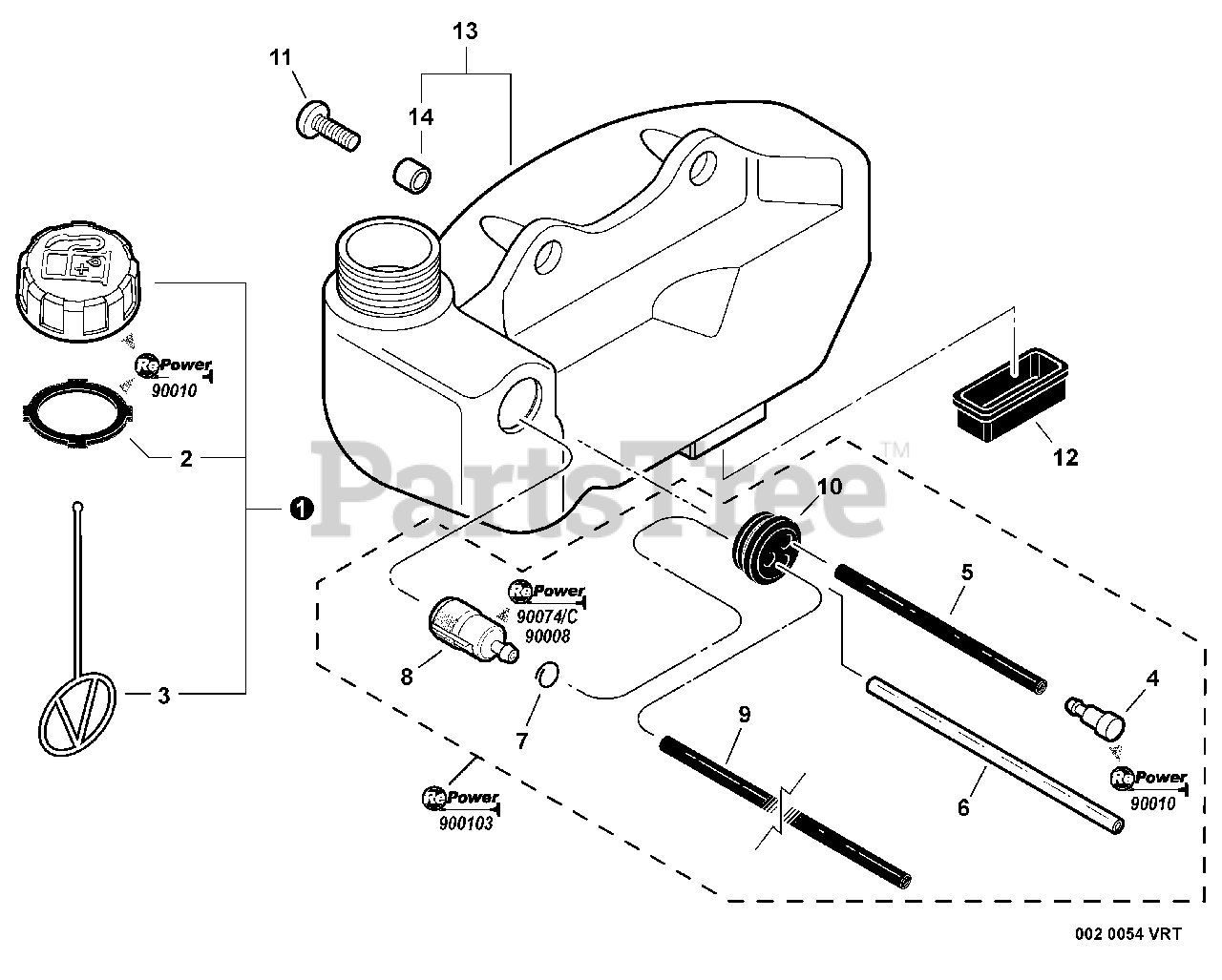

HC-150 - Echo Hedge Trimmer (SN: S90920001001 - S90920999999) Fuel System Parts Diagram

Hedge Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$7.49

$

In Stock, Qty 9

0

2

Echo 131016-55830

GASKET, FUEL CAP

Note: Included In RePower KIT

$

$

Not available

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

Note: Included In RePower KIT

$1.49

$

In Stock, Qty 6

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 11

0

7

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

8

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

9

Echo V470000580

PIPE, FUEL 3×5×195 BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 20+

0

10

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

11

Echo 90027505015

SCREW 5×15

$0.99

$

In Stock, Qty 11

0

12

Echo 13192061830

CUSHION, FUEL TANK

$6.99

$

Usually ships in 2-4 days

0

13

Echo A350000680

TANK ASSY, FUEL
(Superseded to A350002600)

Note: Includes ITEM 14

$21.99

$

In Stock, only 2 left!

0

14

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

15

Echo 900103

FUEL SYSTEM KIT
(Superseded to 90135Y)

$27.99

$

In Stock, Qty 20+

0

16

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

16

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0

17

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

18

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
