HC-150 i - Echo Hedge Trimmer (SN: S83813001001 - S83813999999) Fuel System S/N: S83813002541 - S83813999999 Parts Diagram

Hedge Trimmer

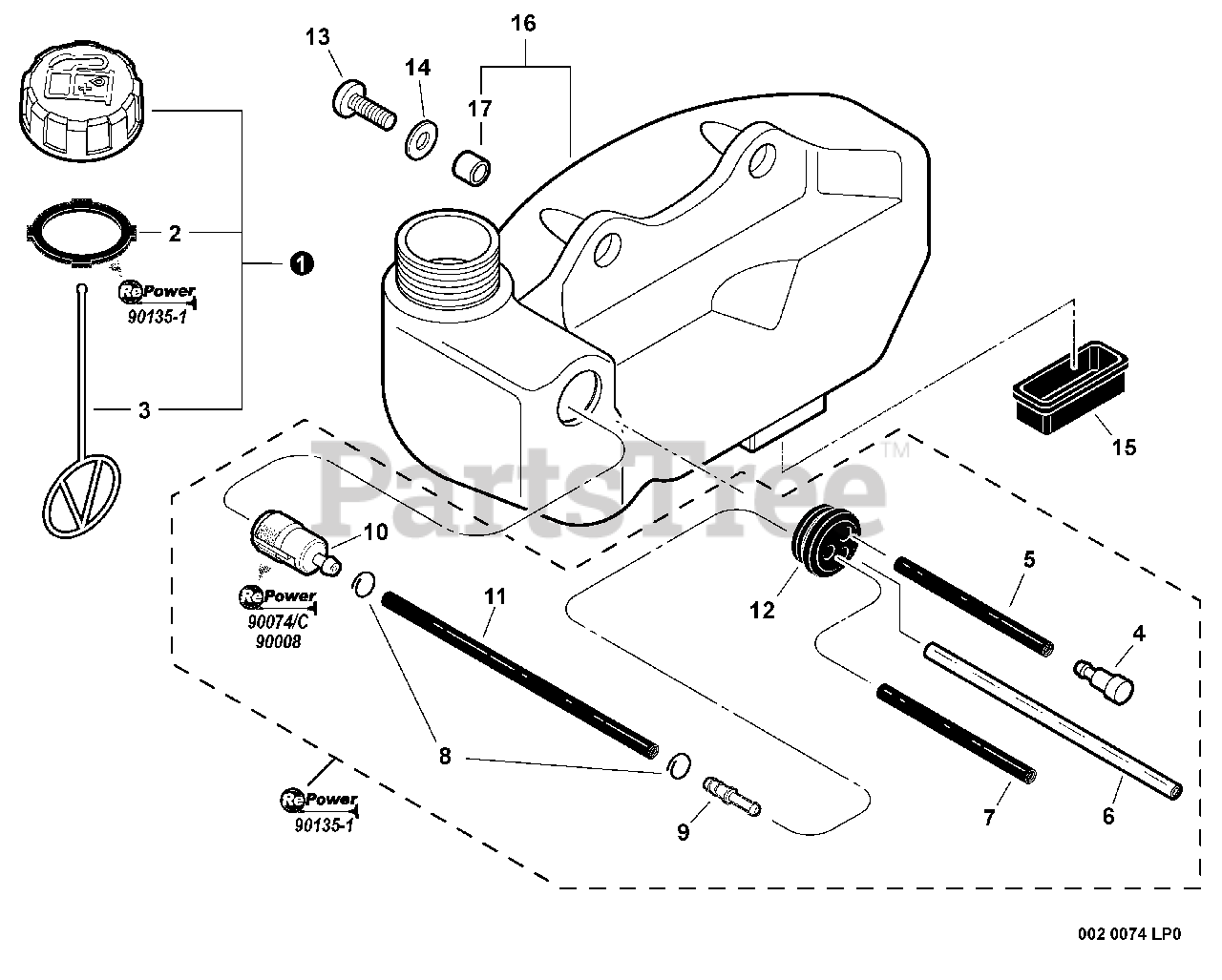

Fuel System S/N: S83813002541 - S83813999999 Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, FUEL CAP

Note: Included In RePower KIT

$4.99

$

In Stock, only 4 left!

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 11

0

7

Echo V471003600

PIPE, FUEL 3×5×87 BLACK
(Superseded to V471005660)

Note: RePower BULK OPTION: N/A

$4.49

$

In Stock, only 2 left!

0

8

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

9

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

11

Echo V471003660

PIPE, FUEL 3×5×115

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 5

0

12

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

13

Echo 90027505015

SCREW 5×15

$0.99

$

In Stock, Qty 11

0

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 13192061830

CUSHION, FUEL TANK

$6.99

$

Usually ships in 2-4 days

0

16

Echo A350000680

TANK ASSY, FUEL
(Superseded to A350002600)

Note: Includes ITEM 17

$21.99

$

In Stock, only 2 left!

0

17

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

18

Echo 90135-1

FUEL SYSTEM KIT
(Superseded to 90135BP)

$27.99

$

In Stock, Qty 20+

0

19

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

20

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0
