HC-1500 - Echo Hedge Trimmer (Original Version) Air Cleaner S/N: 017001-Up - Plastic Case Parts Diagram

Hedge Trimmer

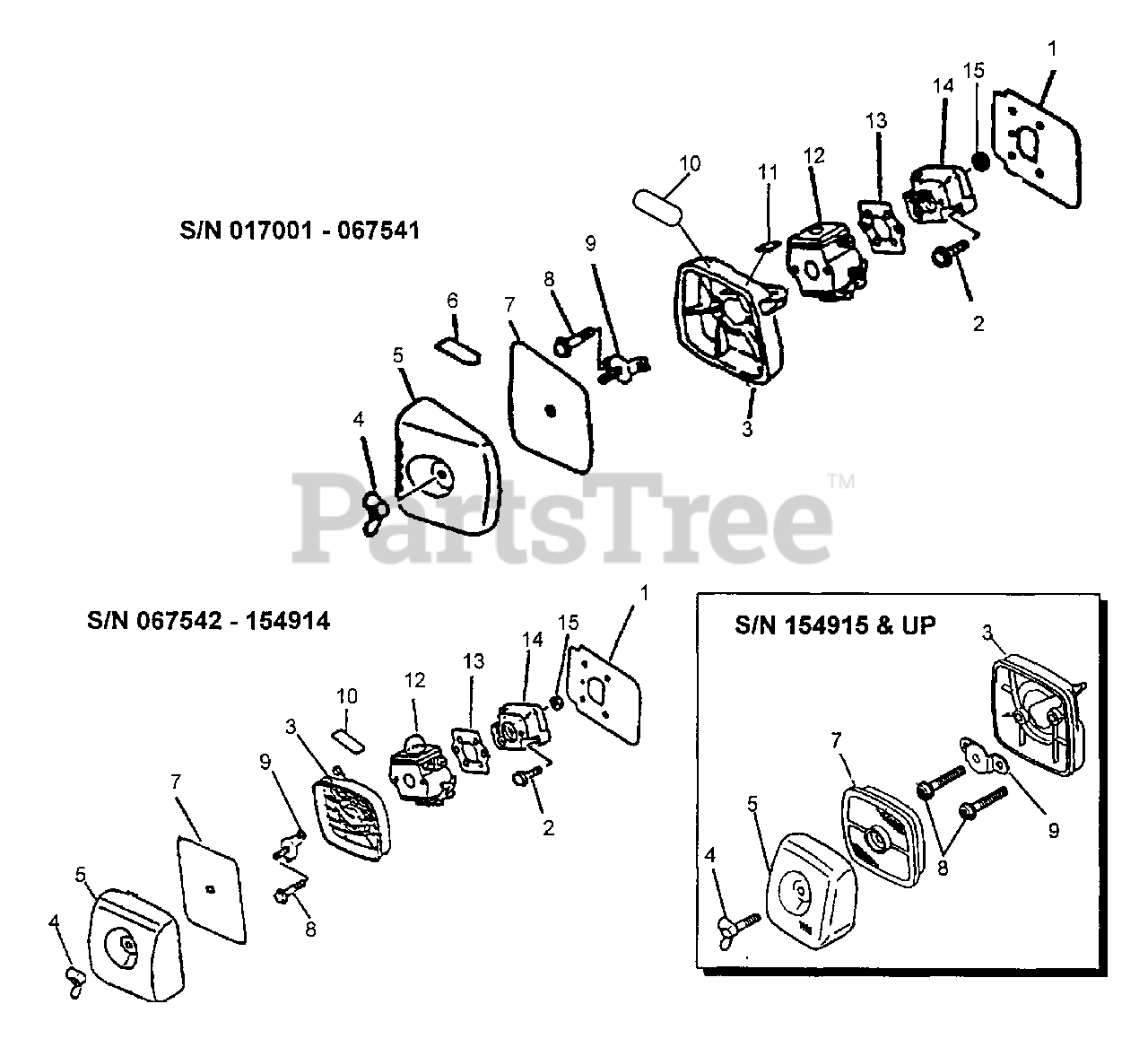

Air Cleaner S/N: 017001-Up - Plastic Case Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN GASKET KITS 88900006560 AND 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST. SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.99

$

In Stock, Qty 20+

0

2

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

3

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 11

0

4

Echo 90052800005

WINGNUT - 6

Note: S/N 001001-149692

$1.99

$

In Stock, Qty 8

0

4

Echo 21041752730

THUMBSCREW

Note: S/N 149693 & UP

$1.99

$

In Stock, Qty 20+

0

5

Echo 13031304561

COVER, AIR FILTER
(Superseded to Discontinued)

Note: S/N 001001-035000

$

$

Not available

5

Echo 13031305060

COVER, AIR FILTER - BLACK

Note: S/N 035001-067541

$7.49

$

Usually ships in 2-4 days

0

5

Echo 13030206561

COVER, AIR FILTER - GRAY

Note: S/N 067542-149692

$9.49

$

In Stock, only 2 left!

0

5

Echo 13031306563

COVER, AIR FILTER - GRAY

Note: S/N 149693 & UP

$7.99

$

In Stock, Qty 20+

0

6

Echo 89018706960

LABEL - TOP

Note: S/N 035001-067541

$3.99

$

Usually ships in 2-4 days

0

7

Echo 13031004560

FILTER, AIR

Note: S/N 001001-067541

$5.99

$

In Stock, only 3 left!

0

7

Echo 13031740630

FILTER, AIR
(Superseded to Discontinued)

Note: S/N 001001-067541

$

$

Not available

7

Echo 13031006560

FILTER, AIR

Note: S/N 067542-149692

$4.99

$

In Stock, Qty 13

0

7

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: S/N 149693 & UP

$8.99

$

In Stock, Qty 20+

0

8

Echo 90024205064

SCREW - 5X64

Note: S/N 017001-067541

$1.49

$

In Stock, Qty 9

0

8

Echo 90024205065

SCREW - 5X65

Note: S/N 067542 & UP

$0.99

$

In Stock, Qty 20+

0

9

Echo 12901105060

PLATE, PREVENT

Note: S/N 001001-149692

$6.99

$

In Stock, Qty 7

0

9

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

Note: S/N 149693 & UP

$4.99

$

In Stock, Qty 7

0

10

Echo 89012106360

LABEL - CHOKE

Note: S/N 001001 & UP

$1.99

$

In Stock, Qty 5

0

10

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 89015805360

LABEL - IDLE

Note: S/N 017001-022000

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12520011521

CARBURETOR C1U-K10A
(Superseded to Discontinued)

Note: S/N 017001-89000

$

$

Not available

12

Echo 12520005361

CARBURETOR C1U-K17
(Superseded to 12520011823)

Note: S/N 089001-090870 (W/PURGE)

$110.99

$

In Stock, Qty 8

0

12

Echo 12520011823

CARBURETOR C1U-K27B
(Superseded to 12520012820)

Note: S/N 090871-154914 (W/PURGE)

$110.99

$

In Stock, Qty 8

0

12

Echo 12520008460

CARBURETOR C1U-K45
(Superseded to 12520005961)

Note: S/N 154915 & UP (W/PURGE)

$95.99

$

In Stock, only 2 left!

0

13

Echo 13001642031

GASKET, INTAKE

Note: INCLUDED IN GASKET KITS 88900006560 AND 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST. SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$1.49

$

In Stock, Qty 20+

0

14

Echo 13001742031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 9

0

15

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
