HC-1500 - Echo Hedge Trimmer (Original Version) Carburetor -- C1U-K17 and C1U-K27B S/N: 035001 - 154914 Parts Diagram

Hedge Trimmer

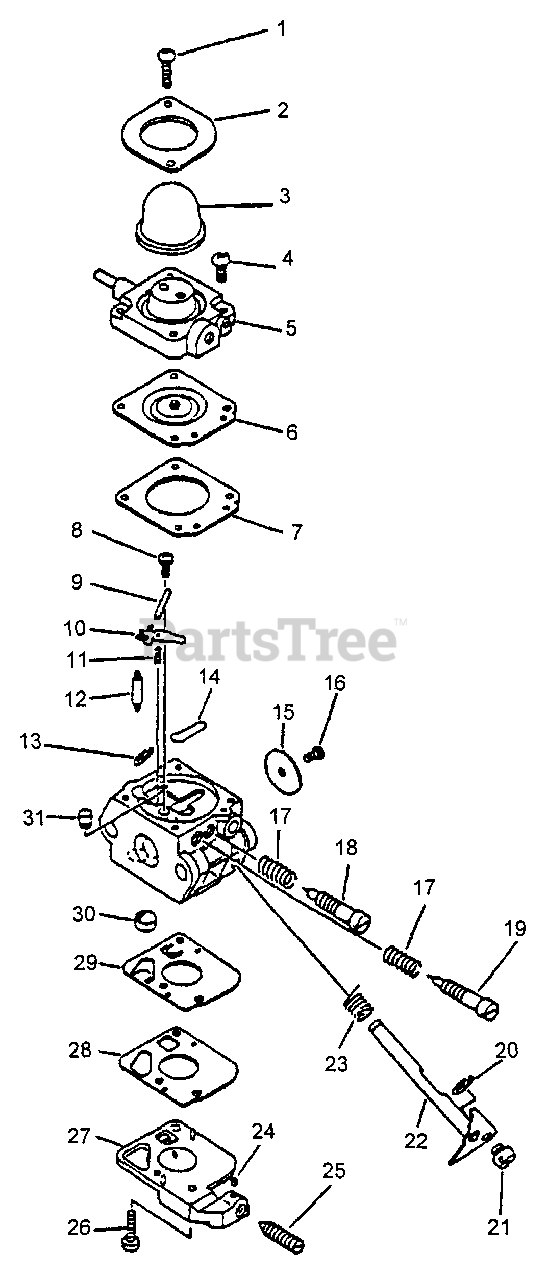

Carburetor -- C1U-K17 and C1U-K27B S/N: 035001 - 154914 Parts Diagram

  • Title

Echo 12520005361

CARBURETOR C1U-K17
(Superseded to 12520011823)

Note: Includes ITEMS 1-31

$102.99

$

In Stock, Qty 11

0

Echo 12520011823

CARBURETOR C1U-K27B
(Superseded to 12520012820)

Note: Includes ITEMS 1-31

$102.99

$

In Stock, Qty 11

0

1

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

2

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

5

Echo 12538305360

BASE, PURGE

$23.99

$

In Stock, only 1 left!

0

6

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

7

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

8

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

9

------------------

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

10

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

11

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

12

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

13

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

14

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

15

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

16

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

18

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532042030

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

20

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

21

Echo 12537242030

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

22

Echo 12531742030

SHAFT, THROTTLE

Note: C1U-K17

$6.49

$

Usually ships in 2-4 days

0

22

Echo 12531711820

SHAFT, THROTTLE

Note: C1U-K27B

$6.49

$

Usually ships in 2-4 days

0

23

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 4 left!

0

26

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12532442030

BASE, PURGE

$8.99

$

Usually ships in 2-4 days

0

28

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

29

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

30

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

31

Echo 12537642030

NOZZLE, CHECK VALVE

$5.49

$

In Stock, only 1 left!

0

Echo 12530006560

REPAIR KIT

$21.99

$

In Stock, only 2 left!

0

Echo 12530306560

DIAPHRAGM/GASKET KIT

$10.99

$

Usually ships in 2-4 days

0
