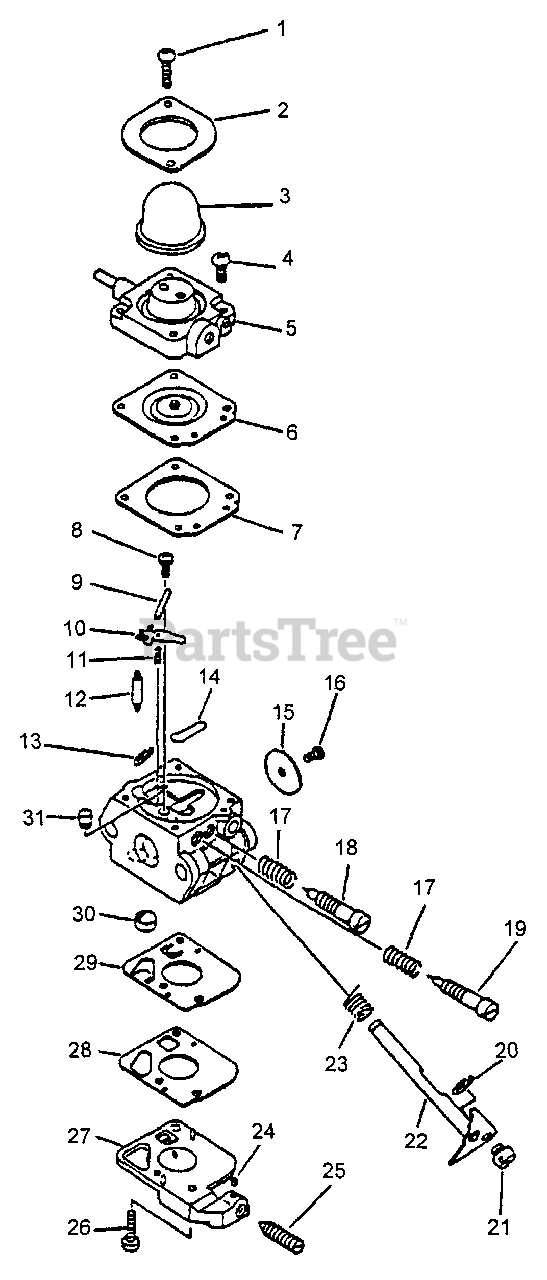

HC-1500 - Echo Hedge Trimmer (Original Version) Carburetor -- C1U-K17 and C1U-K27B S/N: 035001 - 154914 Parts Diagram

Hedge Trimmer

Carburetor -- C1U-K17 and C1U-K27B S/N: 035001 - 154914 Parts Diagram

  • Title

Echo 12520005361

CARBURETOR - C1U-K17
(Superseded to 12520011823)

Note: Includes ITEMS 1-31

$110.99

$

In Stock, Qty 8

0

Echo 12520011823

CARBURETOR - C1U-K27B
(Superseded to 12520012820)

Note: Includes ITEMS 1-31

$110.99

$

In Stock, Qty 8

0

1

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

5

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

6

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

7

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

8

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

9

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

10

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

11

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

12

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

13

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

14

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

15

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

16

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

17

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

18

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

19

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

20

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

21

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

22

Echo 125317-42030

SHAFT, THROTTLE

Note: C1U-K17

$6.99

$

Usually ships in 2-4 days

0

22

Echo 12531711820

SHAFT, THROTTLE

Note: C1U-K27B

$6.99

$

Usually ships in 2-4 days

0

23

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

26

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530006560 AND GASKET/DIAPHRAGM KIT P/N 12530306560

$

$

Not available

30

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530006560

$

$

Not available

31

Echo 12537642030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

Echo 12530006560

REBUILD KIT

$22.99

$

In Stock, only 1 left!

0

Echo 12530306560

GASKET / DIAPHRAGM KIT

$10.99

$

Usually ships in 2-4 days

0
