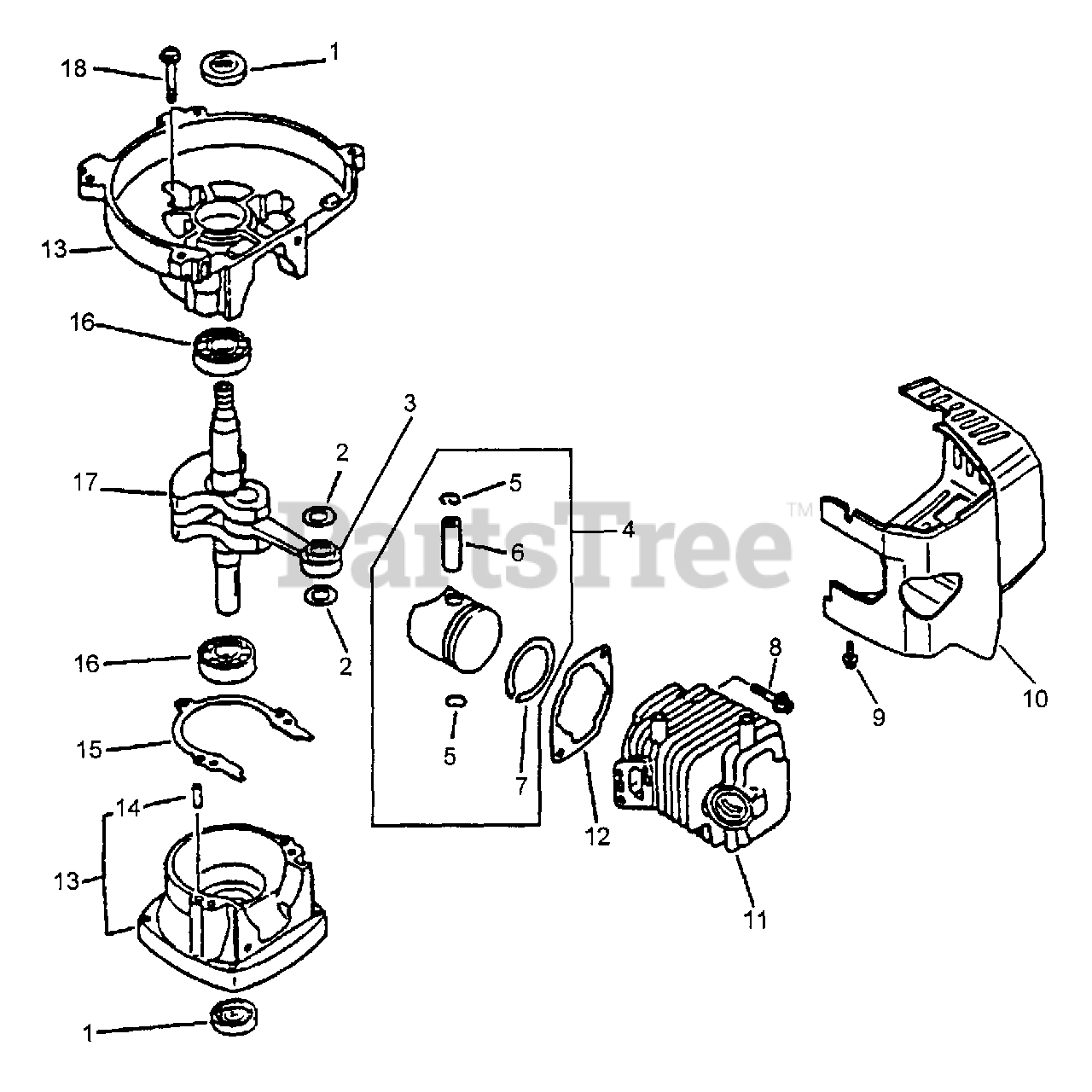

HC-1500 - Echo Hedge Trimmer (Original Version) Engine Parts Diagram

Hedge Trimmer

Engine Parts Diagram

  • Title

1

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

2

Echo 100014-11520

WASHER, THRUST

Note: S/N 001001-154914

$3.99

$

In Stock, only 2 left!

0

2

Echo 10001408960

WASHER, THRUST

Note: S/N 154915 & UP

$3.99

$

Usually ships in 2-4 days

0

3

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

Note: S/N 001001-090870

$11.99

$

In Stock, only 2 left!

0

3

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 090871-154914

$11.99

$

In Stock, only 2 left!

0

3

Echo 10011305930

BEARING, NEEDLE

Note: S/N 154915 & UP

$13.99

$

Usually ships in 2-4 days

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 5-7; S/N 001001-154914

$78.99

$

Usually ships in 2-4 days

0

4

Echo 10000007760

PISTON KIT
(Superseded to 10000006960)

Note: INCLUDES ITEMS 2, 5-7; S/N 154915 & UP

$76.99

$

Usually ships in 2-4 days

0

5

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

Note: S/N 001001-154914

$10.99

$

In Stock, Qty 8

0

7

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

Note: S/N 154915 & UP

$10.99

$

In Stock, Qty 8

0

8

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

9

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10150605360

ENGINE COVER KIT - GRAY
(Superseded to 10151406560)

Note: S/N 001001-022000

$21.99

$

Usually ships in 2-4 days

0

10

Echo 10151406560

COVER, ENGINE
(Superseded to 10151406561)

Note: S/N 022001 & UP

$21.99

$

Usually ships in 2-4 days

0

11

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

Note: S/N 001001-017000

$153.99

$

Usually ships in 2-4 days

0

11

Echo 101011-45230

CYLINDER

Note: S/N 017001-154914

$153.99

$

Usually ships in 2-4 days

0

11

Echo 10101106562

CYLINDER

Note: S/N 154915 & UP

$130.99

$

Usually ships in 2-4 days

0

12

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN KIT; FOR S/N 001001-017000, USE GASKET KIT 88900005362. FOR S/N 017001 & UP, USE GASKET KIT 88900006560.

$4.99

$

In Stock, Qty 6

0

13

Echo 10020005360

CRANKCASE KIT
(Superseded to 10020405360)

Note: INCLUDES ITEM 14; S/N 001001-147381

$179.99

$

Usually ships in 2-4 days

0

13

Echo 10020405360

CRANKCASE KIT
(Superseded to 10020405361)

Note: INCLUDES ITEM 14; S/N 147381 & UP

$179.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

GASKET, CRANKCASE

Note: INCLUDED IN KIT; FOR S/N 001001-017000, USE GASKET KIT 88900005362. FOR S/N 017001 & UP, USE GASKET KIT 88900006560.

$

$

Not available

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010005360

CRANKSHAFT ASSY
(Superseded to 10010005361)

Note: INCLUDES ITEM 3; S/N 001001-090870

$

$

Not available

17

Echo 10010005361

CRANKSHAFT
(Superseded to 10010005362)

Note: INCLUDES ITEM 3; S/N 090871-154914

$

$

Not available

17

Echo 10010006560

CRANKSHAFT
(Superseded to 10010006561)

Note: INCLUDES ITEM 3; S/N 154915 & UP

$182.99

$

Usually ships in 2-4 days

0

18

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo SB1003

SHORT BLOCK - SB1003
(Superseded to SB1031)

Note: S/N: 001001-154914

$

$

Not available

Echo SB1031

SHORT BLOCK - SB1031
(Superseded to Discontinued)

Note: S/N: 154915 & UP

$

$

Not available

Echo 88900005362

GASKET KIT
(Superseded to 88900006560)

Note: ENGINE REPOWER - S/N 001001-017000; INCLUDES THE FOLLOWING ITEMS

$15.99

$

Usually ships in 2-4 days

0

Echo 101010-44332

GASKET, CYLINDER

Note: ENGINE REPOWER

$4.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER

$1.49

$

In Stock, only 2 left!

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: ENGINE REPOWER - S/N 017001 & UP; INCLUDES THE FOLLOWING ITEMS

$15.99

$

Usually ships in 2-4 days

0

Echo 101010-44332

GASKET, CYLINDER

Note: ENGINE REPOWER

$4.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER

$1.49

$

In Stock, only 2 left!

0
