HC-1500 - Echo Hedge Trimmer (Original Version) Engine Parts Diagram

Hedge Trimmer

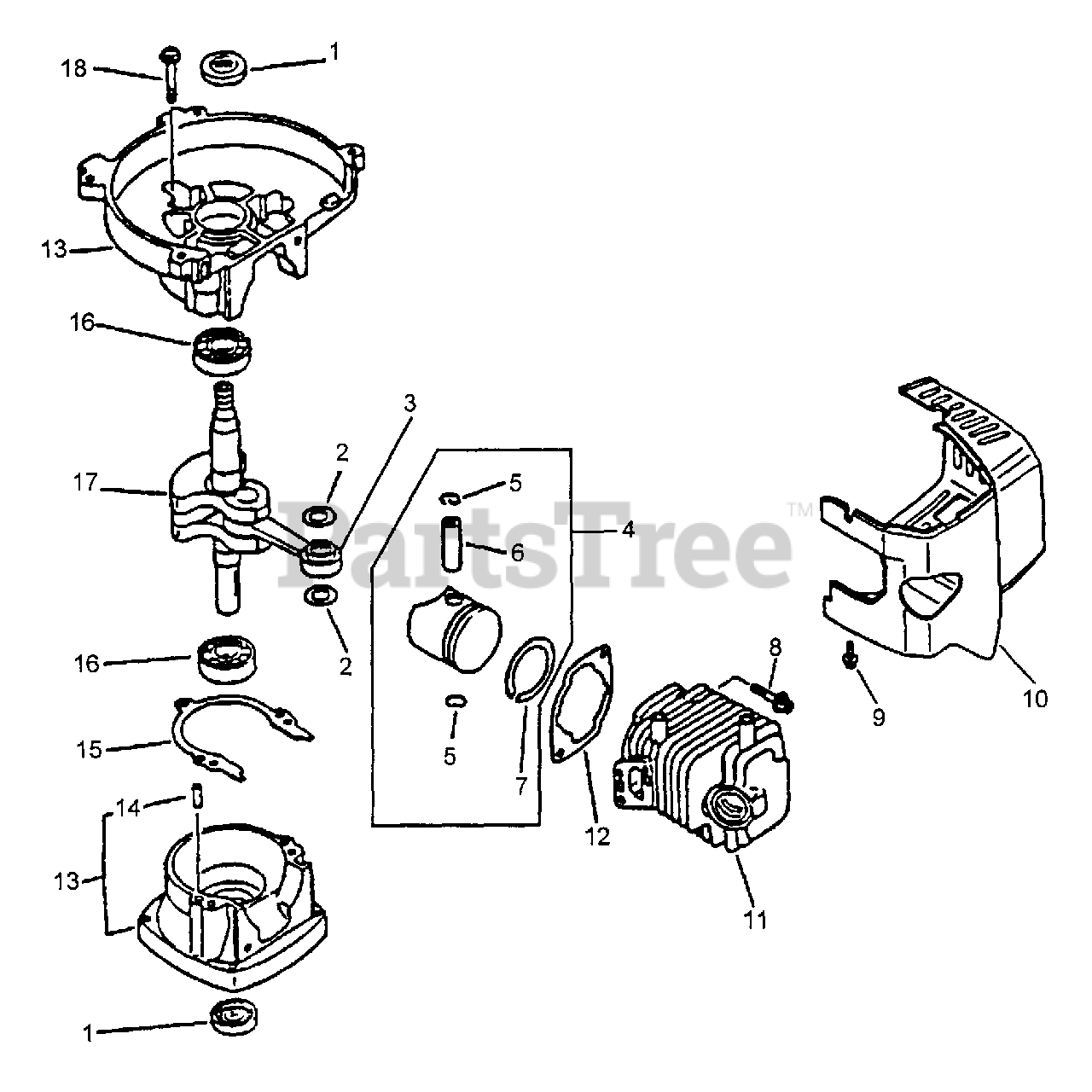

Engine Parts Diagram

  • Title

1

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, only 4 left!

0

2

Echo 10001411520

SPACER, PISTON

Note: S/N 001001-154914

$3.99

$

In Stock, only 2 left!

0

2

Echo 10001408960

WASHER

Note: S/N 154915 & UP

$3.99

$

Usually ships in 2-4 days

0

3

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

Note: S/N 001001-090870

$11.99

$

In Stock, only 2 left!

0

3

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 090871-154914

$11.99

$

In Stock, only 2 left!

0

3

Echo 10011305930

BEARING, NEEDLE - 8

Note: S/N 154915 & UP

$12.99

$

Usually ships in 2-4 days

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 5-7; S/N 001001-154914

$72.99

$

Usually ships in 2-4 days

0

4

Echo 10000007760

PISTON KIT
(Superseded to 10000006960)

Note: INCLUDES ITEMS 2, 5-7; S/N 154915 & UP

$76.99

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Echo 10001311520

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

7

Echo 10001105330

RING, PISTON

Note: S/N 001001-154914

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001105330

RING, PISTON

Note: S/N 154915 & UP

$9.49

$

In Stock, Qty 20+

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 15

0

9

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10150605360

ENGINE COVER KIT - GRAY
(Superseded to 10151406560)

Note: S/N 001001-022000

$19.99

$

Usually ships in 2-4 days

0

10

Echo 10151406560

COVER, ENGINE
(Superseded to 10151406561)

Note: S/N 022001 & UP

$19.99

$

Usually ships in 2-4 days

0

11

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

Note: S/N 001001-017000

$141.99

$

In Stock, only 1 left!

0

11

Echo 10101145230

CYLINDER

Note: S/N 017001-154914

$141.99

$

In Stock, only 1 left!

0

11

Echo 10101106562

CYLINDER

Note: S/N 154915 & UP

$121.99

$

Usually ships in 2-4 days

0

12

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT; FOR S/N 001001-017000, USE GASKET KIT 88900005362. FOR S/N 017001 & UP, USE GASKET KIT 88900006560.

$4.49

$

In Stock, Qty 8

0

13

Echo 10020005360

CRANKCASE KIT
(Superseded to 10020405360)

Note: INCLUDES ITEM 14; S/N 001001-147381

$166.99

$

Usually ships in 2-4 days

0

13

Echo 10020405360

CRANKCASE KIT
(Superseded to 10020405361)

Note: INCLUDES ITEM 14; S/N 147381 & UP

$166.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT; FOR S/N 001001-017000, USE GASKET KIT 88900005362. FOR S/N 017001 & UP, USE GASKET KIT 88900006560.

$

$

Not available

16

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 12

0

17

Echo 10010005360

CRANKSHAFT ASSY
(Superseded to 10010005361)

Note: INCLUDES ITEM 3; S/N 001001-090870

$

$

Not available

17

Echo 10010005361

CRANKSHAFT ASSY
(Superseded to 10010005362)

Note: INCLUDES ITEM 3; S/N 090871-154914

$

$

Not available

17

Echo 10010006560

CRANKSHAFT ASSY
(Superseded to 10010006561)

Note: INCLUDES ITEM 3; S/N 154915 & UP

$182.99

$

Usually ships in 2-4 days

0

18

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

Echo SB1003

SHORT BLOCK -- SB1003
(Superseded to SB1031)

Note: S/N: 001001-154914

$

$

Not available

Echo SB1031

SHORT BLOCK -- SB1031
(Superseded to Discontinued)

Note: S/N: 154915 & UP

$

$

Not available

Echo 88900005362

GASKET KIT
(Superseded to 88900006560)

Note: ENGINE REPOWER - S/N 001001-017000; INCLUDES THE FOLLOWING ITEMS

$14.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: ENGINE REPOWER

$4.49

$

In Stock, Qty 8

0

------------------

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER

$2.49

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 4 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER

$1.49

$

In Stock, only 3 left!

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: ENGINE REPOWER - S/N 017001 & UP; INCLUDES THE FOLLOWING ITEMS

$14.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: ENGINE REPOWER

$4.49

$

In Stock, Qty 8

0

------------------

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER

$2.49

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.49

$

In Stock, Qty 5

0

Echo 14586642031

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 4 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER

$1.49

$

In Stock, only 3 left!

0
