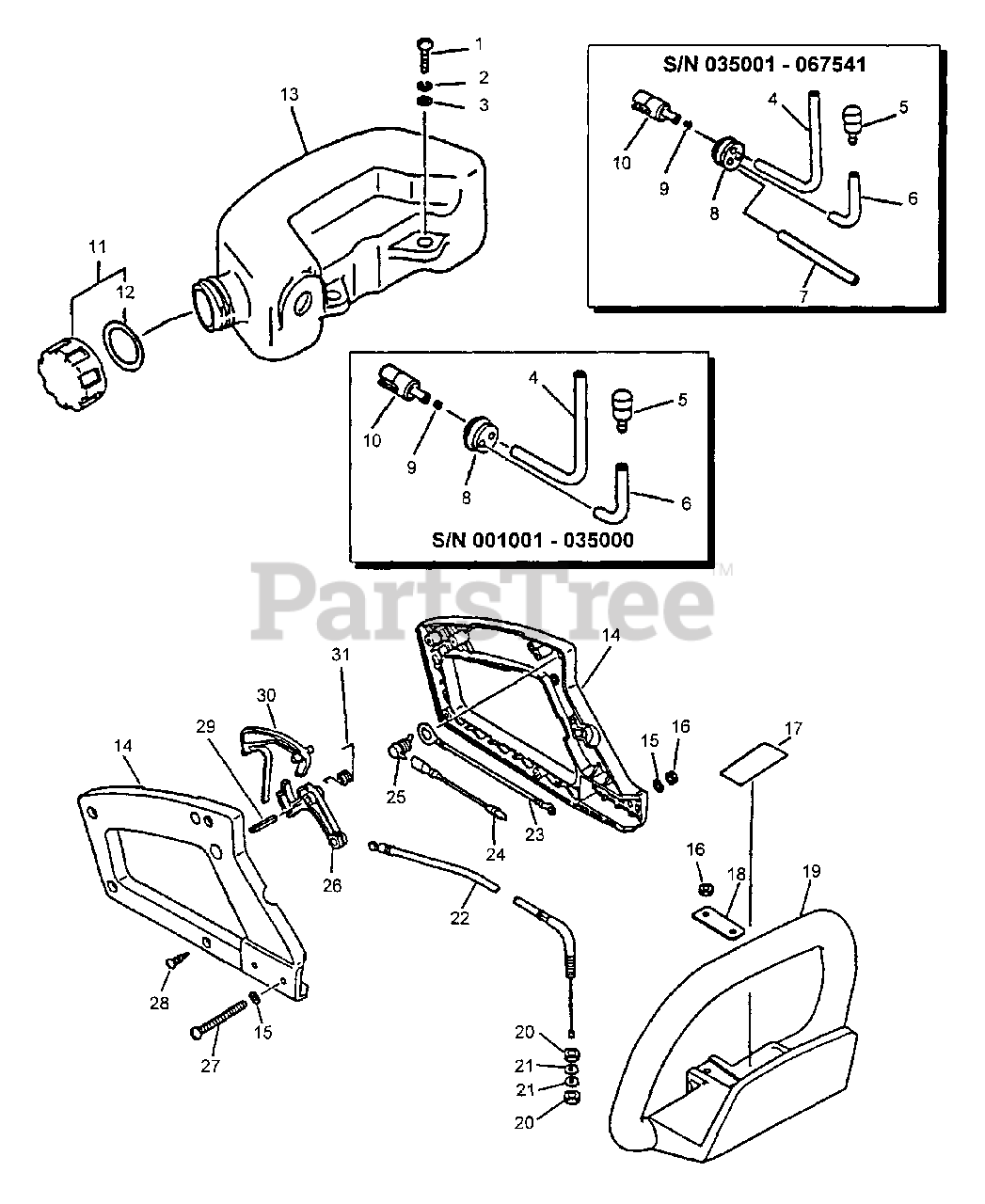

HC-1500 - Echo Hedge Trimmer (Original Version) Fuel Tank, Handle Parts Diagram

Hedge Trimmer

Fuel Tank, Handle Parts Diagram

  • Title

1

Echo 90022005016

SCREW - 5X16

Note: S/N 001001-022000

$0.99

$

In Stock, Qty 6

0

1

Echo 90023805016

SCREW - 5X16

Note: S/N 022001 & UP

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500005

LOCKWASHER - 5

Note: S/N 001001-022000

$0.99

$

In Stock, Qty 10

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, only 4 left!

0

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: INCLUDED IN CAP/VENT KIT 90010

$8.99

$

In Stock, Qty 20+

0

6

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 8

0

7

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 19

0

8

Echo 13211544330

GROMMET
(Superseded to 13211544331)

Note: S/N 001001-035000

$2.49

$

In Stock, Qty 20+

0

8

Echo V137000030

GROMMET
(Superseded to 13211546730)

Note: S/N 035001 & UP

$2.49

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 9

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

11

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: S/N 001001-022000, INCLUDES ITEM 11 (USE CAP/VENT KIT 90010)

$8.99

$

Usually ships in 2-4 days

0

11

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: S/N 022001 & UP, INCLUDES ITEM 11 (USE CAP/VENT KIT 90010)

$5.49

$

In Stock, only 1 left!

0

12

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

13

Echo 13100505360

TANK, FUEL
(Superseded to 13100505361)

$21.99

$

In Stock, only 3 left!

0

14

Echo 35110005360

HANDLE ASSY - REAR
(Superseded to 35110006560)

Note: S/N 001001-022000

$41.99

$

In Stock, only 2 left!

0

14

Echo 35110006560

HANDLE ASSY - REAR
(Superseded to 35110006561)

Note: S/N 022001 & UP

$41.99

$

In Stock, only 2 left!

0

15

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

17

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

18

Echo 35161105360

PLATE

$8.99

$

In Stock, only 3 left!

0

19

Echo 35161005360

HANDLE - FRONT

$47.99

$

Usually ships in 2-4 days

0

20

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800105360

CABLE, THROTTLE

$25.99

$

In Stock, only 3 left!

0

23

Echo 16201005360

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

24

Echo 16201405360

LEAD - GROUND

$4.99

$

Usually ships in 2-4 days

0

25

Echo 16340003460

IGNITION SWITCH ASSY

$9.99

$

In Stock, Qty 14

0

26

Echo 17801005360

TRIGGER, THROTTLE
(Superseded to 17801006560)

Note: S/N 001001-022000

$11.99

$

In Stock, Qty 11

0

26

Echo 17801006560

TRIGGER, THROTTLE

Note: S/N 022001 & UP

$11.99

$

In Stock, Qty 11

0

27

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90025504016

SCREW - 4X16

$0.99

$

Usually ships in 2-4 days

0

29

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

30

Echo 17809005360

LOCKOUT, THROTTLE
(Superseded to 17809006560)

Note: S/N 001001-035000

$11.99

$

In Stock, Qty 16

0

30

Echo 17809006560

LOCKOUT, THROTTLE

Note: S/N 035001 & UP

$11.99

$

In Stock, Qty 16

0

31

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 6

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
