HC-1500 - Echo Hedge Trimmer (Original Version) Muffler Assembly Parts Diagram

Hedge Trimmer

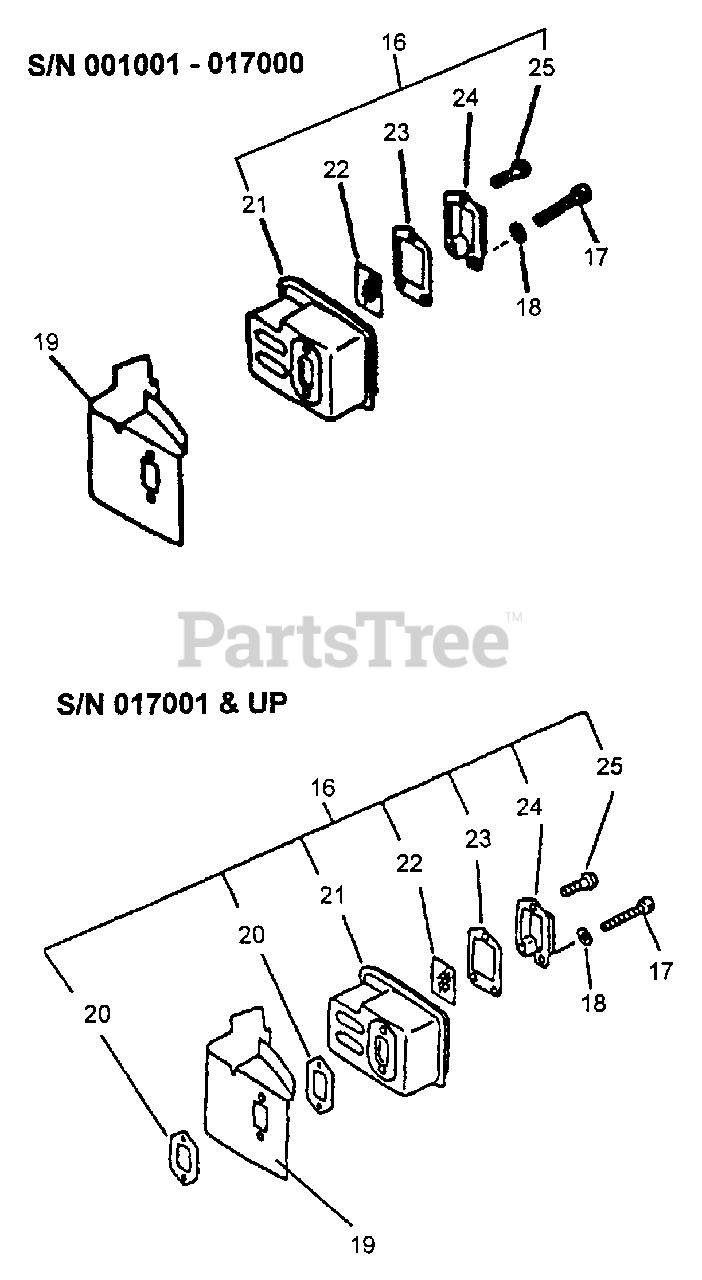

Muffler Assembly Parts Diagram

  • Title

16

Echo 14580005361

MUFFLER ASSY

Note: S/N 001001-017000; Includes ITEMS 21-25

$86.99

$

Usually ships in 2-4 days

0

16

Echo 14580005361

MUFFLER ASSY

Note: S/N 017001 & UP; INCLUDES ITEMS 20-25

$86.99

$

Usually ships in 2-4 days

0

17

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

18

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 14587111520

COVER, MUFFLER
(Superseded to 14587111521)

Note: S/N 001001-017000

$26.99

$

Usually ships in 2-4 days

0

19

Echo 14587105360

COVER, MUFFLER

Note: S/N 017001 & UP

$11.99

$

Usually ships in 2-4 days

0

20

Echo V104000160

GASKET, EXHAUST

Note: S/N 017001 & UP; INCLUDED IN GASKET KIT 88900006560; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.49

$

In Stock, Qty 20+

0

21

Echo 14581011520

MUFFLER

$63.99

$

Usually ships in 2-4 days

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.99

$

In Stock, only 2 left!

0

24

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

25

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0
