HC-1500 - Echo Hedge Trimmer (Original Version) Muffler Assembly Parts Diagram

Hedge Trimmer

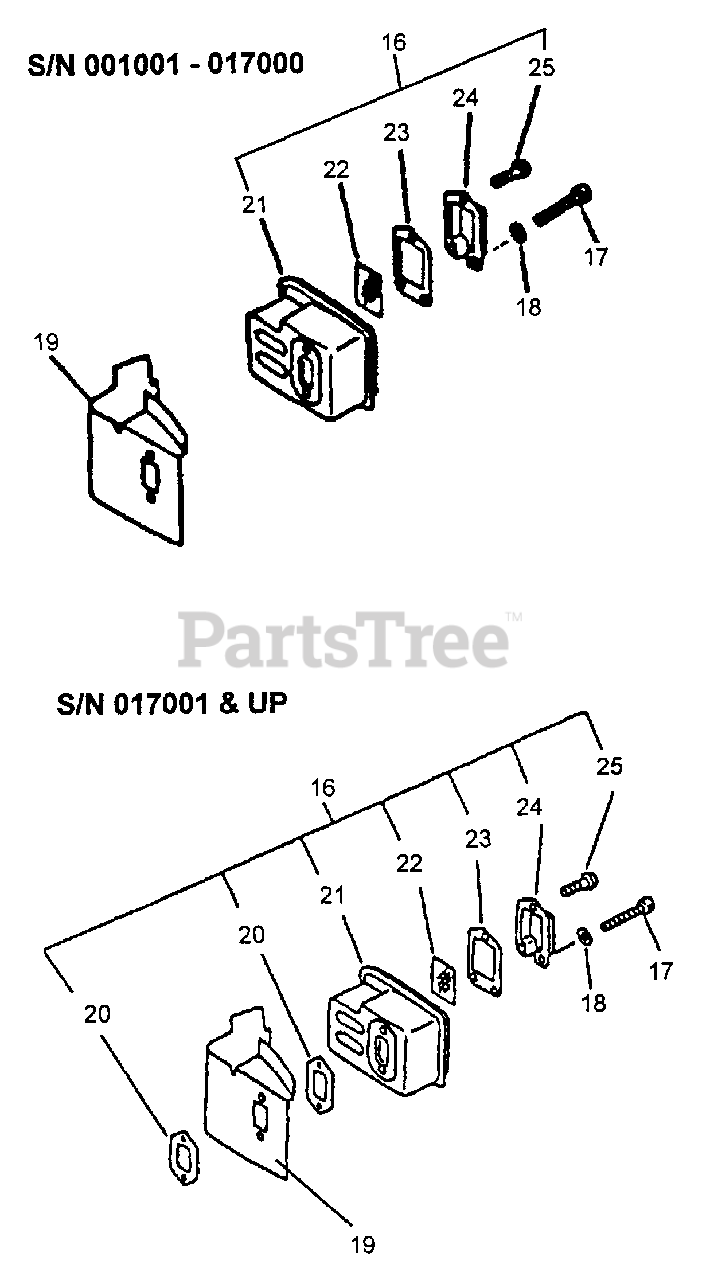

Muffler Assembly Parts Diagram

  • Title

16

Echo 14580005361

MUFFLER ASSY

Note: S/N 001001-017000; Includes ITEMS 21-25

$86.99

$

Usually ships in 2-4 days

0

16

Echo 14580005361

MUFFLER ASSY

Note: S/N 017001 & UP; INCLUDES ITEMS 20-25

$86.99

$

Usually ships in 2-4 days

0

17

Echo 90010505050

SCREW - 5X50

$1.99

$

In Stock, Qty 11

0

18

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 14587111520

COVER, EXHAUST
(Superseded to 14587111521)

Note: S/N 001001-017000

$26.99

$

Usually ships in 2-4 days

0

19

Echo 14587105360

SHIELD, EXHAUST

Note: S/N 017001 & UP

$11.99

$

Usually ships in 2-4 days

0

20

Echo V104000160

GASKET, EXHAUST

Note: S/N 017001 & UP; INCLUDED IN GASKET KIT 88900006560; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.49

$

In Stock, Qty 20+

0

21

Echo 14581011520

MUFFLER

$63.99

$

Usually ships in 2-4 days

0

22

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 17

0

23

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.99

$

In Stock, only 4 left!

0

24

Echo 14580942030

GUIDE, EXHAUST - OUTER

$8.99

$

Usually ships in 2-4 days

0

25

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0
