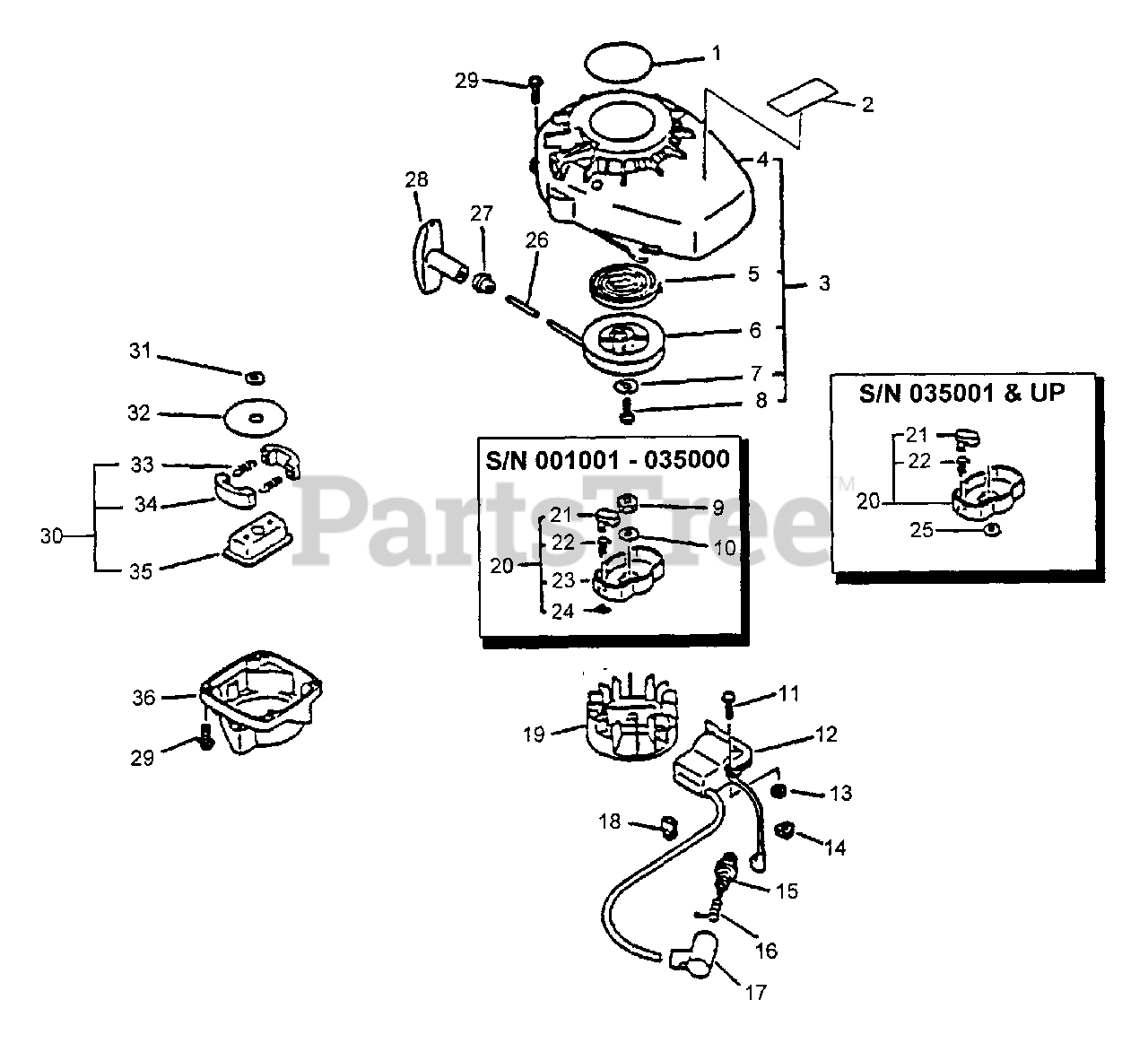

HC-1500 - Echo Hedge Trimmer (Original Version) Starter Assembly Parts Diagram

Hedge Trimmer

Starter Assembly Parts Diagram

  • Title

1

Echo 89011244330

LABEL - ECHO
(Superseded to 89011248730)

Note: S/N 001001-017000

$

$

Not available

1

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

Note: S/N 017001-137633

$0.99

$

In Stock, Qty 6

0

1

Echo 89011506561

LABEL - MODEL HC-1500
(Superseded to Discontinued)

Note: S/N 137634 & UP

$

$

Not available

2

Echo 89011505360

LABEL - MODEL
(Superseded to Discontinued)

Note: S/N 001001-017000

$

$

Not available

2

Echo 89011506560

LABEL - MODEL

Note: S/N 017001-137633

$2.99

$

Usually ships in 2-4 days

0

2

Echo 89016007760

LABEL - CAUTION
(Superseded to 89016007761)

Note: S/N 137634 & UP

$2.49

$

Usually ships in 2-4 days

0

3

Echo 17720005360

STARTER ASSY
(Superseded to 17720006562)

Note: S/N 001001-022000; INCLUDES ITEMS 4-8, 26-28

$105.99

$

In Stock, only 2 left!

0

3

Echo 17720006562

STARTER ASSY
(Superseded to 17720012220)

Note: S/N 022001 & UP; INCLUDES ITEMS 4-8, 26-28

$105.99

$

In Stock, only 2 left!

0

4

Echo 10151105362

CASE, STARTER
(Superseded to 10151105363)

Note: S/N 001001-022000

$44.99

$

Usually ships in 2-4 days

0

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 11

0

6

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

Note: S/N 001001-128053

$10.99

$

In Stock, Qty 11

0

6

Echo 17721544430

REEL, ROPE

Note: S/N 128054 & UP

$10.99

$

In Stock, Qty 11

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

9

Echo 90050200008

NUT - 8

Note: S/N 001001-035000

$0.99

$

In Stock, Qty 7

0

10

Echo 90060000008

WASHER - 8

Note: S/N 001001-035000

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

12

Echo 15062611521

COIL, IGNITION
(Superseded to 15662611820)

$

$

Not available

13

Echo 15011709130

SPACER

Note: S/N 001001-017000

$1.99

$

Usually ships in 2-4 days

0

14

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 10

0

15

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

Note: S/N 001001-154914

$

$

Not available

15

Echo 15901012530

SPARK PLUG -- BPMR-6A

$3.99

$

Usually ships in 2-4 days

0

15

Echo 99944500071

SPARK PLUG -- BPM-7Y

Note: S/N 154915 & UP

$

$

Not available

16

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

17

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

18

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

19

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$135.99

$

Usually ships in 2-4 days

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: S/N 001001-035000, INCLUDES ITEMS 21-24

$19.99

$

In Stock, only 1 left!

0

20

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: S/N 035001 & UP, INCLUDES ITEM 21 & 22

$19.99

$

In Stock, only 1 left!

0

21

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

22

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

23

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

Note: S/N 001001-035000

$19.99

$

In Stock, only 1 left!

0

24

Echo 90070000004

RING, RETAINING - 4

Note: S/N 001001-035000

$0.99

$

In Stock, Qty 20+

0

25

Echo 90060500008

LOCKWASHER - 8

Note: S/N 035001 & UP

$0.99

$

In Stock, Qty 20+

0

26

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

27

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

28

Echo 17722806530

GRIP, STARTER

Note: S/N 001001-035000

$5.99

$

In Stock, Qty 8

0

28

Echo 17722801110

GRIP, STARTER

Note: S/N 035001 & UP

$8.99

$

In Stock, only 3 left!

0

29

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

Note: S/N 001001-127128

$

$

Not available

29

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

Note: S/N 127129 & UP

$1.99

$

In Stock, Qty 20+

0

30

Echo 17500006531

CLUTCH ASSY
(Superseded to 17500006560)

Note: S/N 001001-154914, INCLUDES ITEMS 33-35

$33.99

$

In Stock, Qty 6

0

30

Echo 17500006560

CLUTCH ASSY

Note: S/N 154915 & UP, INCLUDES ITEMS 33-35

$33.99

$

In Stock, Qty 6

0

31

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

32

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

33

Echo 17501806530

SPRING, CLUTCH

Note: S/N 001001-163150

$4.99

$

In Stock, only 1 left!

0

33

Echo 17501805960

SPRING, CLUTCH

Note: S/N 163151 & UP

$2.49

$

In Stock, Qty 14

0

34

Echo 17501704631

SHOE, CLUTCH

Note: S/N 001001-163150

$25.99

$

Usually ships in 2-4 days

0

34

Echo 17500905131

SHOE, CLUTCH

Note: S/N 163151 & UP

$25.99

$

Usually ships in 2-4 days

0

35

Echo 17501604920

HUB, CLUTCH

$14.99

$

In Stock, only 1 left!

0

36

Echo 17505505360

CASE, CLUTCH

$57.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
