HC-1500 - Echo Hedge Trimmer (Type 1E) Carburetor Parts Diagram

Hedge Trimmer (Type 1E)

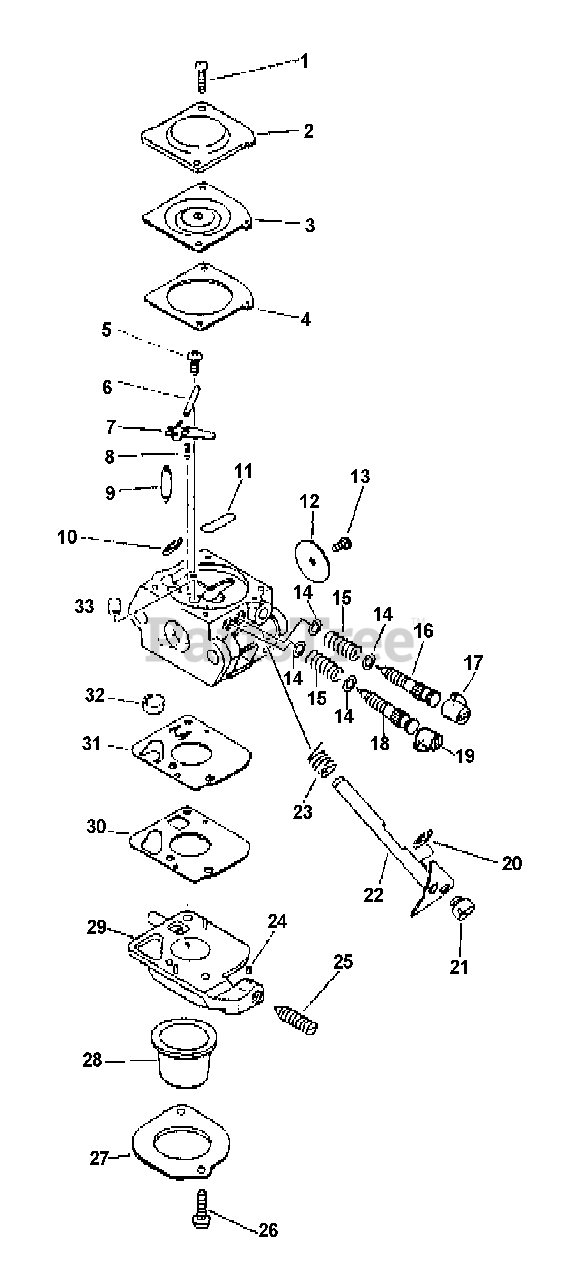

Carburetor Parts Diagram

  • Title

Echo 12520005962

CARBURETOR - C1U-K51
(Superseded to 12520005963)

Note: INCLUDES THE FOLLOWING ITEMS

$95.99

$

In Stock, only 2 left!

0

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 125342-13210

COVER, METERING DIAPHRAGM
(Superseded to 12534252130)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530051330 AND GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

4

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530051330 AND GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

7

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

8

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

9

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

12

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

15

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

16

Echo 12531807360

NEEDLE, IDLE

$6.99

$

Usually ships in 2-4 days

0

17

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 12

0

18

Echo 12532007360

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 11

0

20

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

21

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

22

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

26

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

29

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530051330 AND GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530051330 AND GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

32

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530051330

$

$

Not available

33

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

Echo 12530051330

REBUILD KIT

$20.99

$

In Stock, only 2 left!

0

Echo 12530351030

GASKET / DIAPHRAGM KIT

$22.99

$

In Stock, only 3 left!

0
