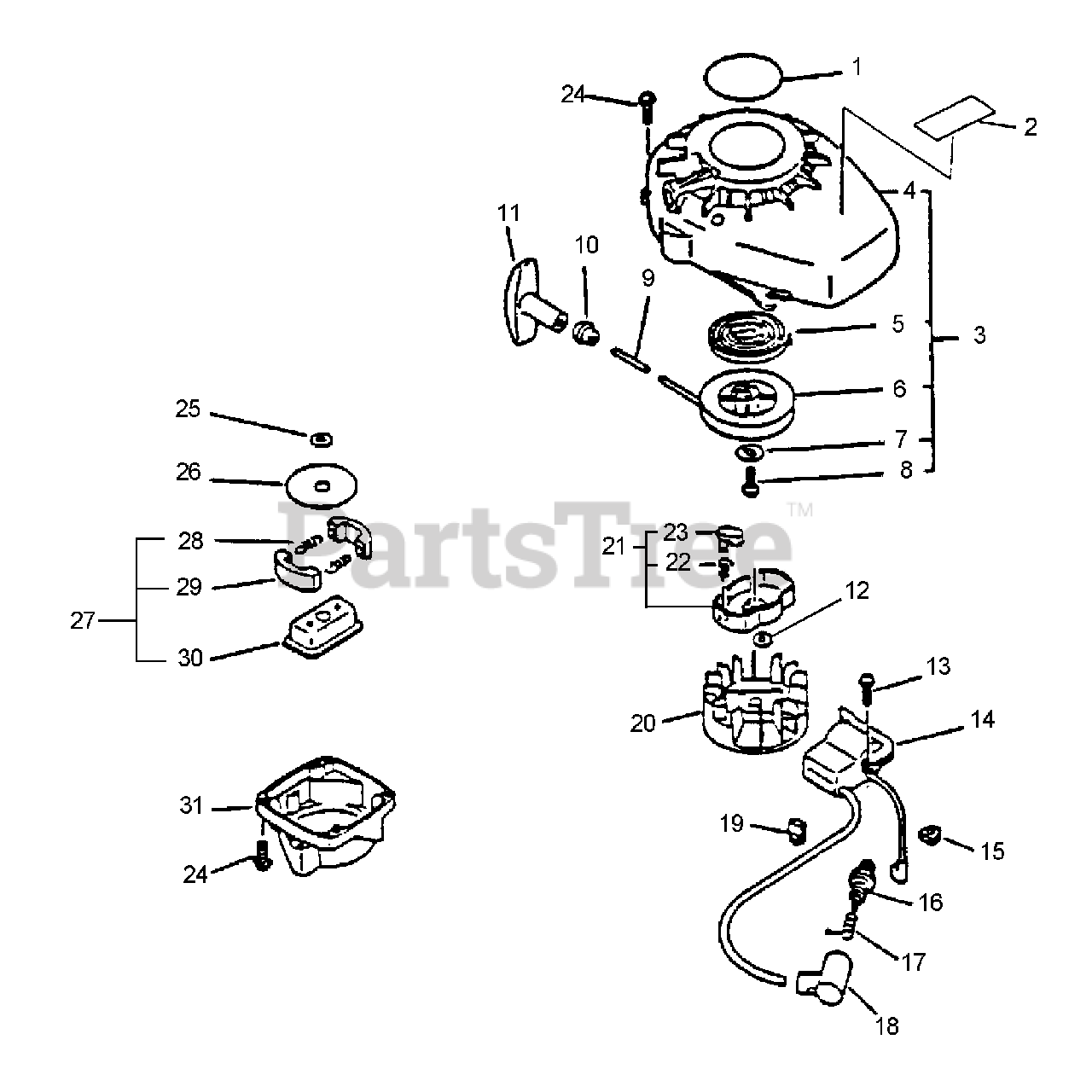

HC-1500 - Echo Hedge Trimmer (Type 1E) Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer (Type 1E)

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 89011506561

LABEL, HC-1500
(Superseded to Discontinued)

$

$

Not available

2

Echo 89016007760

LABEL - CAUTION
(Superseded to 89016007761)

$2.49

$

Usually ships in 2-4 days

0

2

Echo 89016007761

LABEL, CAUTION

Note: CANADA MODELS

$2.49

$

Usually ships in 2-4 days

0

3

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 4-11

$105.99

$

In Stock, only 1 left!

0

4

COVER, FAN

Note: Order Complete Assembly

$

$

Not available

5

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

9

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

10

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

12

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

14

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

15

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 9

0

16

Echo 15901012330

SPARK PLUG - BPM6A
(Superseded to Discontinued)

$

$

Not available

16

Echo 15901712330

SPARK PLUG - RCJ-8Y
(Superseded to Discontinued)

Note: CANADA MODELS

$

$

Not available

17

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

18

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

19

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

20

Echo 15680144330

FLYWHEEL

$135.99

$

Usually ships in 2-4 days

0

21

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 22 & 23

$11.99

$

In Stock, Qty 9

0

22

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

23

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

24

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

25

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

26

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

27

Echo 17500006560

CLUTCH ASSY

Note: INCLUDES ITEMS 28-30

$33.99

$

In Stock, Qty 6

0

28

Echo 17501805960

SPRING, CLUTCH

$2.49

$

In Stock, Qty 14

0

29

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

30

Echo 17501604920

BOSS, CLUTCH

$14.99

$

In Stock, only 1 left!

0

31

Echo 17505505360

HOUSING, CLUTCH

$57.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
