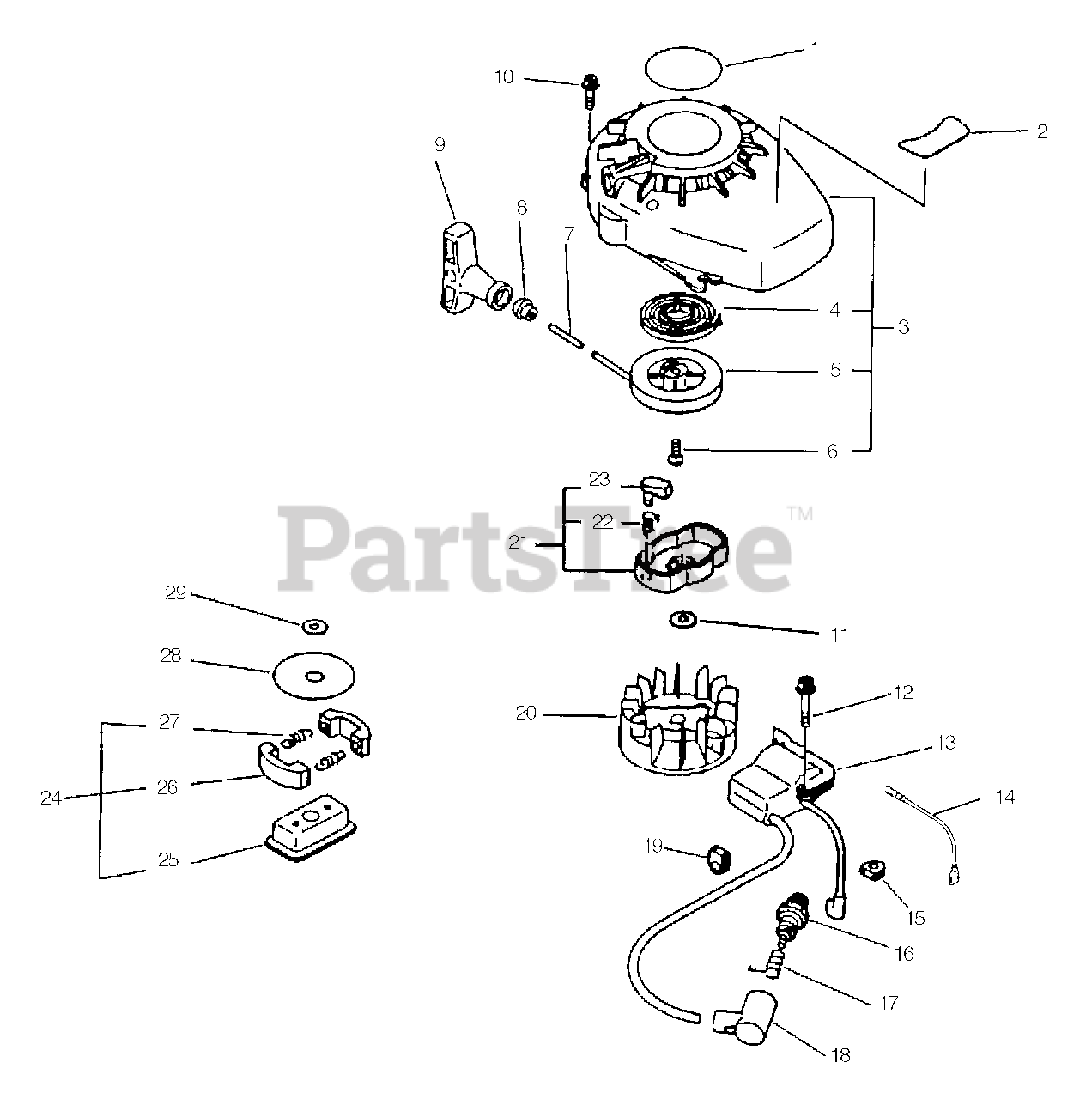

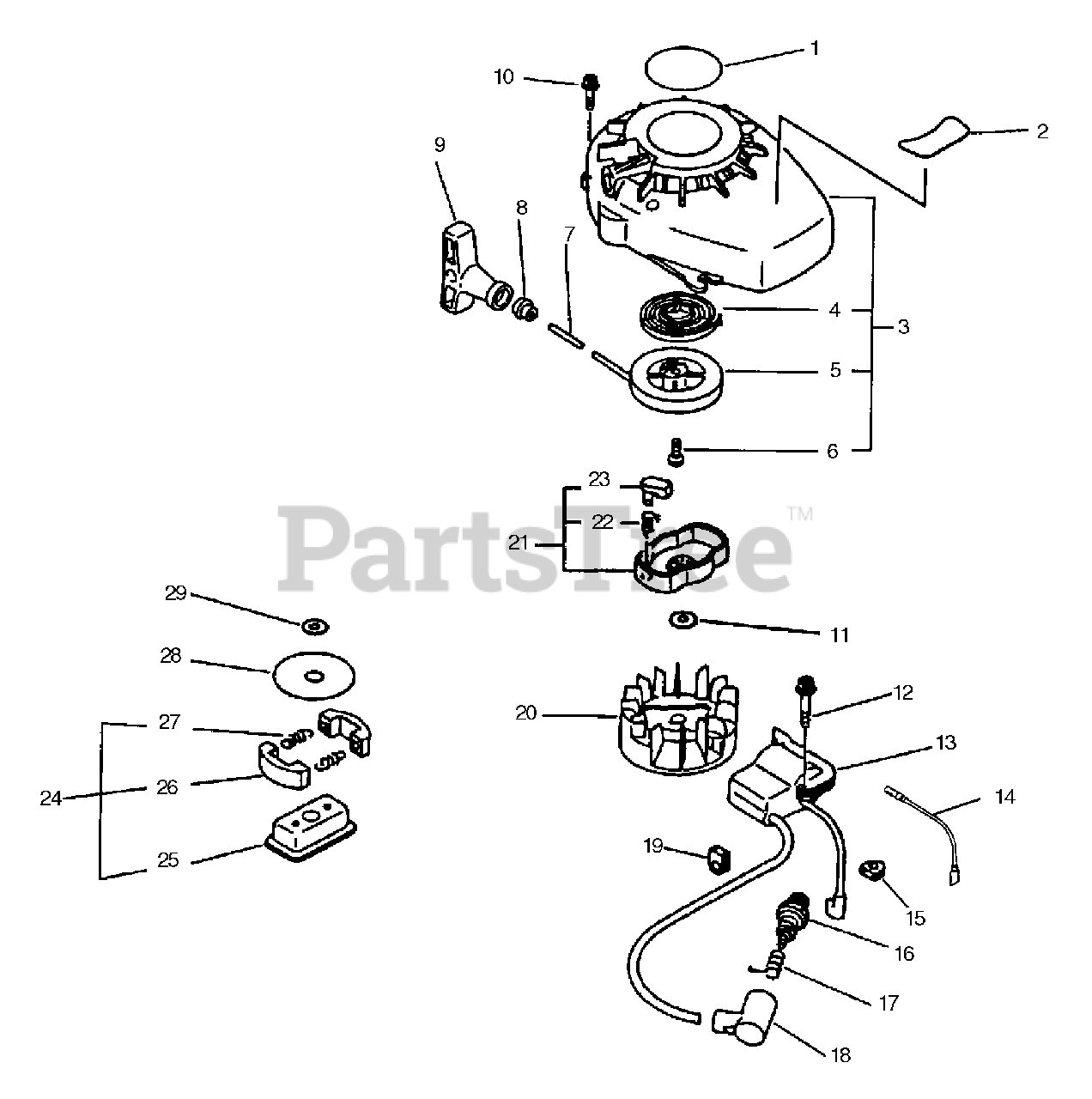

HC-1500 - Echo Hedge Trimmer (Type 2E) Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer (Type 2E)

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 89011506561

LABEL, HC-1500
(Superseded to Discontinued)

$

$

Not available

2

Echo 89016007760

LABEL - CAUTION
(Superseded to 89016007761)

$2.49

$

Usually ships in 2-4 days

0

2

Echo 89016007761

LABEL, CAUTION

Note: CANADA MODELS

$2.49

$

Usually ships in 2-4 days

0

3

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 4-9

$105.99

$

In Stock, only 1 left!

0

4

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

5

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 5

0

6

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

------------------

ROPE, STARTER 3.0×890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17722811120

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

10

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

11

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

Note: S/N 001001 - 542656

$

$

Not available

13

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 542657 & UP

$143.99

$

In Stock, only 1 left!

0

14

Echo 16202152830

LEAD
(Superseded to V485001080)

Note: S/N 542657 & UP

$4.49

$

In Stock, only 2 left!

0

15

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 9

0

16

Echo 99944500071

SPARK PLUG - BPM-7Y

$2.49

$

In Stock, Qty 10

0

16

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

16

Echo 15901712330

SPARK PLUG - RCJ-8Y
(Superseded to Discontinued)

Note: CANADA MODELS

$

$

Not available

17

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

18

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

19

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

20

Echo 15680144330

FLYWHEEL

Note: S/N 001001 - 542656

$135.99

$

Usually ships in 2-4 days

0

20

Echo 15680105360

FLYWHEEL

Note: S/N 542657 & UP

$105.99

$

Usually ships in 2-4 days

0

21

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 22 & 23

$11.99

$

In Stock, Qty 8

0

22

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

23

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

24

Echo 17500006560

CLUTCH ASSY

Note: (S/N 001001-571972). INCLUDES ITEMS 25 - 27

$33.99

$

In Stock, Qty 5

0

24

Echo A056000020

CLUTCH ASSY
(Superseded to 17500006560)

Note: (S/N 5719738 UP). INCLUDES ITEMS 25 - 27

$33.99

$

In Stock, Qty 5

0

25

Echo 17501604920

BOSS, CLUTCH

Note: S/N 001001 - 571972

$14.99

$

In Stock, only 1 left!

0

25

Echo A552000010

HUB, CLUTCH

Note: S/N 571973 & UP

$10.99

$

Usually ships in 2-4 days

0

26

Echo 17500905131

SHOE, CLUTCH

Note: S/N 001001 - 571972

$25.99

$

In Stock, only 2 left!

0

26

Echo A555000010

SHOE, CLUTCH
(Superseded to 17500006560)

Note: S/N 571973 & UP

$33.99

$

In Stock, Qty 5

0

27

Echo 17501805960

SPRING, CLUTCH

Note: S/N 001001 - 571972

$2.49

$

In Stock, Qty 14

0

27

Echo V451000010

SPRING, TENSION

Note: S/N 571973 & UP

$15.99

$

Usually ships in 2-4 days

0

28

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

29

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!
