HC-1500 - Echo Hedge Trimmer (Type 2E) Crankcase, Engine, Engine Cover Parts Diagram

Hedge Trimmer (Type 2E)

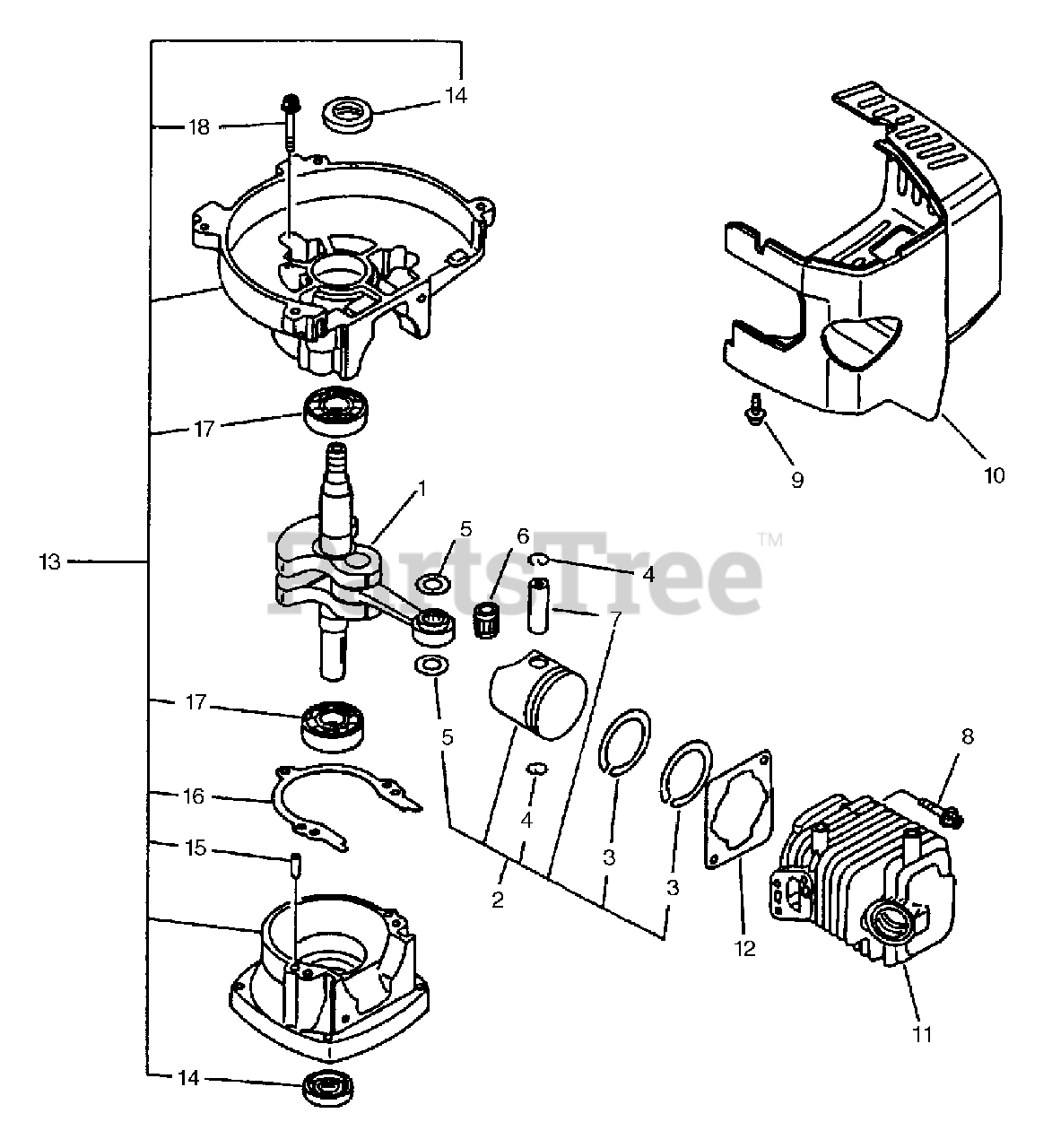

Crankcase, Engine, Engine Cover Parts Diagram

  • Title

1

------------------

CRANKSHAFT ASSY

Note: USE P/N SB1031

$

$

Not available

2

Echo 10000006961

PISTON KIT
(Superseded to 10000006962)

Note: INCLUDES ITEMS 3 - 7

$76.99

$

Usually ships in 2-4 days

0

3

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

4

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

5

Echo 10001408960

WASHER

$3.99

$

Usually ships in 2-4 days

0

6

Echo 10011305930

BEARING, NEEDLE - 8

$13.99

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

9

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10150606560

COVER, ENGINE

$19.99

$

Usually ships in 2-4 days

0

11

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

12

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT P/N 88900006760

$4.99

$

In Stock, Qty 9

0

13

------------------

CRANKCASE SET

Note: INCLUDES ITEMS 14 - 18, USE P/N SB1031

$

$

Not available

14

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 20+

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

16

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900006760

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

18

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

Echo SB1031

SHORT BLOCK -- SB1031
(Superseded to Discontinued)

$

$

Not available

Echo 88900006760

GASKET KIT

Note: ENGINE REPOWER. INCLUDES THE FOLLOWING:

$35.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: ENGINE REPOWER

$4.99

$

In Stock, Qty 9

0

------------------

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 4 left!

0

Echo 61041406560

GASKET, GEAR CASE

Note: ENGINE REPOWER

$1.99

$

In Stock, Qty 14

0
