HC-1500 - Echo Hedge Trimmer (Type 2E) Fuel System, Handles, Throttle, Stop Switch Parts Diagram

Hedge Trimmer (Type 2E)

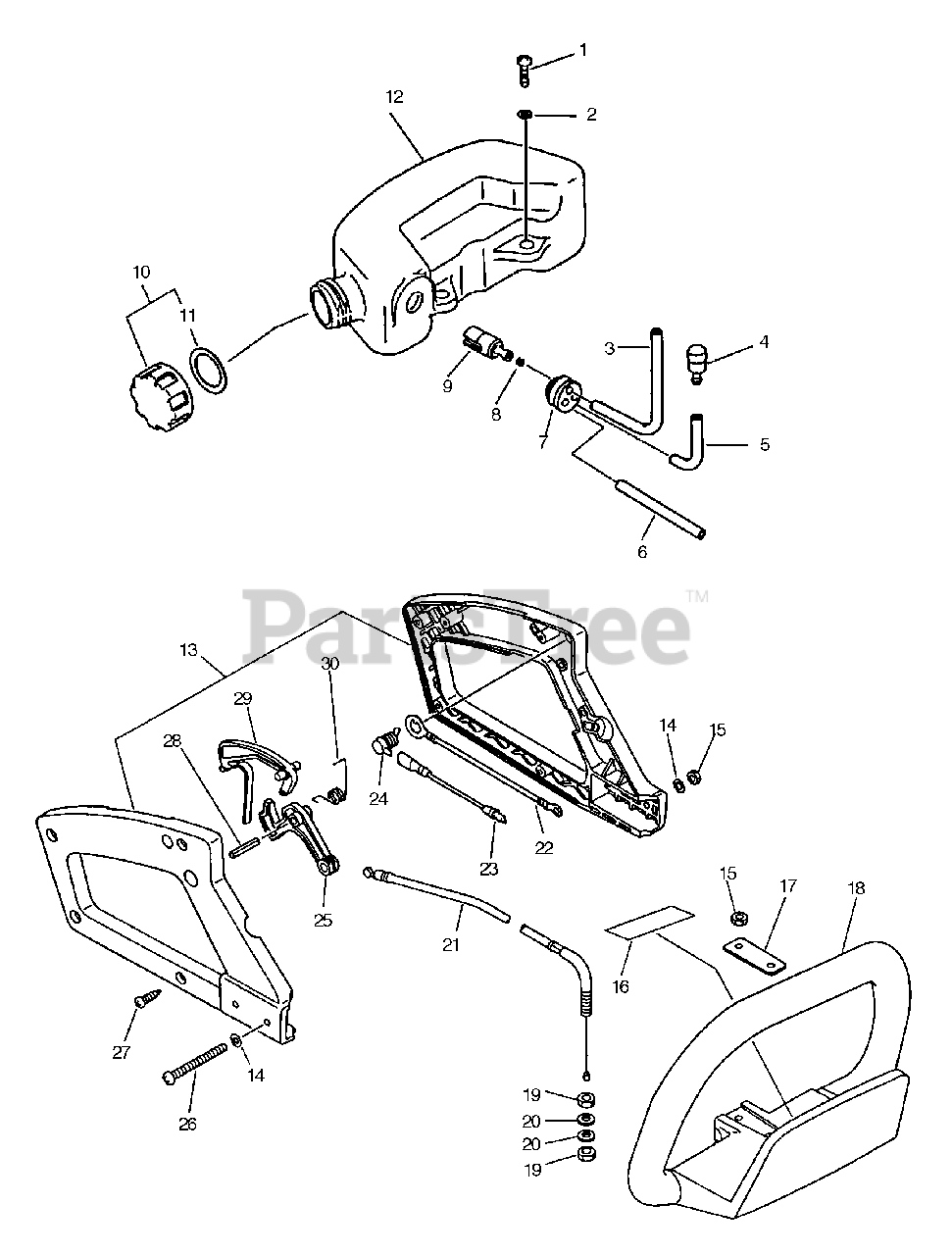

Fuel System, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 13201007530

PIPE, FUEL
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, only 2 left!

0

4

Echo A356000031

VENT ASSY

Note: INCLUDED IN KIT P/N 90010

$9.49

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 12

0

7

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

8

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

9

Echo 131205-07320

FILTER, FUEL

Note: INCLUDED IN KIT P/N 90008

$6.49

$

In Stock, Qty 20+

0

10

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLDS ITEM 18. INCLD IN KIT P/N 90010

$5.49

$

In Stock, only 2 left!

0

11

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

12

Echo 13100505360

TANK, FUEL
(Superseded to 13100505361)

$21.99

$

In Stock, only 2 left!

0

13

Echo 35110006560

HANDLE SET, REAR
(Superseded to 35110006561)

$41.99

$

In Stock, only 2 left!

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

16

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

16

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

17

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

18

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0

19

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

20

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 17800105360

CABLE, THROTTLE

$25.99

$

In Stock, only 3 left!

0

22

Echo 16201005360

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

23

Echo 16201405360

LEAD - GROUND

$4.99

$

Usually ships in 2-4 days

0

24

Echo 16340003460

SWITCH, ON-OFF

$9.99

$

In Stock, Qty 10

0

25

Echo 17801006560

TRIGGER, THROTTLE

$11.99

$

In Stock, Qty 11

0

26

Echo 90022005047

SCREW 5×47

$0.99

$

In Stock, Qty 16

0

27

Echo 90025504016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

29

Echo 17809006560

LOCKOUT, THROTTLE

$11.99

$

In Stock, Qty 16

0

30

Echo 17804315130

SPRING, THROTTLE RETURN

$2.49

$

In Stock, only 4 left!

0

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
